| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19038-0001 |
| Color: | Red |
| Series: | 19038 - InsulKrimp |
| Connector Type: | InsulKrimp, Snap Receptacle |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Brass, PVC |
| Insulation Material: | PVC |
| Orientation: | Straight |
| Insulation Type: | Full |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 4.064 µm |
| Contact Termination Plating Thickness: | 4.064 µm |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.25 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190380001 BRA-2156 |
| SKU: | MOL19038-0001 |
19038-0001
| Heilind Number: | MOL19038-0001 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19038-0001 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:
InsulKrimp Snap Plug Receptacle, for 18-22 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm
More >>Specifications
Detailed Description
Introducing the 19038-0001 InsulKrimp Snap Plug Receptacle, designed for 18-22 AWG wires. Constructed with durable PVC material in a vibrant red color, this female connector features a straight orientation with full insulation for secure and reliable performance. With a tin-plated brass contact, it offers a maximum voltage of 600 V, making it ideal for various electrical applications. Certified by CSA and UL for quality assurance, this RoHS-compliant connector is a must-have for professionals in need of high-quality crimp or compression terminals. Individually packaged for convenience, it ensures easy installation and reliable connectivity in any project. Upgrade your wiring setup with the 19038-0001 InsulKrimp Snap Plug Receptacle.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

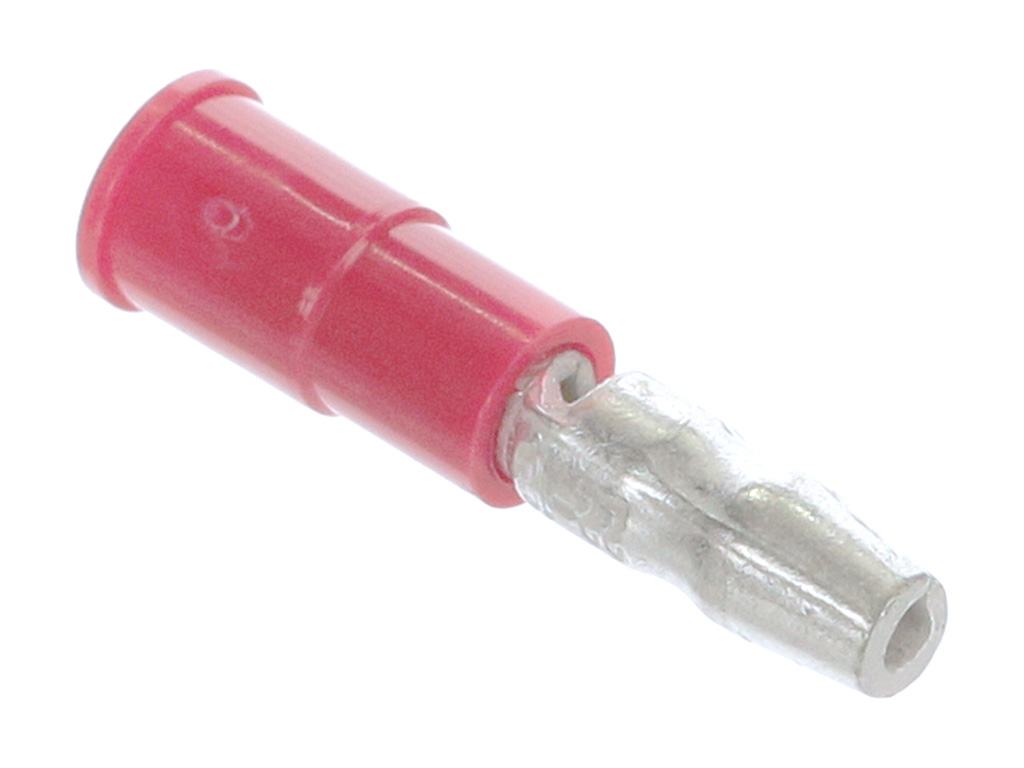

 | Molex 19034-0005 | InsulKrimp Snap Plug, for 18-22 AWG Wire, 22.61mm Length |  |
 | Molex 19039-0006 | Avikrimp Snap Plug Receptacle for 14-16 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm | |
 | Molex 19069-0042 | Krimptite Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 19069-0107 | Krimptite Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19069-0109 | Krimptite Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19070-0059 | InsulKrimp Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19193-0099 | VersaKrimp Ring Tongue Terminal for 10-12 AWG Wire | |
 | Molex 19193-0171 | VersaKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19221-0231 | Compression Style Ring Tongue Terminal for 4 AWG Wire, Stud Size 5/16 (M8), Tin Plated | |
 | Molex 39-01-2025 | Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2085 | Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2105 | Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2125 | Mini-Fit Jr. Receptacle Housing, Dual Row, 12 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-4031 | Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Natural | |
 | Molex 42816-0212 | 10.00mm Pitch Mini-Fit Sr. Receptacle Housing, Single Row, 2 Circuit, Black | |
 | Molex 64318-1011 | .635mm, 1.50mm, 2.80mm, Power CMC Receptacle, 28 Circuits, Left Wire Output, Black Coding, Mat Sealed | |
 | Molex 64320-1301 | CMC Wire Cap for 48 Circuits and 28 Circuits, CMC Receptacle Mat Sealed | |
 | Molex 64325-1345 | Single Wire Seals for CP 2.80 Terminals, Green | |
