| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19069-0209 |
| Series: | 19069 - Krimptite |
| Connector Type: | Krimptite |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 10 (M5) |
| Insulation Material: | None |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 10 AWG, 12 AWG, 4 - 6 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Contact Termination Plating: | Tin |
| Barrel Type: | Closed |
| Part Aliases: | 0190690209 C-128-10 |
| SKU: | MOL19069-0209 |
19069-0209
Specifications
Detailed Description

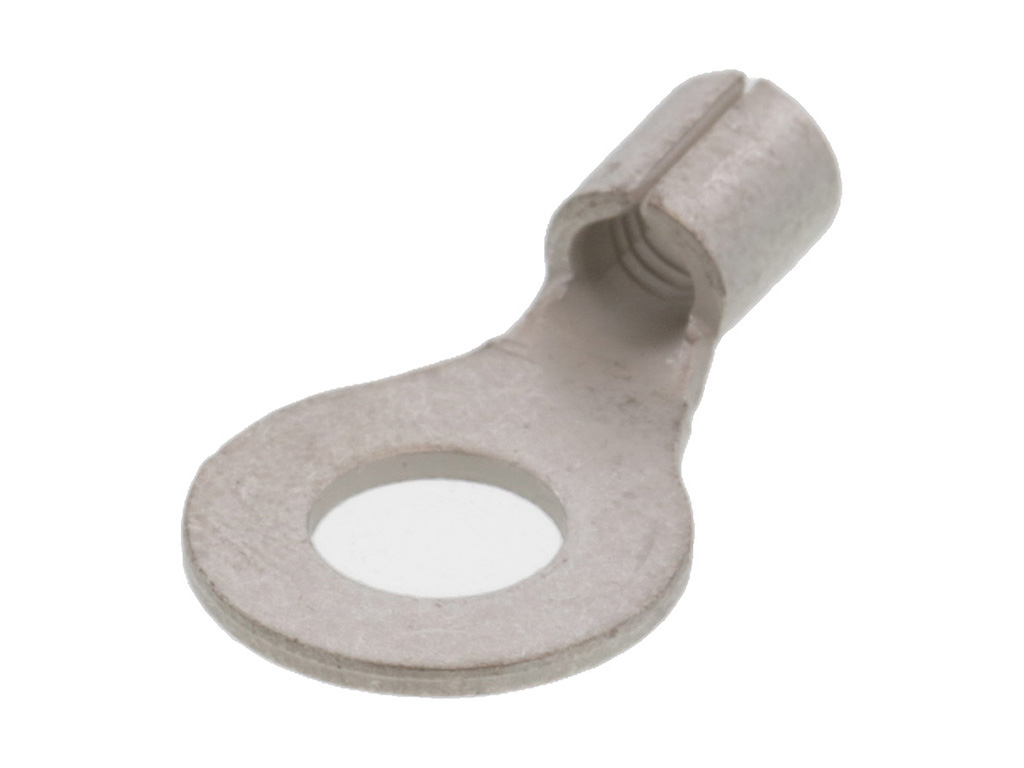

Introducing the 19069-0209 Krimptite Ring Tongue Terminal, a reliable solution for secure wire connections. Designed for 10-12 AWG wire with a stud size of 10 (M5), this terminal measures 19.94mm in length, offering ample space for easy installation. Featuring tin contact plating, it ensures excellent conductivity and corrosion resistance. With a crimp or compression termination method, it guarantees a strong and durable connection. CSA and UL certified, this terminal meets high safety standards. Perfect for various applications, it accommodates 12 AWG, 10 AWG, and 4-6 mm² wire sizes. RoHS compliant, it is environmentally friendly. Trust in the quality and performance of the 19069-0209 for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

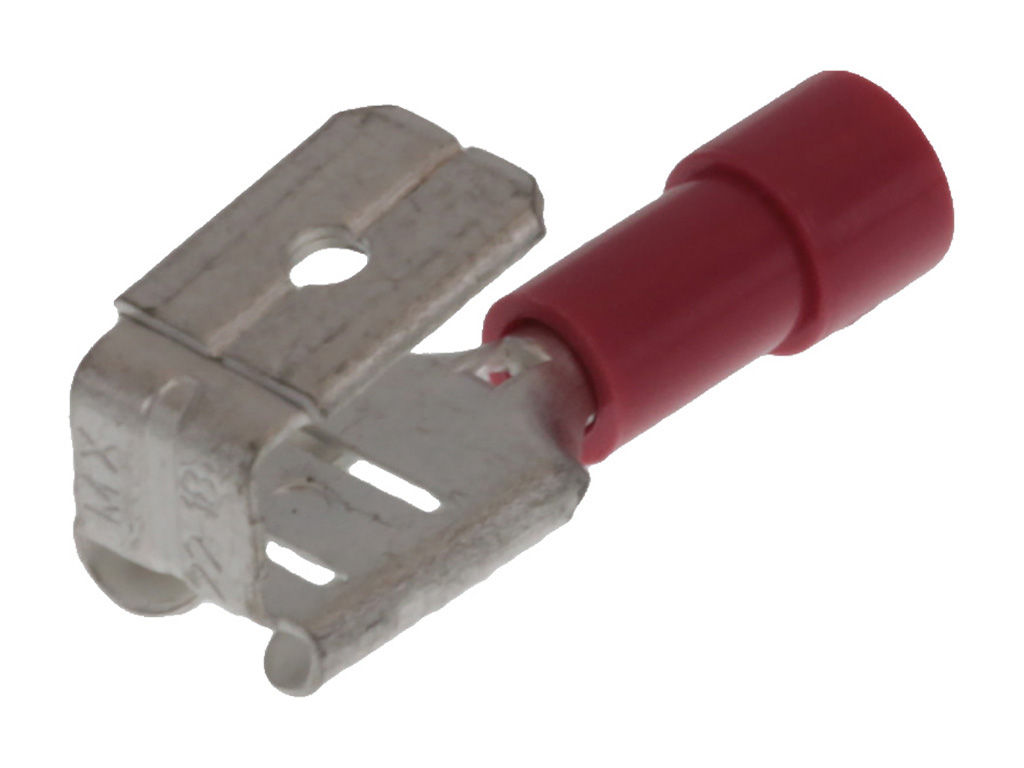

 | Molex 19011-0036 | InsulKrimp Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 18-22 AWG, Red Insulator, Reel |  |
 | Molex 19069-0219 | Krimptite Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 1/4 (M6), Length 24.18mm | |
 | Molex 19164-0013 | Perma-Seal Butt Splice for 18-22 AWG Wire | |
 | Molex 19164-0044 | Perma-Seal Butt Splice for 14-16 AWG Wire | |
 | Molex 19193-0167 | VersaKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19193-0216 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |
 | Molex 19193-0248 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |
 | Molex 19193-0264 | VersaKrimp Ring Tongue Terminal for 4 AWG Wire | |
 | Molex 34586-0001 | MX123 0.64mm Grommet Seal Plug | |
 | Molex 39-00-0038 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 84700-0003 | Dust Cover for Bayonet-Style Latch Connector, Black, with Black Nitrile Seal | |
 | Molex 93444-1104 | ML-XT Sealed 2 Circuit Receptacle Housing, Pre-Assembled with Small Rear Seal and Cover, Blue | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
