| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19069-0117 |
| Series: | 19069 - Krimptite |
| Connector Type: | Krimptite |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 10 (M5) |
| Insulation Material: | None |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 14 AWG, 16 AWG, 1.3 - 2 mm² |
| Contact Termination Plating: | Tin |
| Barrel Type: | Closed |
| Part Aliases: | 0190690117 BB-137-10T |
| SKU: | MOL19069-0117 |
19069-0117
Specifications
Detailed Description

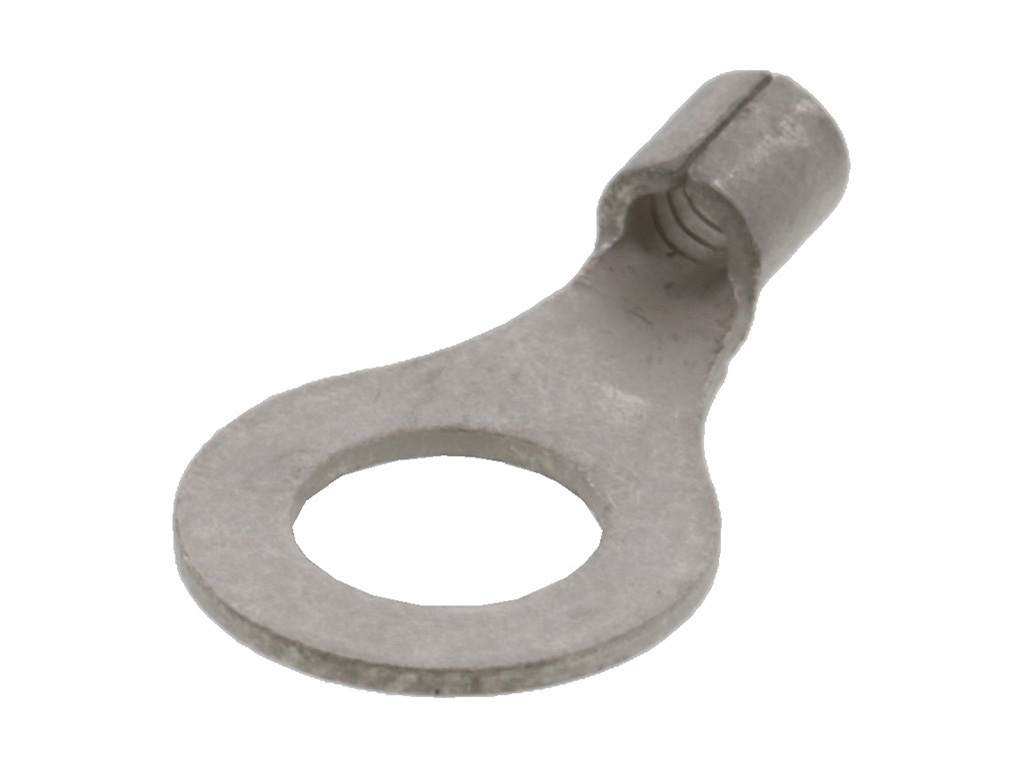

The 19069-0117 is a Krimptite Ring Tongue Terminal designed for secure and reliable connections with 14-16 AWG wires. Featuring a tin contact plating, this terminal ensures excellent conductivity. Its closed barrel design offers added protection. With a stud size of 10 (M5) and a wire size range of 1.3 - 2 mm², it is versatile for various applications. This terminal is RoHS compliant, making it environmentally friendly. Perfect for crimp or compression termination methods, it is a must-have for any project requiring a durable and high-performance connector.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-09-1081 | 2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 3 Circuits, Single Row, Natural |  |
 | Molex 19-09-2097 | 2.36mm Diameter Standard .093 Pin and Socket Plug Housing with Positive Latch, UL 94V-0, with Panel Mount, 9 Circuits | |
 | Molex 19009-0016 | VibraKrimp Quick Disconnect Flag, Female, for 14-16 AWG Wire, Metal Strip Carrier | |
 | Molex 19069-0038 | Krimptite Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 19069-0108 | Krimptite Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19069-0115 | Krimptite Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19069-0116 | Krimptite Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19069-0212 | Krimptite Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 10 (M5), Length 19.94mm, Mylar Tape Carrier | |
 | Molex 19069-0221 | Krimptite Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 1/4 (M6), Length 24.18mm, Mylar Tape Carrier | |
 | Molex 19070-0100 | InsulKrimp Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19070-0104 | InsulKrimp Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19071-0281 | InsulKrimp Ring Tongue Terminal for 2 AWG Wire | |
 | Molex 19073-0040 | Avikrimp Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 5 (M3), Length 19.80mm, Mylar Tape Carrier | |
 | Molex 19193-0167 | VersaKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19193-0215 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |
 | Molex 19193-0216 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |
 | Molex 50-84-1040 | 2.13mm Diameter MLX Power Crimp Housing Plug, 4 Circuits, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
