| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19018-0006 |
| Series: | 19018 - VibraKrimp |
| Connector Type: | Quick Disconnect, VibraKrimp |
| Gender: | Female |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Material: | Brass |
| Insulation Material: | None |
| Compatible Tab Width: | 6.35mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | None |
| Contact Mating Area Plating: | Tin |
| Polarized to Mate: | No |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.5 - 3.2 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Part Aliases: | 0190180006 AA-4176T |
| SKU: | MOL19018-0006 |

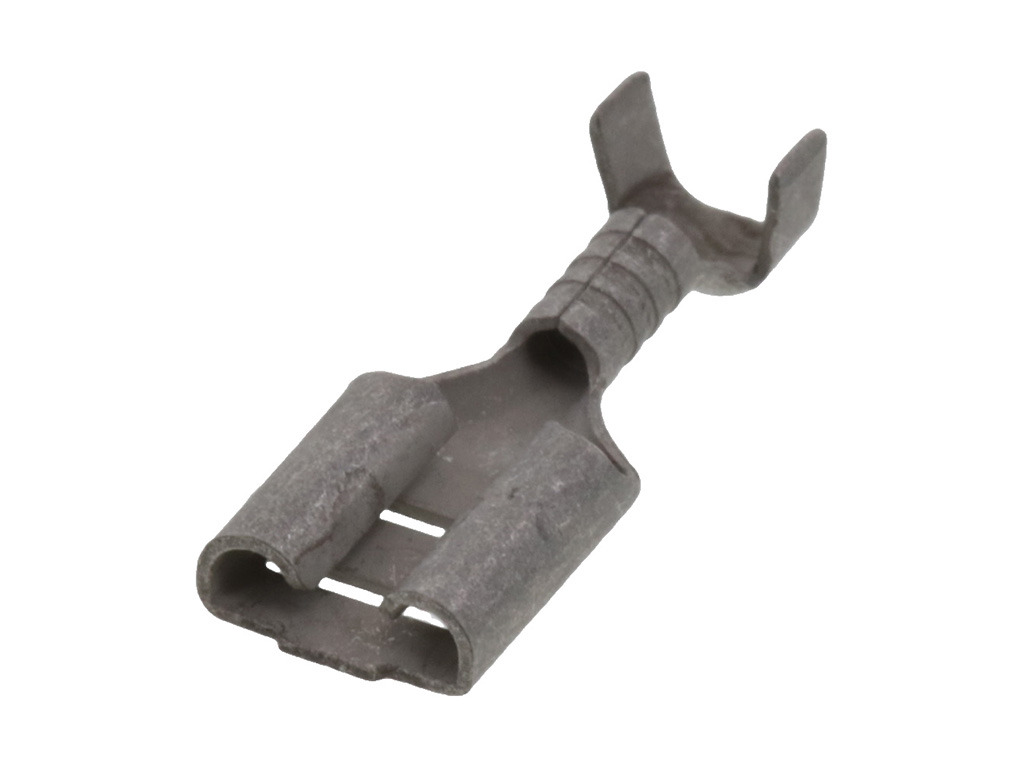

19018-0006
Specifications
Detailed Description
Introducing the 19018-0006 VibraKrimp Quick Disconnect, a female connector designed for 18-22 (0.80-0.35mm?) wire sizes with Mylar tape. Featuring a durable brass construction with tin plating, this connector ensures reliable conductivity. The 6.35 x 0.81mm tab accommodates various connections, while its straight orientation offers easy installation. With RoHS compliance and suitability for 22-18 AWG wires, this terminal guarantees both performance and environmental responsibility. Perfect for a wide range of applications, the VibraKrimp Quick Disconnect is a must-have for efficient and secure wire connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

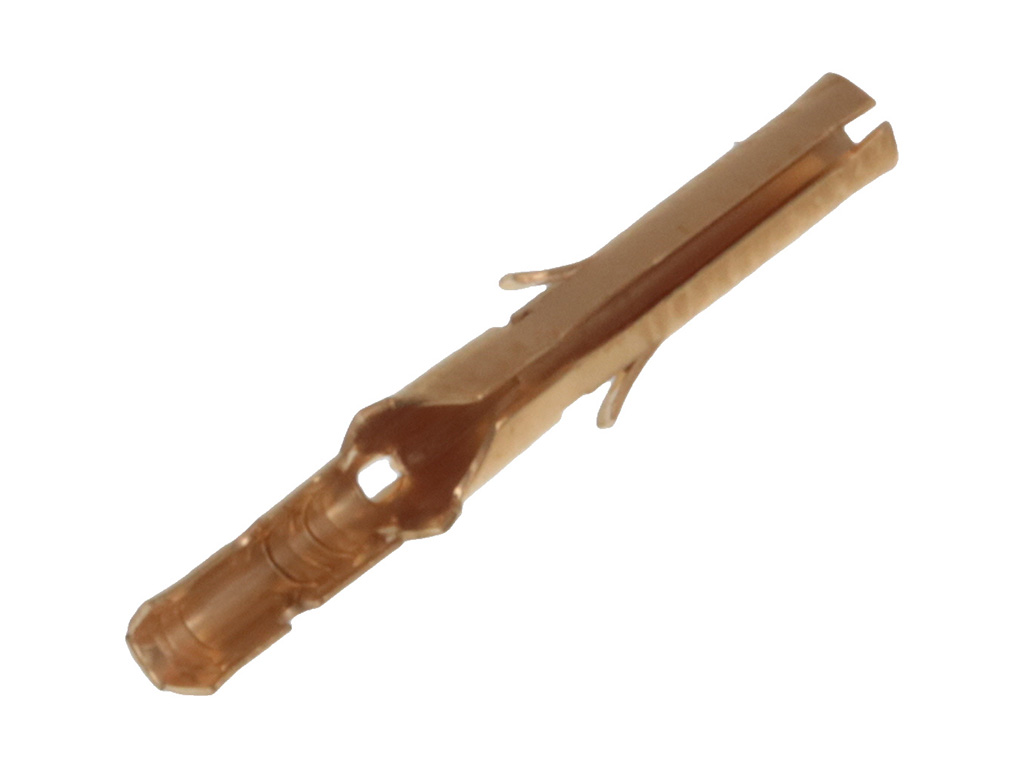

 | Molex 02-06-5135 | 1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Series 1855, Female, with 0.38 |  |
 | Molex 03-06-1023 | 1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, Natural | |

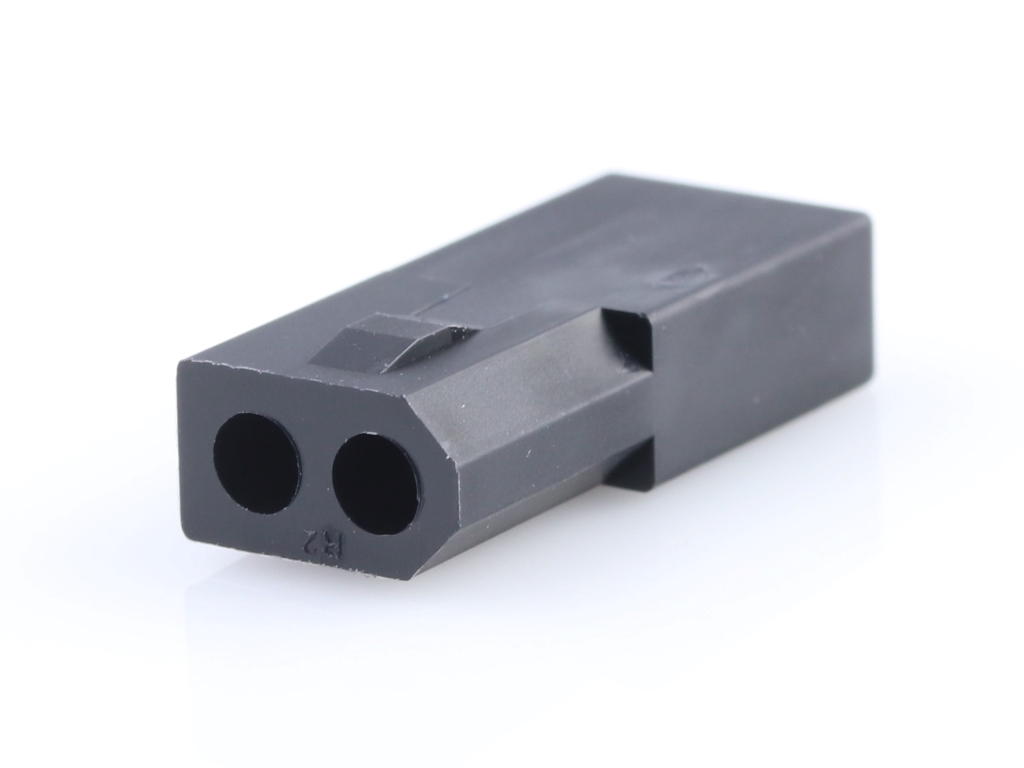

 | Molex 03-06-6023 | 1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, Black | |

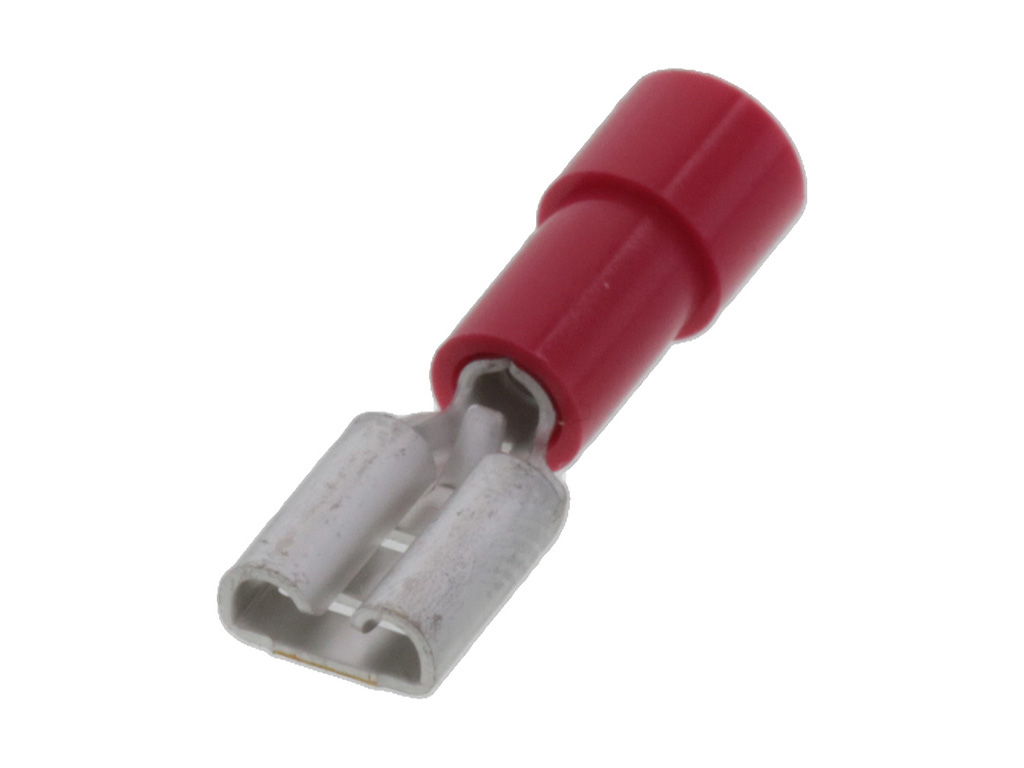

 | Molex 19017-0012 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Mylar Tape, Tab 4.75 x 0.51mm | |
 | Molex 19069-0038 | Krimptite Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 39-01-2041 | Mini-Fit Jr. Plug Housing, Dual Row, 4 Circuits, UL 94V-2, with Panel Mounting Ears, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19018-0006 |
| Other Names: | 0190180006 AA-4176T |
