19018-0015

ICC Number:	MOL19018-0015
Manufacturer:	Molex
Manufacturer Number:	19018-0015
Datasheet:	Datasheet
ECAD Model:

Description:

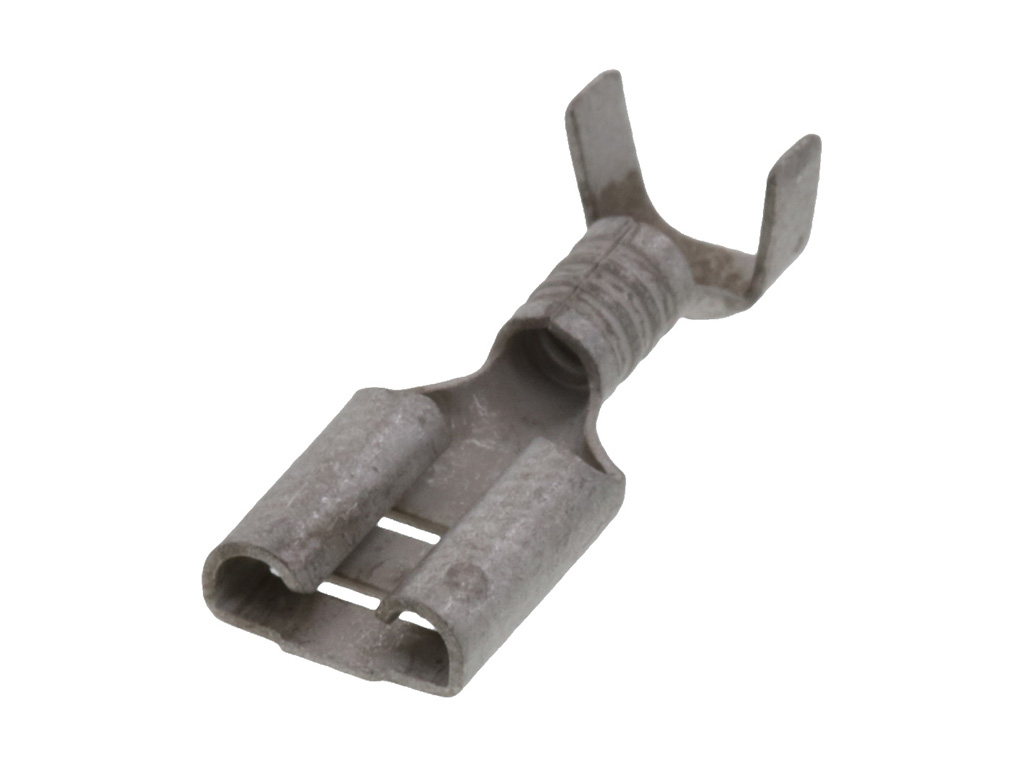

VibraKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm²) Wire, Mylar Tape, Tab 6.35 x 0.81mm

More >>

Specifications

Attribute	Value
Manufacturer:	Molex
Manufacturer Part Number:	Molex 19018-0015
Contact Material:	Brass
Contact Plating:	Tin
Overall Length:	0.802 in
Terminal Type:	Quick Disconnect
Wire Size:	16 to 14 AWG
Barrel Type:	Closed
Insulated:	No
Mounting Angle:	Straight
SKU:	MOL19018-0015

Detailed Description

The Molex 19018-0015 VibraKrimp Quick Disconnect is a female connector designed for 14-16 (2.00-1.30mm²) wires with Mylar tape insulation. Featuring a tab width of 6.35mm and thickness of 0.81mm, this straight orientation connector is made of brass with tin plating for enhanced conductivity. Suitable for 14-16 AWG wires or 1.3-2mm², it accommodates wire insulation diameters ranging from 2.1 to 3.7mm. With RoHS compliance and a durable construction, this connector ensures reliable performance in various applications. Please note, it is not glow wire capable and does not lock to mating parts.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 19001-0006	Avikrimp Quick Disconnect, Male, for 14-16 (2.00-1.30mm²), Box, Tab 6.35 x 0.81mm, Carton
	Molex 19003-0003	InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²), Mylar Tape, Tab 6.35 x 0.81mm, Salmon
	Molex 19007-0041	Flag InsulKrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mmÂ²) Wire, Metal Strip, Tab 6.35 x 0.81mm
	Molex 19035-0009	Avikrimp Snap Plug, for 16-14 AWG Wire, Box, 22.55mm Length, Carton
	Molex 19054-0086	InsulKrimp Ring Tongue Terminal for 16-14 AWG Vinyl, Stud Size 0.25"
	Molex 19070-0104	InsulKrimp Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 10 (M5), Length 23.39mm, Blue, Tape
	Molex 19073-0038	Avikrimp Ring Tongue Terminal for 22-18 AWG Wire, Stud Size 5 (M3), Length 20.60mm, Red, Carton
	Molex 19084-0009	VibraKrimp Open Barrel Star Ring, Tin-Plated Steel, for 18-14 AWG Wire Range, Stud Size 10 (M5)
	Molex 19115-0031	Avikrimp Snap Spade Terminal for 16-14 AWG Wire, Carton

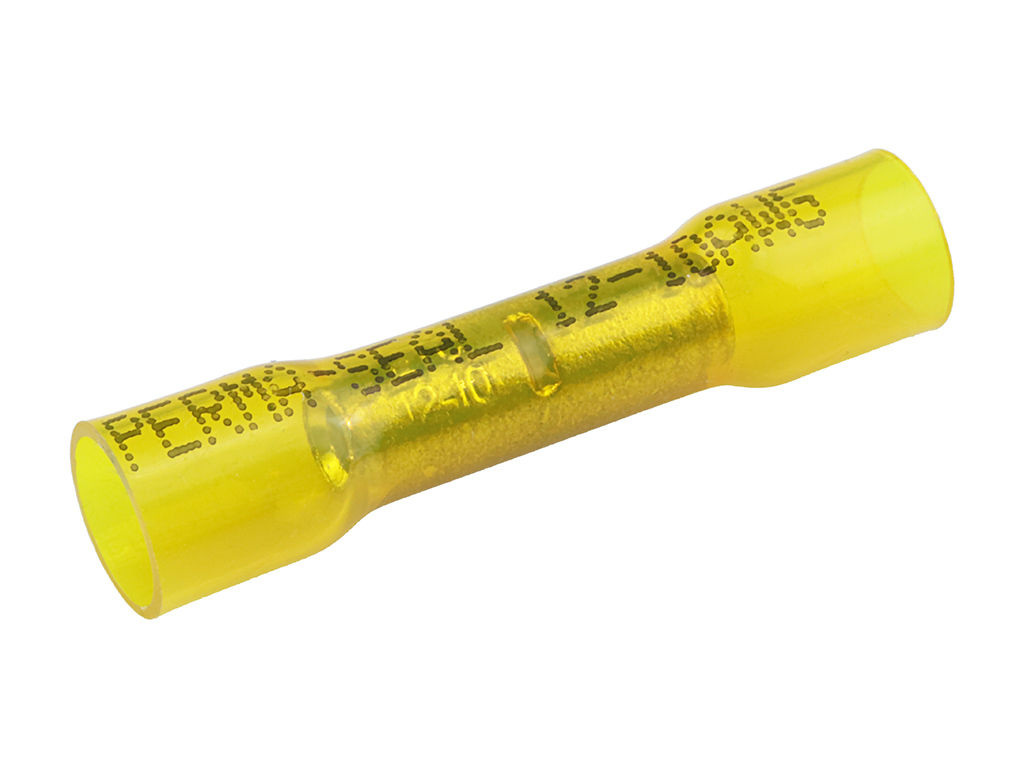

	Molex 19164-0056	Perma-Seal Butt Splice for 12-10 AWG Wire, Carton
	Molex 19193-0345	VersaKrimp Ring Tongue Terminal for 2/0 AWG Wire, Closed-Brazed Barrel, Stud Size 3/8" (M9), Carton

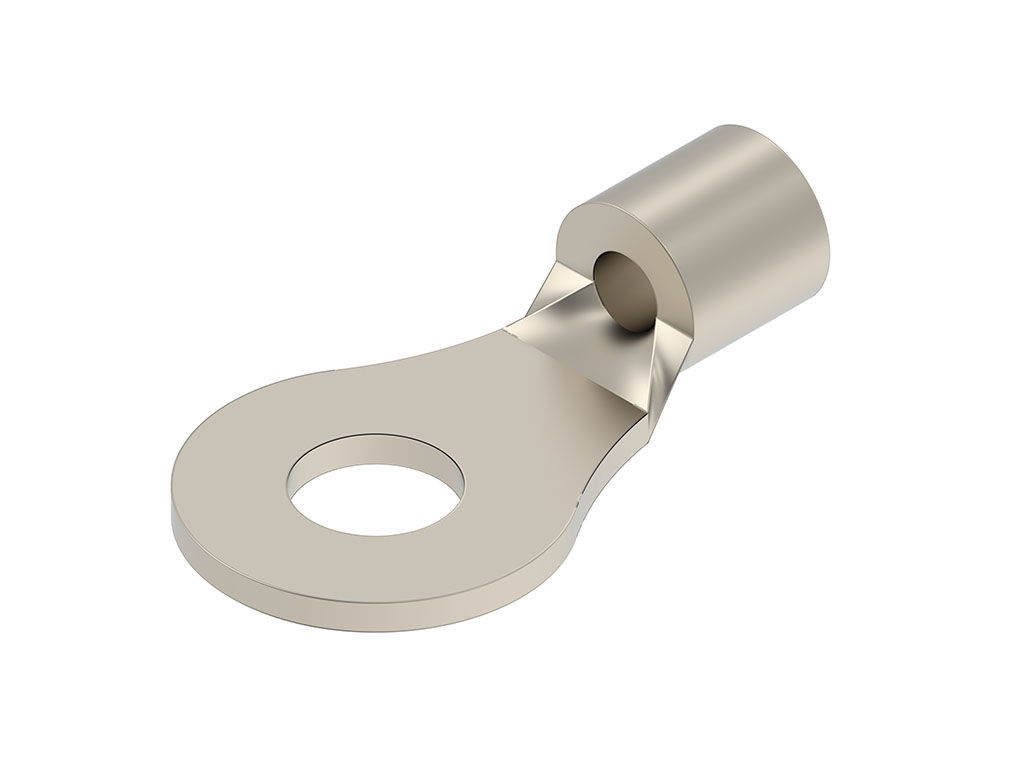

	Molex 19203-0048	Krimptite Temp-Term Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 6 (M3.5), Mylar Tape Carrier
	Molex 19215-0009	VersaKrimp Butt Splice for 22-18 AWG Wire, Carton

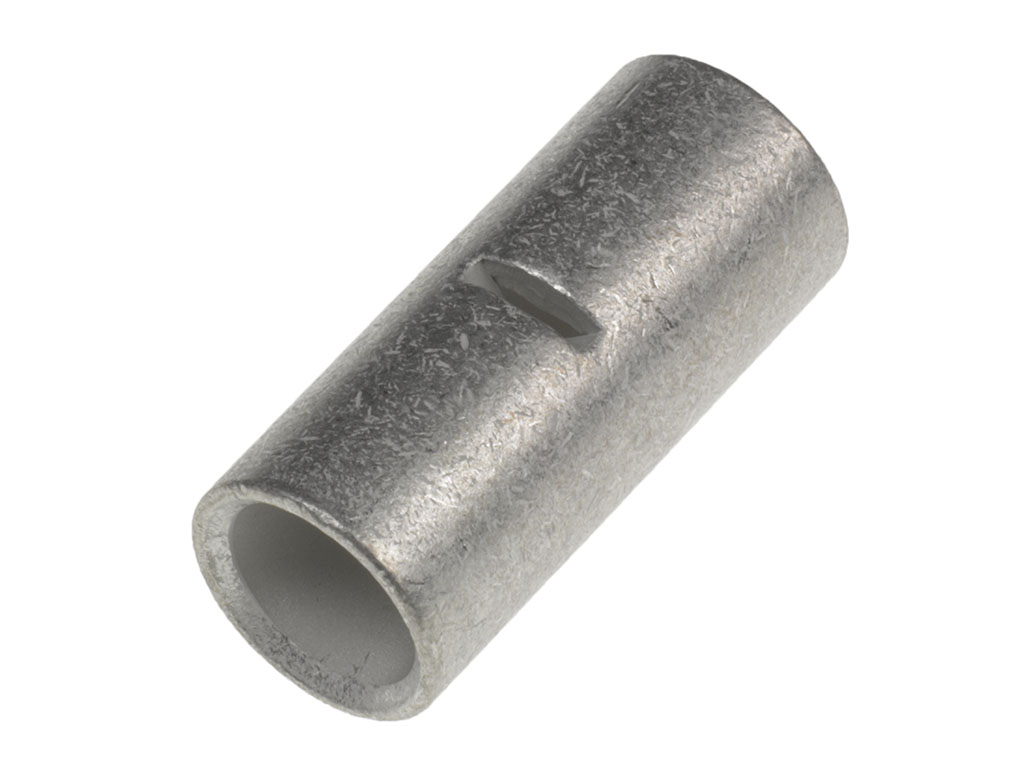

	Molex 19215-0047	VersaKrimp Butt Splice for 1/0 AWG Wire, Carton
	Molex 19221-0244	Compression Style Ring Tongue Terminal for 2/0 AWG Wire, Stud Size 3/8" (M9), Plated, Carton
	Molex 39-01-3043	Mini-Fit Jr. Plug Housing, Dual Row, 4 Circuits, UL 94V-2, without Panel Mounting Ears, Natural

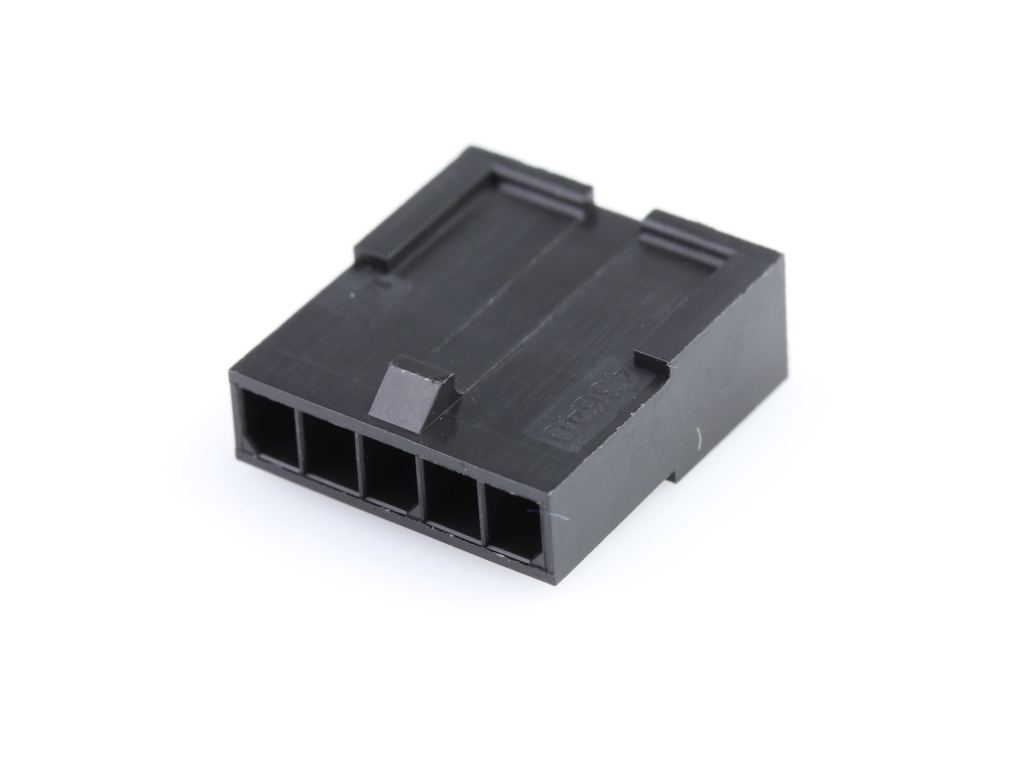

	Molex 43640-0501	Micro-Fit 3.0 Plug Housing, Single Row, 5 Circuits, UL 94V-0, Low-Halogen, Black

Product Change Notice

Effective Date	Description of Change				Download
02/18/2019	506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change.				Download
