| Attribute | Value |
|---|---|
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19003-0135 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Overall Length: | 0.78 in |
| Insulation Material: | Nylon |
| Terminal Type: | Quick Disconnect |
| Thickness: | 0.016 in |
| Wire Size: | 16 to 14 AWG |
| Barrel Type: | Closed |
| Insulation Color: | Blue |
| Insulated: | Yes |
| Voltage Rating: | 600 V |
| Operating Temperature: | -65 to 105 °C |
| Mounting Angle: | Straight |
| SKU: | MOL19003-0135 |
19003-0135
Specifications
Detailed Description
Introducing the 19003-0135 InsulKrimp Quick Disconnect Female Box Terminal, a reliable and versatile solution for your electrical connections. This blue-colored terminal features a 4.75 x 0.81mm tab, constructed with brass contacts plated with tin for enhanced conductivity and corrosion resistance. With a voltage rating of 600V and UL agency certification E79133, it ensures safety and performance in various applications. The nylon and brass construction, along with full insulation, offers durability and protection. Suitable for 14-16 AWG wires, this RoHS-compliant terminal is ideal for environmentally conscious projects. Whether for industrial machinery or automotive systems, this terminal guarantees secure and efficient wire termination. Upgrade your connectivity with the 19003-0135 InsulKrimp Quick Disconnect Female Box Terminal.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-04-5124 | 2.54mm SL Interim Clip, 12 Circuits, Polarized |  |
 | Molex 19003-0040 | InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm²), Tab 6.35 x 0.81mm, Blue, Carton | |

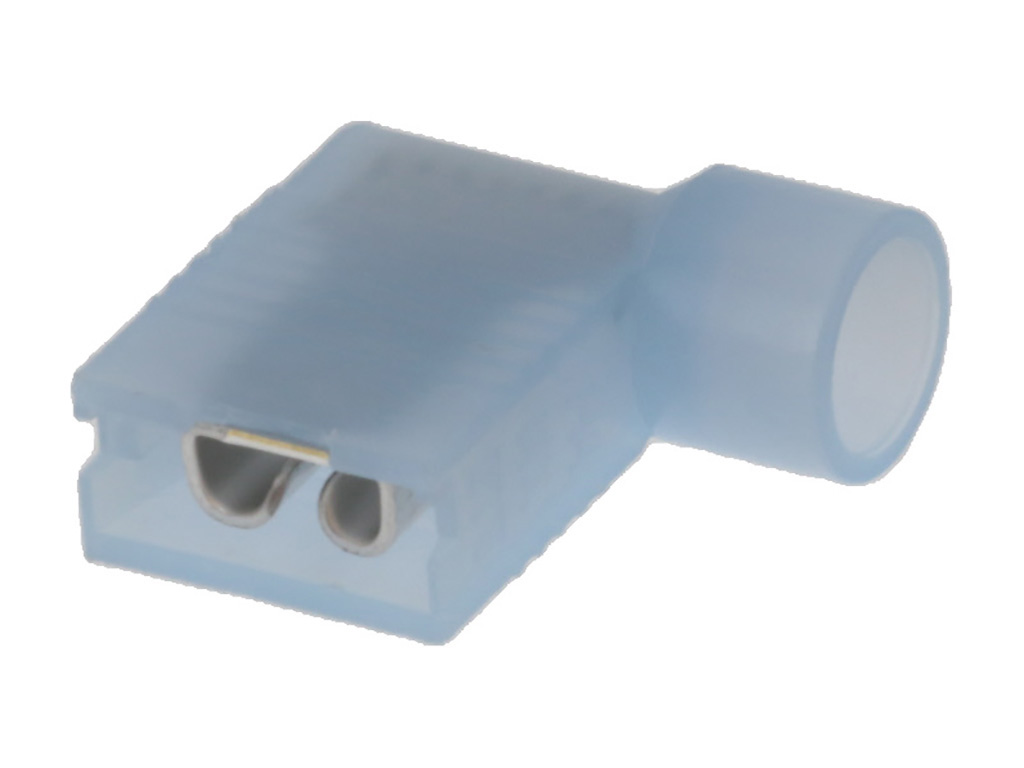

 | Molex 19007-0036 | Flag InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm²) Wire, Mylar Tape, Tab 4.75 x 0.81mm | |
 | Molex 19070-0040 | InsulKrimp Ring Tongue Terminal for 22-18 AWG Wire, Stud Size 5-6 (M3-3.5), Length 20.50mm, Red, Carton | |
 | Molex 19070-0075 | InsulKrimp Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 1/4" (M6), Length 26.97mm, Blue, Carton | |
 | Molex 19070-0086 | InsulKrimp Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 8 (M4), Length 22.10mm, Blue, Carton | |
 | Molex 19073-0077 | Avikrimp Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 1/4" (M6), Length 27.36mm, Blue, Mylar Tape Carrier | |
 | Molex 19606-0002 | InsulKrimp Quick Disconnect, Female, for 10-12 (5.26-3.30mm²), Tab 6.35 x 0.81mm, Yellow, Carton | |
 | Molex 39-01-2061 | Mini-Fit Jr. Plug Housing, Dual Row, 6 Circuits, UL 94V-2, with Panel Mounting Ears, Natural | |
 | Molex 39-01-2120 | Mini-Fit Jr. Receptacle Housing, Dual Row, 12 Circuits, UL 94V-2, Natural | |

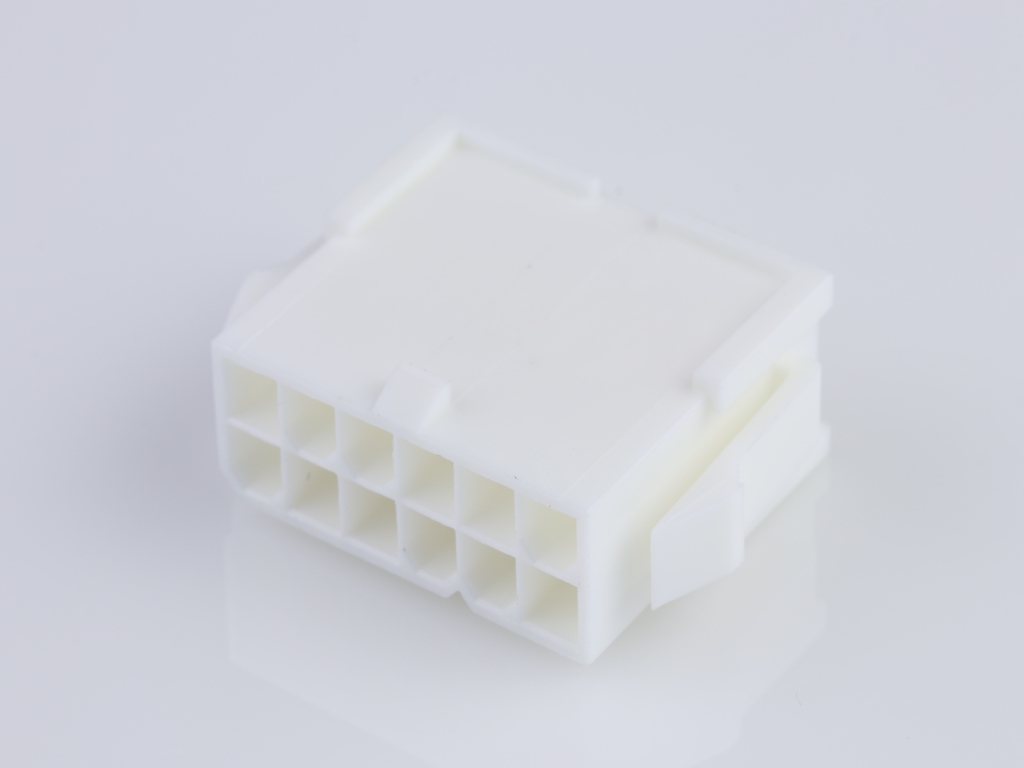

 | Molex 39-01-2126 | Mini-Fit Jr. Plug Housing, Dual Row, 12 Circuits, UL 94V-0, with Panel Mounting Ears, Natural | |
 | Molex 39-01-3049 | Mini-Fit Jr. Plug Housing, Dual Row, 4 Circuits, UL 94V-0, without Panel Mounting Ears, Natural | |
 | Molex 42878-6218 | Modular Jack, Vertical, Low Profile, 6/6 | |
 | Molex 43645-0200 | Micro-Fit 3.0 Receptacle Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
