| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19002-0004 |
| Color: | Red |
| Series: | 19002 - Avikrimp |
| Connector Type: | Avikrimp, Quick Disconnect |
| Gender: | Female |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 300 V |
| Material: | Brass |
| Insulation Material: | Nylon (PA) |
| Compatible Tab Width: | 6.35mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | Full |
| Operating Temperature Range: | -65 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Polarized to Mate: | No |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.17 mm |
| Glow Wire Capable: | Yes |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190020004 AA-5261Z |
| SKU: | MOL19002-0004 |
19002-0004
Specifications
Detailed Description
Introducing the 19002-0004 Avikrimp Fully Insulated Quick Disconnect in vibrant Red, designed for seamless connectivity in electrical applications. This Female connector accommodates 18-22 AWG wires with precision, featuring a durable Brass construction with Tin plating for enhanced conductivity. The Nylon (PA) insulation ensures safe and reliable usage, even in harsh environments with an operating temperature range of -65 to 105 °C. With a voltage rating of 300 V and compatibility with 6.35mm wide tabs, this connector guarantees efficient performance. Its straight orientation and full insulation make it ideal for various industrial and commercial settings. RoHS compliant and glow-wire capable, the 19002-0004 is a trusted solution for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-09-1032 | 2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 3 Circuits, Single Row, Natural |  |
 | Molex 16-02-0103 | SL Crimp Terminal, Series 70058, Female, 24-22 AWG, with 0.38µm Selective Gold (Au) Plated Contact | |
 | Molex 172253-7023 | Cut Strip - Ultra-Fit Tangless Crimp Terminal, Female, Tin (Sn) Plating, 16-18 AWG | |
 | Molex 19001-0007 | Avikrimp Quick Disconnect, Male, for 14-16 (2.00-1.30mm?), Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19002-0046 | Avikrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Metal Strip, Tab 6.35 x 0.81mm | |
 | Molex 19003-0001 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Box, Tab 6.35 x 0.81mm | |
 | Molex 19006-0003 | Flag Avikrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19069-0036 | Krimptite Ring Tongue Terminal for 18-22 AWG Wire | |

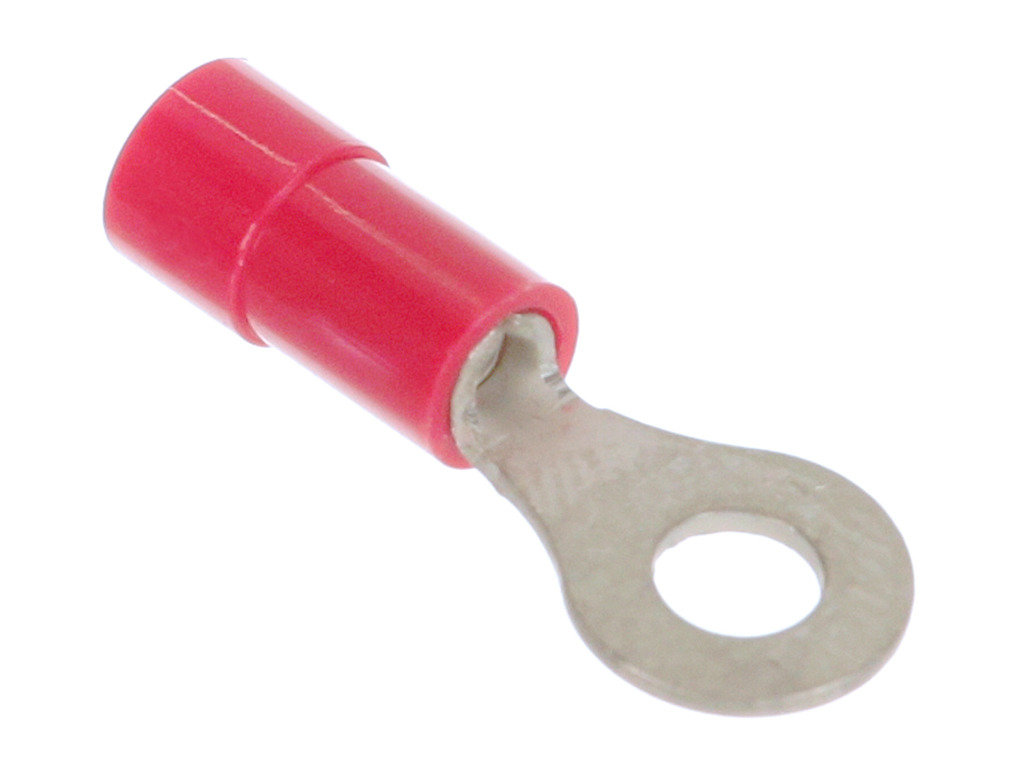

 | Molex 19070-0011 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 19073-0172 | Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 10 (M5), Length 27.71mm, Mylar Tape Carrier | |
 | Molex 19115-0047 | Avikrimp Snap Spade Terminal for 10-12 AWG Wire, Tape and Reel, Stud Size 8 (M4) | |

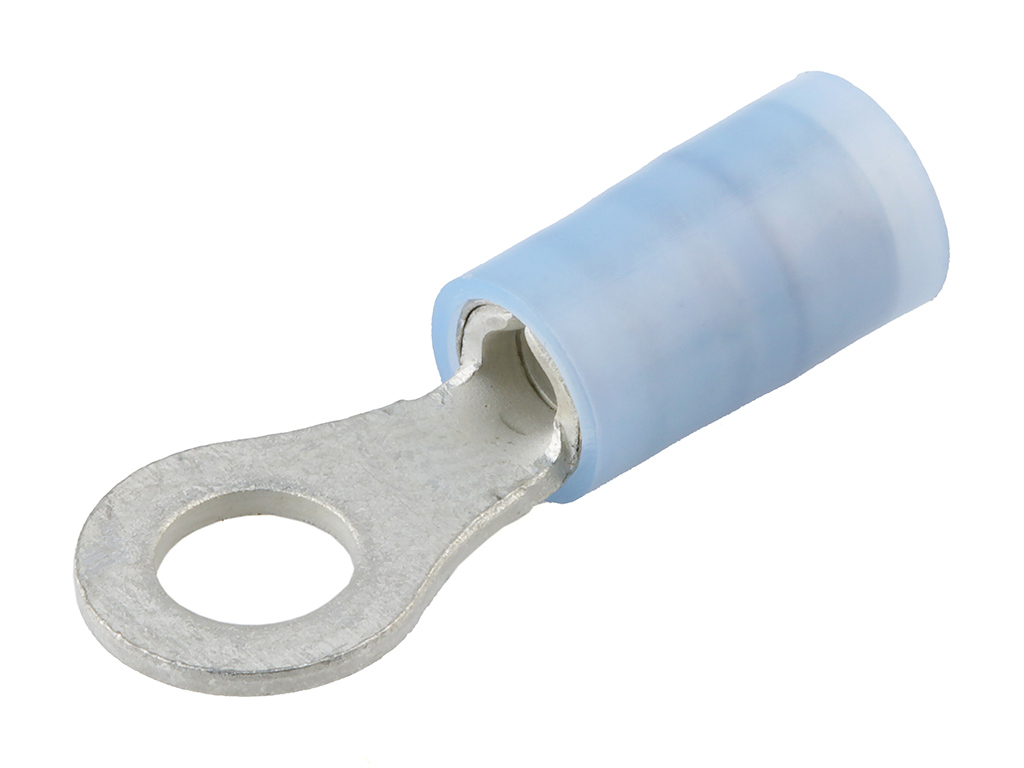

 | Molex 19324-0008 | Avikrimp Metric Ring Terminal for Stud Size 8 (M4), Insulated Barrel | |
 | Molex 19600-1300 | Avikrimp Fully Insulated Female Quick Disconnect | |
 | Molex 22-01-3037 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 3 Circuits, Natural | |
 | Molex 35156-0500 | 3.96mm Pitch Wire-to-Board Housing: Positive Locking, 5 Circuits, Natural | |
 | Molex 36799-0001 | 1.2mm MX120G Female Crimp Terminal, Grip Code M | |
 | Molex 50802-8000 | 2.50mm Pitch Crimp Terminal, Female, Phosphor Bronze, Reel | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
| 05/30/2016 | 500468 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download | |||
