| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 173113-0073 |
| Series: | 173113 |
| Number of Rows: | 3 |
| Termination Method: | Crimp |
| IP Rating: | IP20 |
| Shell Plating: | Nickel |
| Orientation: | Straight |
| Shell Material: | Steel |
| Wire Size: | 22 AWG, 24 AWG, 26 AWG, 28 AWG |
| Product Name: | FCT Products |
| Part Aliases: | 1731130073 CT09-15S7 |
| SKU: | MOL173113-0073 |
| Supplier Product: | D-Sub Connector / FCT Products |
173113-0073
| Heilind Number: | MOL173113-0073 |
| Manufacturer: | Molex |
| Manufacturer Number: | 173113-0073 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the FCT High-Density D-Sub Crimp Housing, a must-have for your connectivity needs. This female housing, part of the 173113 series, features 15 circuits arranged in three rows for efficient cable termination via crimping. With a durable steel shell plated with nickel, it offers reliable performance in various applications. The straight orientation and compact design make it ideal for high-density installations. Accommodating wire sizes ranging from 24 to 28 AWG, this housing ensures a secure connection. While not RoHS compliant, it is a dependable choice for non-restricted environments. Stocked as part of the Power Connectors mCampaign, the FCT High-Density D-Sub Crimp Housing is a versatile and essential component in your connectivity setup.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172704-0100 | FCT Metal Backshell for D-Sub Connector, Shell Size 3, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws |  |
 | Molex 172704-0104 | FCT Metal Backshell for D-Sub Connector, Shell Size 5, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 172704-0143 | FCT High Power Contact, Male, Straight, Crimp, 0.8µm Gold Mating Plating, 0.2µm Gold Termination Plating, 20A, 14-12 AWG | |
 | Molex 172704-0163 | FCT Standard-Density D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, 200 Mating Cycles, 9 Circuits | |
 | Molex 173107-0062 | FCT Mixed Layout D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Tin-plated Shell without Dimples, 9 Circuits, 5 Signal Contacts Loaded | |
 | Molex 173112-0225 | FCT Machined Contact, Male, Crimp, 1.3µm Gold Plating, 28-22 AWG | |
 | Molex 173112-0228 | HPD High-Density Machined Crimp Contact, Female, 1.30 | |
 | Molex 173113-0002 | FCT High-Density D-Sub Crimp Housing, Male, 15 Circuits | |

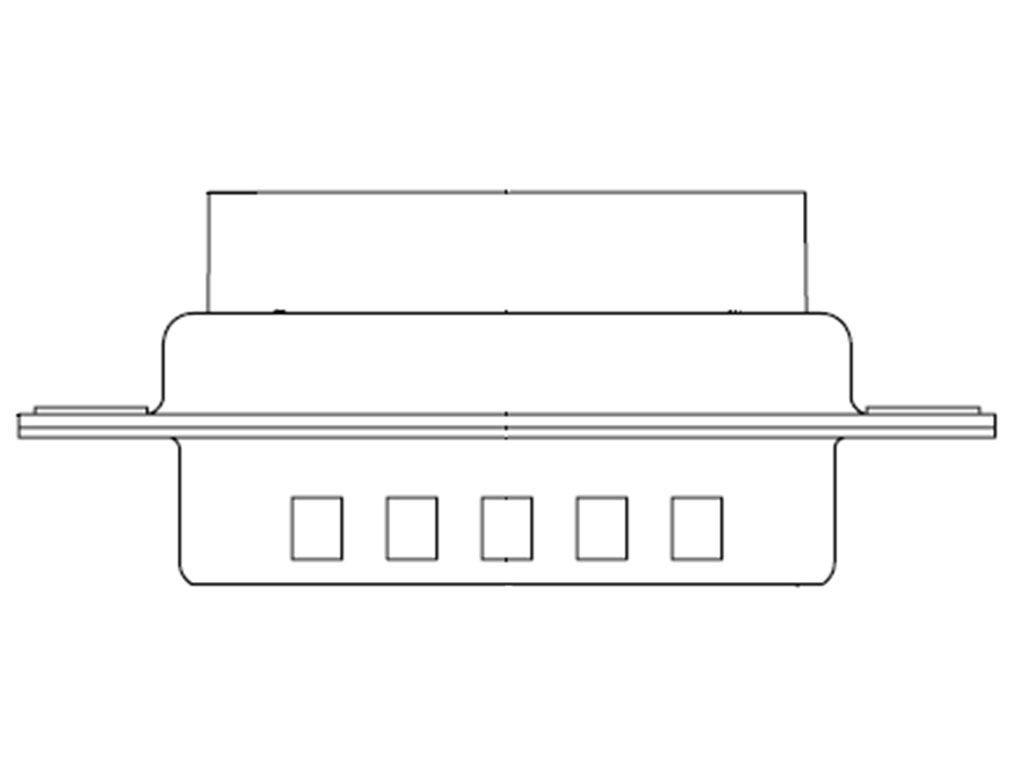

 | Molex 173113-0021 | FCT High-Density D-Sub Crimp Housing, Male, 44 Circuits | |

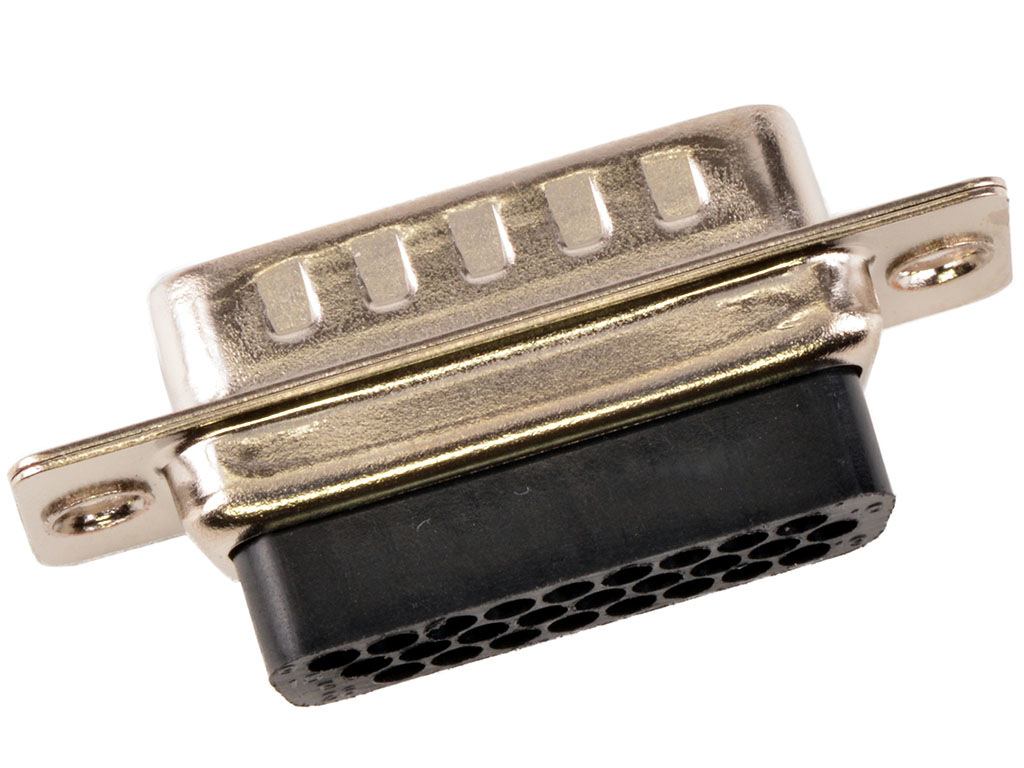

 | Molex 173113-0071 | FCT High-Density D-Sub Crimp Housing, Male, 26 Circuits | |

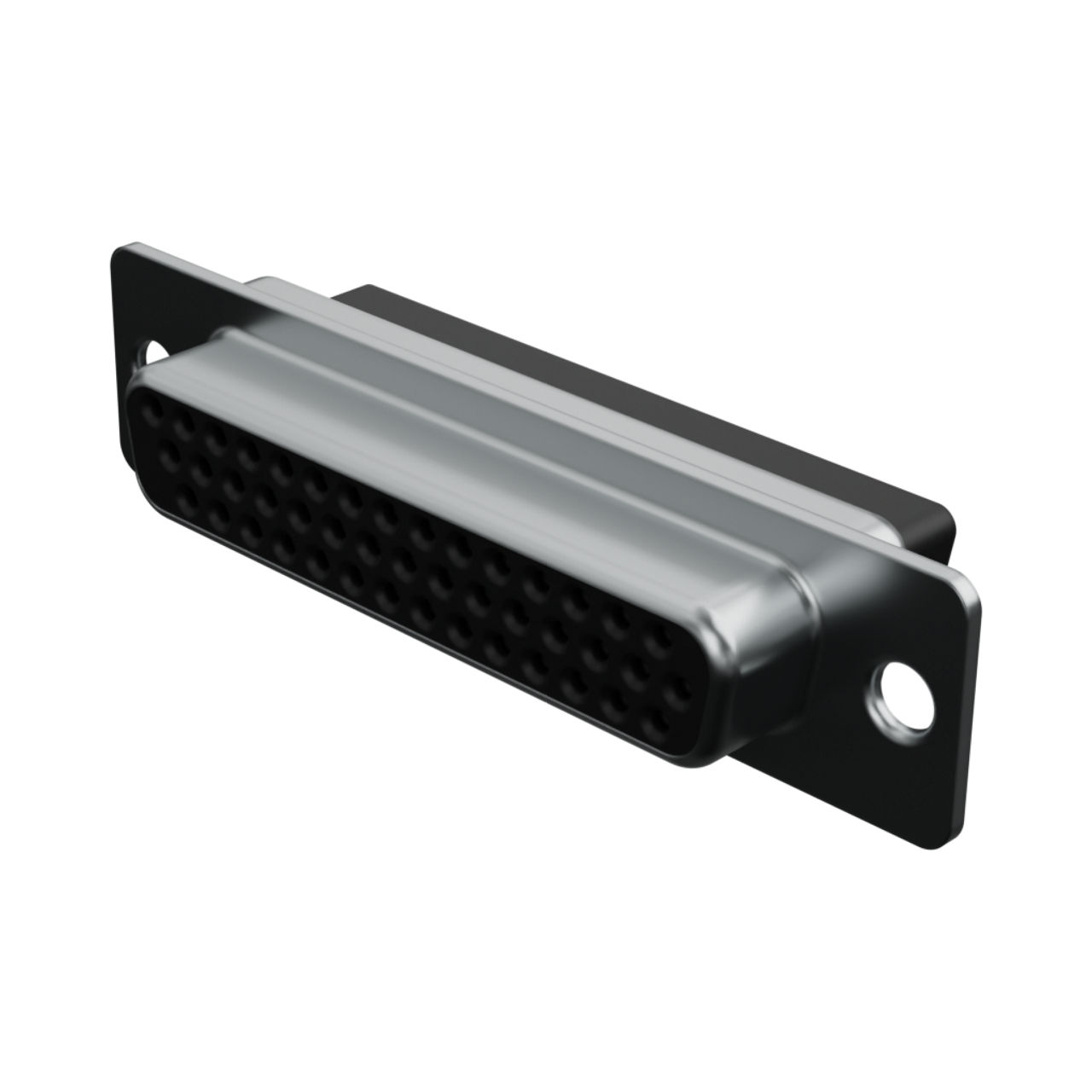

 | Molex 173113-0075 | FCT High-Density D-Sub Crimp Housing, Female, 44 Circuits | |
 | Molex 22-01-3037 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 3 Circuits, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/24/2023 | 513237 - Packaging Method/Quantity Changing. Delivery Unit ( DU) change due to standardization of the Product packaging. This change is a corrective action to meet product and process quality compliance. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 173113-0073 |
| Other Names: | 1731130073 CT09-15S7 |
