| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 173112-0228 |
| Specification Type: | High Density |
| Series: | 173112 |
| Amperage: | 5 A |
| Gender: | Female |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Contact Type: | Machined Crimp Contact |
| Operating Temperature Range: | -55 - 130 °C |
| Contact Mating Area Plating: | Gold over Nickel |
| Contact Mating Area Plating Thickness: | 1.3 µm |
| Type: | High Density |
| Contact Termination Plating Thickness: | 1.300 µm |
| Wire Size: | 24 AWG, 26 AWG, 28 AWG |
| Product Name: | FCT Products |
| Part Aliases: | 1731120228 FK22SL-13V-5783 |
| SKU: | MOL173112-0228 |
173112-0228
| Heilind Number: | MOL173112-0228 |
| Manufacturer: | Molex |
| Manufacturer Number: | 173112-0228 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the HPD High-Density Machined Crimp Contact, a reliable solution for your power connector needs. This female contact, part of the 173112 series, is designed for high-density applications with a low amperage of 5A. Constructed from durable copper alloy and featuring a gold over nickel plating, it ensures excellent conductivity and corrosion resistance, even in harsh environments. The machined crimp design guarantees secure wire termination, accommodating 24-28 AWG wires with ease. With a wide operating temperature range of -55 to 130°C and full RoHS compliance, this contact is suitable for various industrial settings. Upgrade your D-Sub and D-Ribbon connectors with the FCT Products 1731120228 for reliable performance.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172704-0078 | HPD Standard-Density D-Sub Connector, Solder Pot, with Machined Female Contacts, Panel Mount, 9 Circuits |  |
 | Molex 172704-0100 | FCT Metal Backshell for D-Sub Connector, Shell Size 3, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 172704-0104 | FCT Metal Backshell for D-Sub Connector, Shell Size 5, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 173107-0062 | FCT Mixed Layout D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Tin-plated Shell without Dimples, 9 Circuits, 5 Signal Contacts Loaded | |
 | Molex 173112-0206 | FCT Machined Contact, Male, Crimp, 0.2µm Gold Plating, 28-26 AWG | |
 | Molex 173112-0214 | HPD Standard-Density Machined Crimp Contact, Female, 0.20µm Gold Plating | |
 | Molex 173112-0225 | FCT Machined Contact, Male, Crimp, 1.3µm Gold Plating, 28-22 AWG | |

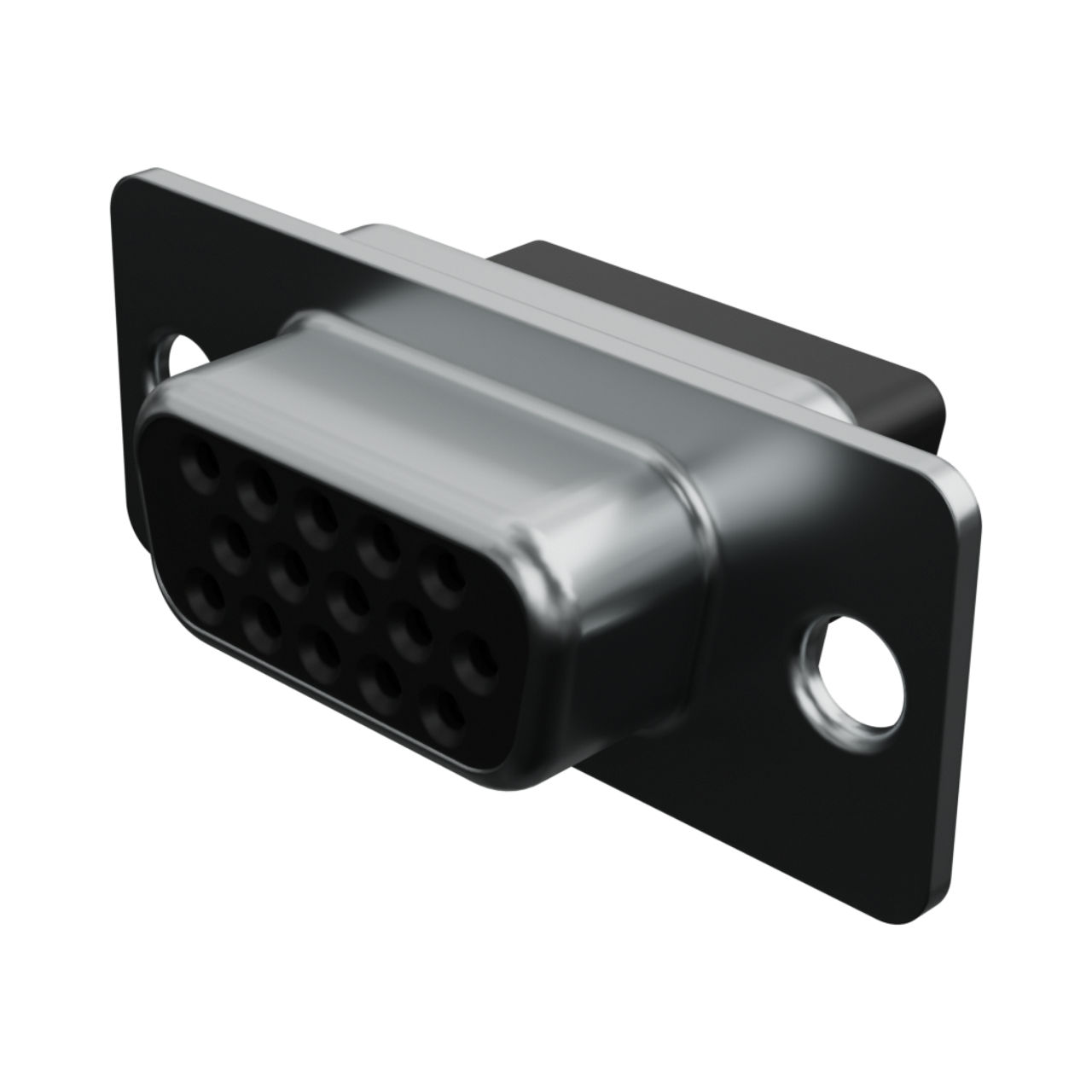

 | Molex 173113-0073 | FCT High-Density D-Sub Crimp Housing, Female, 15 Circuits | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 08/15/2022 | 512340 - Packaging Method/Quantity Changing. Standardization of packaging solution. This change is initiated inorder to Standardize the Packaging solution to meet the molex compliance. The impact of this change is such that the DU will be affected. The Reason of the chanage is Quantity change. The implementation of the change is done by performing various sizing and selection Tests long with a generalized Drop test report. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 173112-0228 |
| Other Names: | 1731120228 FK22SL-13V-5783 |
