| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 173109-1332 |
| Gender: | Female |
| Housing Material: | Steel |
| Number of Contacts: | 15 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Insulation Material: | Polybutylene Terephthalate |
| Shielded: | Yes |
| Current Rating: | 7.5 A |
| D-Sub Shell Size: | S2 |
| Operating Temperature: | -55 to 125 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Panel Mount, Through Hole |
| D-Sub Connector Type: | Standard |
| SKU: | MOL173109-1332 |
173109-1332
| ICC Number: | MOL173109-1332 |
| Manufacturer: | Molex |
| Manufacturer Number: | 173109-1332 |
| ECAD Model: | |
Description:
FCT Standard-Density D-Sub Connector, Female, Straight, PCB Through Hole, 10.30mm Tail Length, Gold Plating, 500 Mating Cycles, 6.60mm Snap-in Bolt with Through Hole, 15 Circuits, White Insulator
Specifications
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 173109-0075 | FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 10.30mm Tail Length, Gold Plating, 500 Mating Cycles, 6.60mm Snap-in Bolt, 9 Circuits, White Insulator |  |
 | Molex 173109-0143 | FCT Standard-Density D-Sub Connector, Female, Straight, PCB Through Hole, 10.30mm Tail Length, Gold Plating, 500 Mating Cycles, 6.60mm Snap-in Bolt, 25 Circuits, White Insulator | |

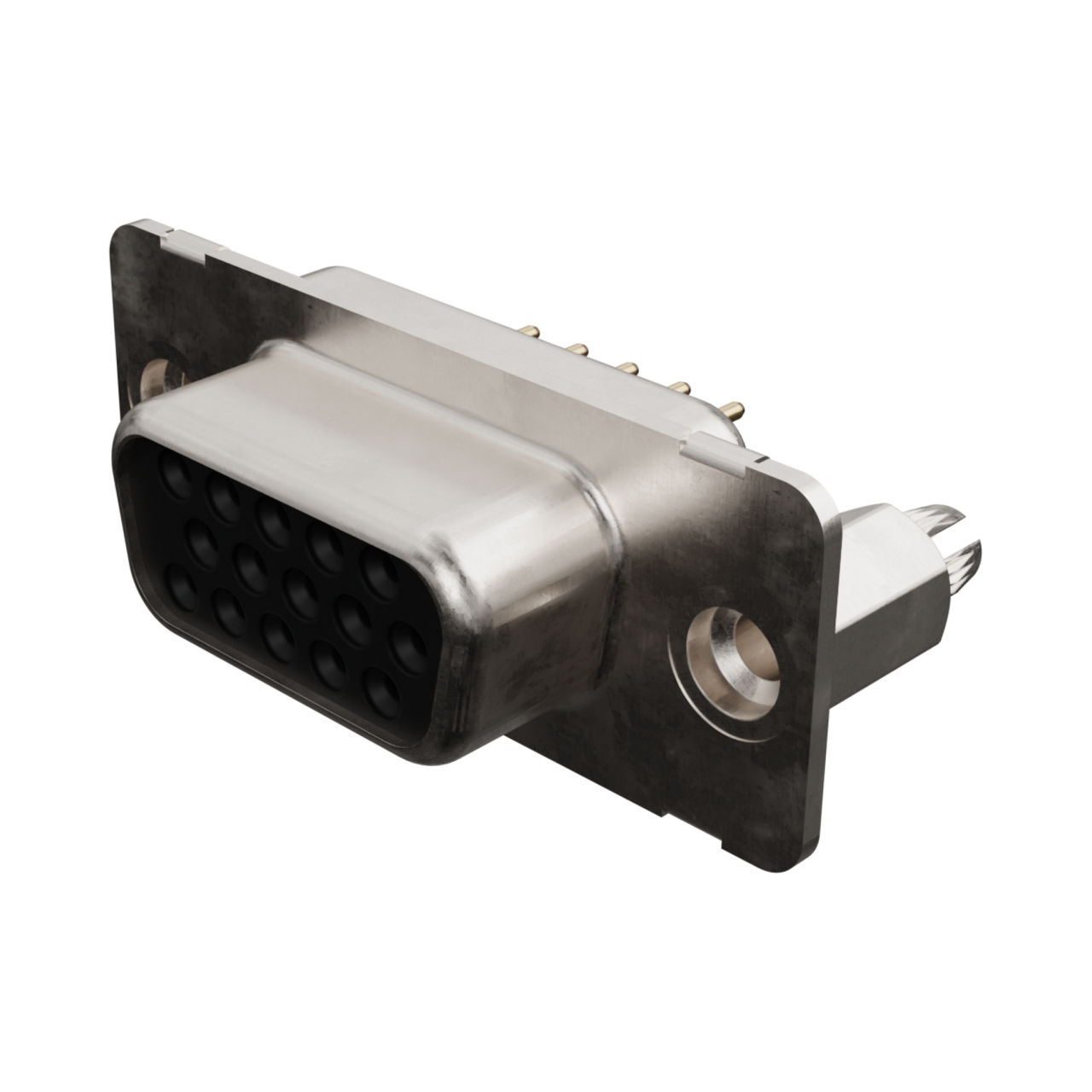

 | Molex 173113-0068 | FCT High-Density D-Sub Connector, Female, Straight, PCB Through Hole, Gold Plating, 6.60mm Snap-in Bolt, 15 Circuits | |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
