173107-0170

Heilind Number:	MOL173107-0170
Manufacturer:	Molex
Manufacturer Number:	173107-0170
Datasheet:	Datasheet
ECAD Model:

Description:

FCT Mixed Layout D-Sub Crimp Housing, Male, Tin-Plated Shell with Dimples, 7 Circuits Unloaded, 5 Signal Contact Positions, Black Insulator

More >>

Specifications

Attribute	Value
Product Category:	D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 173107-0170
Color:	Black
Series:	173107
Gender:	Male
Number of Contacts:	7
Number of Rows:	2
Pitch:	2.84 mm
IP Rating:	IP20
Shell Plating:	Tin
Number of Ports:	1
Orientation:	Straight
Insert Material:	PBT
Shell Material:	Steel
Operating Temperature Range:	-55° - 115 °C
Mating Cycles:	500
Panel Mount:	Rear
Panel Mount Method:	Flange
PCB Locator:	No
Shielded:	Yes
PCB Retention:	Without
Type:	Mixed Layout
Mating Pitch:	2.84 mm
Polarized to Mate:	Yes
Wire Size:	18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG
Waterproof Dustproof:	No
Product Name:	FCT Products
Part Aliases:	1731070170 FL7W2P7-K120
SKU:	MOL173107-0170

Detailed Description

Introducing the FCT Mixed Layout D-Sub Crimp Housing, a versatile connectivity solution for your electronic devices. This male housing features a tin-plated shell with dimples, ensuring secure connections in a variety of applications. With 7 circuits and 5 unloaded signal contact positions, it offers ample flexibility for your wiring needs. The black housing, constructed of PBT insert material and steel shell, is both durable and reliable, operating in temperatures ranging from -55° to 115°C. Designed for rear panel mounting with a flange, this D-Sub connector is easy to install. With 500 mating cycles and RoHS compliance, it guarantees long-lasting performance and environmental responsibility. Upgrade your power connectors with the FCT Mixed Layout D-Sub Crimp Housing.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-09-5106	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1189, Female, with Gold (Au) Plated Brass Contact, 14-20 AWG, Bag
	Molex 03-12-1036	3.18mm Diameter, HCS125, Pin and Socket Receptacle Housing, Single Row, without Panel Mount Ears, 3 Circuits, Natural, Nylon 94V-2
	Molex 172704-0003	HPD Standard-Density D-Sub Plug Housing, Crimp, Panel Mount, 25 Circuits
	Molex 172704-0097	FCT Metal Backshell for D-Sub Connector, Shell Size 2, 45° Angle Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws
	Molex 172704-0147	FCT High Power Contact, Male, Straight, Solder Cup, 0.8µm Gold Mating Plating, 0.2µm Gold Termination Plating, 20A, 16-12 AWG
	Molex 173112-0410	FCT Stamped Contact, Female, Crimp, 0.80Âµm Gold Plating, Split Tine, 24-28 AWG
	Molex 173112-0488	FCT Stamped Contact, Male, Crimp, 0.80Âµm Gold Plating, 24-28 AWG
	Molex 22-01-3037	KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 3 Circuits, Natural
	Molex 39-01-2020	Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural
	Molex 39-01-2060	Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-2, Natural
	Molex 39-01-4046	Mini-Fit Jr. Plug Housing, Single Row, 4 Circuits, UL 94V-2, without Panel Mounting Ears, Natural
	Molex 39-01-4047	Mini-Fit Jr. Plug Housing, Single Row, 4 Circuits, UL 94V-0, without Panel Mounting Ears, Natural
	Molex 43025-0200	Micro-Fit 3.0 Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43030-0006	Micro-Fit 3.0 Crimp Terminal, Female, with Select Gold (Au) Plated Phosphor Bronze Contact, 30-26 AWG, Reel

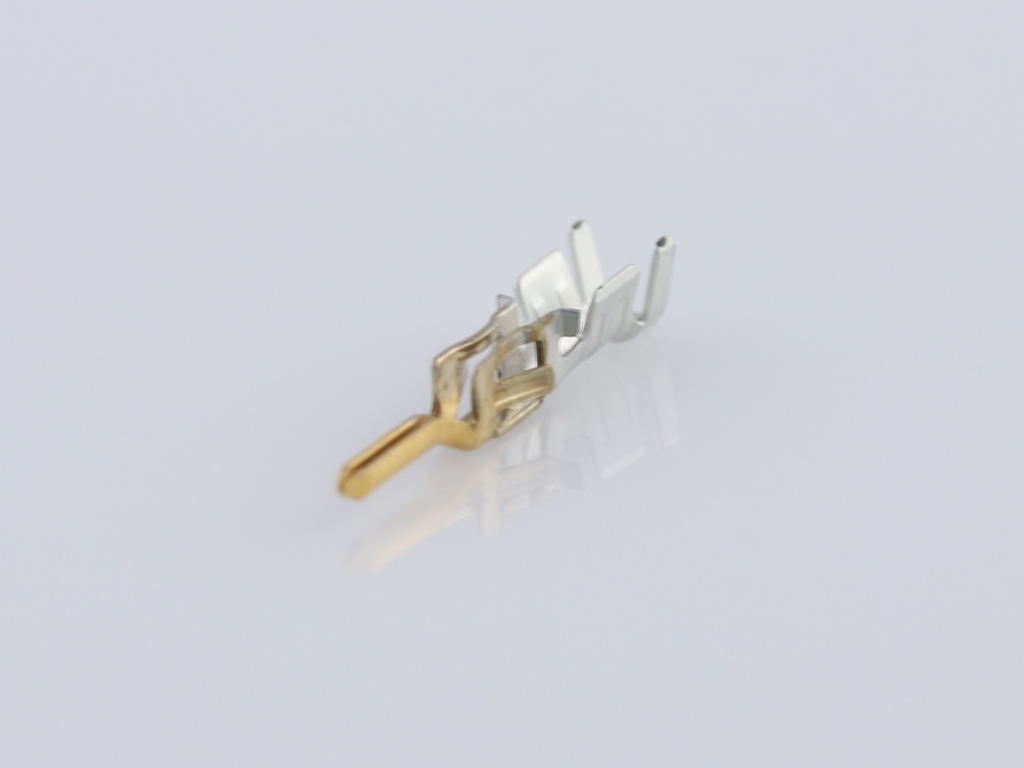

	Molex 43031-0006	Micro-Fit 3.0 Crimp Terminal, Male, with 0.76µm Select Gold (Au) Plated Phosphor Bronze Contact, 30-26 AWG, Reel
