| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 173107-0061 |
| Gender: | Male |
| Housing Material: | Steel |
| Number of Contacts: | 9 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Insulation Material: | Polybutylene Terephthalate |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7.5 A |
| D-Sub Shell Size: | S3 |
| Operating Temperature: | -55 to 130 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Panel Mount |
| D-Sub Connector Type: | Mixed Layout |
| SKU: | MOL173107-0061 |
173107-0061
| ICC Number: | MOL173107-0061 |
| Manufacturer: | Molex |
| Manufacturer Number: | 173107-0061 |
| ECAD Model: | |
Description:
FCT Mixed Layout D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Tin-plated Shell with Dimples, 9 Circuits Max, 5 Signal Contacts Loaded, Green Insulator
More >>Specifications
Detailed Description
Introducing the FCT Mixed Layout D-Sub Connector, a versatile and high-performance solution for your connectivity needs. This male connector features a straight orientation and solder cup termination method, with gold plating for enhanced conductivity. The tin-plated shell with dimples ensures durability, while the 9 circuits accommodate multiple connections. With 5 signal contacts loaded and an amperage rating of 7.5 A, this connector is suitable for various applications. Its IP20 rating offers protection against dust and debris, and with RoHS compliance, it meets environmental standards. The FCT Mixed Layout D-Sub Connector, part of the 173107 series, is a reliable choice for power and signal transmission in demanding environments.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-65-0816 | KK 254 Crimp Terminal 6459, 30-22 AWG, Bag, Phosphor Bronze Selective Gold (Au) |  |
 | Molex 172704-0010 | FCT Standard-Density D-Sub Crimp Housing, Female, Shell without Dimples, 9 Circuits, Black Front and Rear Insulator | |
 | Molex 172704-0032 | FCT Mixed Layout D-Sub Housing, Female, Tin-plated Shell, 3 Circuits Unloaded, Green Insulator | |
 | Molex 172704-0073 | FCT Standard-Density D-Sub Connector, Male, Straight, IDC Ribbon, 0.20µm Gold Plating, 9 Circuits, Black Insulator | |
 | Molex 172704-0100 | FCT Metal Backshell for D-Sub Connector, Shell Size 3, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 172704-0142 | FCT High Power Contact, Male, Straight, Crimp, 0.80µm Gold Mating Plating, 0.20µm Gold Termination Plating, 10.0A, 20-16 AWG | |
 | Molex 172704-0147 | FCT High Power Contact, Male, Straight, Solder Cup, 0.80µm Gold Mating Plating, 0.20µm Gold Termination Plating, 20.0A, 16-12 AWG | |
 | Molex 172704-0159 | FCT Knurled Thumb Screw Lock, #4-40 Thread, 53.50mm Length, Nickel-plated Brass | |

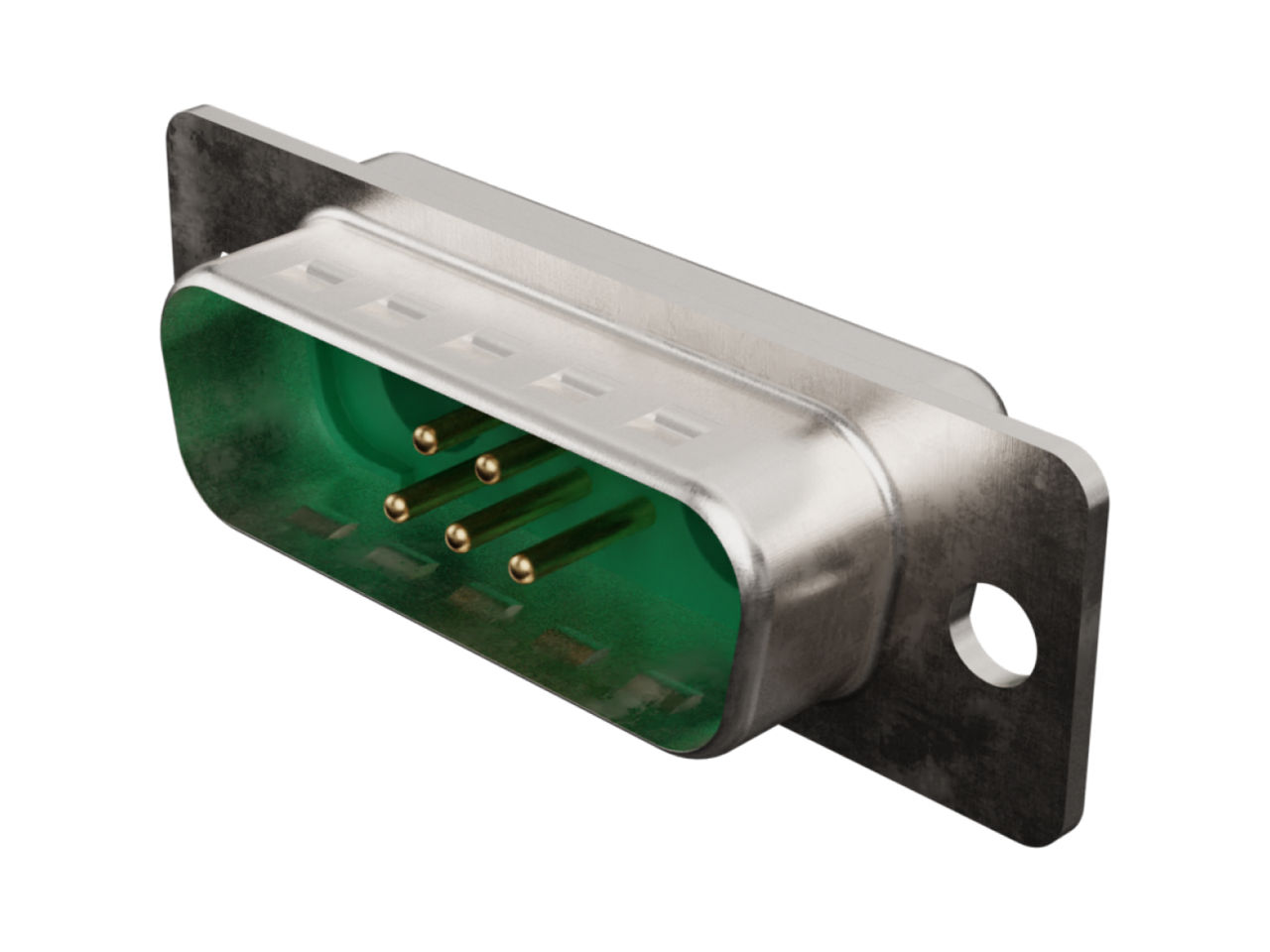

 | Molex 173107-0059 | FCT Mixed Layout D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Tin-plated Shell with Dimples, 7 Circuits Max, 5 Signal Contacts Loaded, Green Insulator | |
 | Molex 173107-0062 | FCT Mixed Layout D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Tin-plated Shell, 9 Circuits Max, 5 Signal Contacts Loaded, Green Insulator | |
 | Molex 173112-0734 | FCT Machined Contact, Female, Crimp, 0.20µm Gold Plating, Split Tine, 28-26 AWG, 1000 Pieces | |
 | Molex 19070-0075 | InsulKrimp Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 1/4" (M6), Length 26.97mm, Blue, Carton | |
 | Molex 22-01-2067 | KK 254 Crimp Housing, Friction Ramp, 6 Circuits, Natural | |

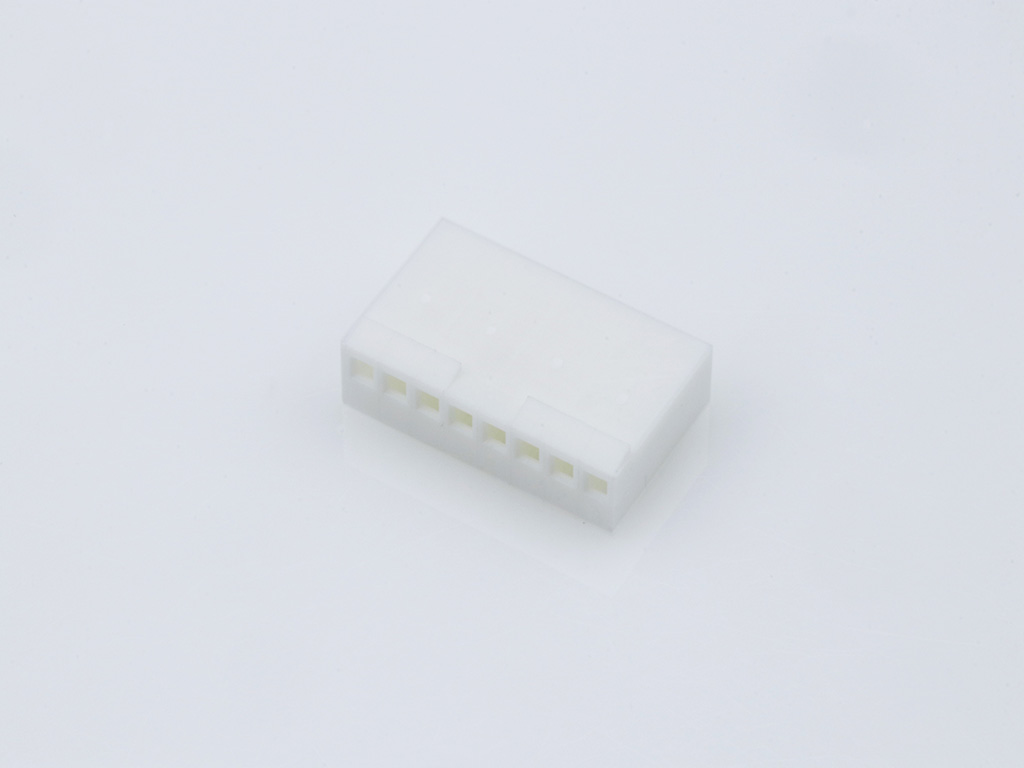

 | Molex 22-01-2087 | KK 254 Crimp Housing, Friction Ramp, 8 Circuits, Natural | |
