| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 173107-0058 |
| Color: | Black |
| Series: | 173107 |
| Gender: | Female |
| Number of Contacts: | 3 |
| Number of Rows: | 1 |
| IP Rating: | IP20 |
| Shell Plating: | Tin |
| Number of Ports: | 1 |
| Insert Material: | PBT |
| Shell Material: | Steel |
| Operating Temperature Range: | -55 - 130 °C |
| Panel Mount: | Rear |
| Panel Mount Method: | Flange |
| PCB Locator: | No |
| Shielded: | Yes |
| PCB Retention: | Without |
| Type: | Mixed Layout |
| Polarized to Mate: | Yes |
| Waterproof Dustproof: | No |
| Product Name: | FCT Products |
| Part Aliases: | 1731070058 F3W3SC-K121 |
| SKU: | MOL173107-0058 |
173107-0058
Specifications
Detailed Description

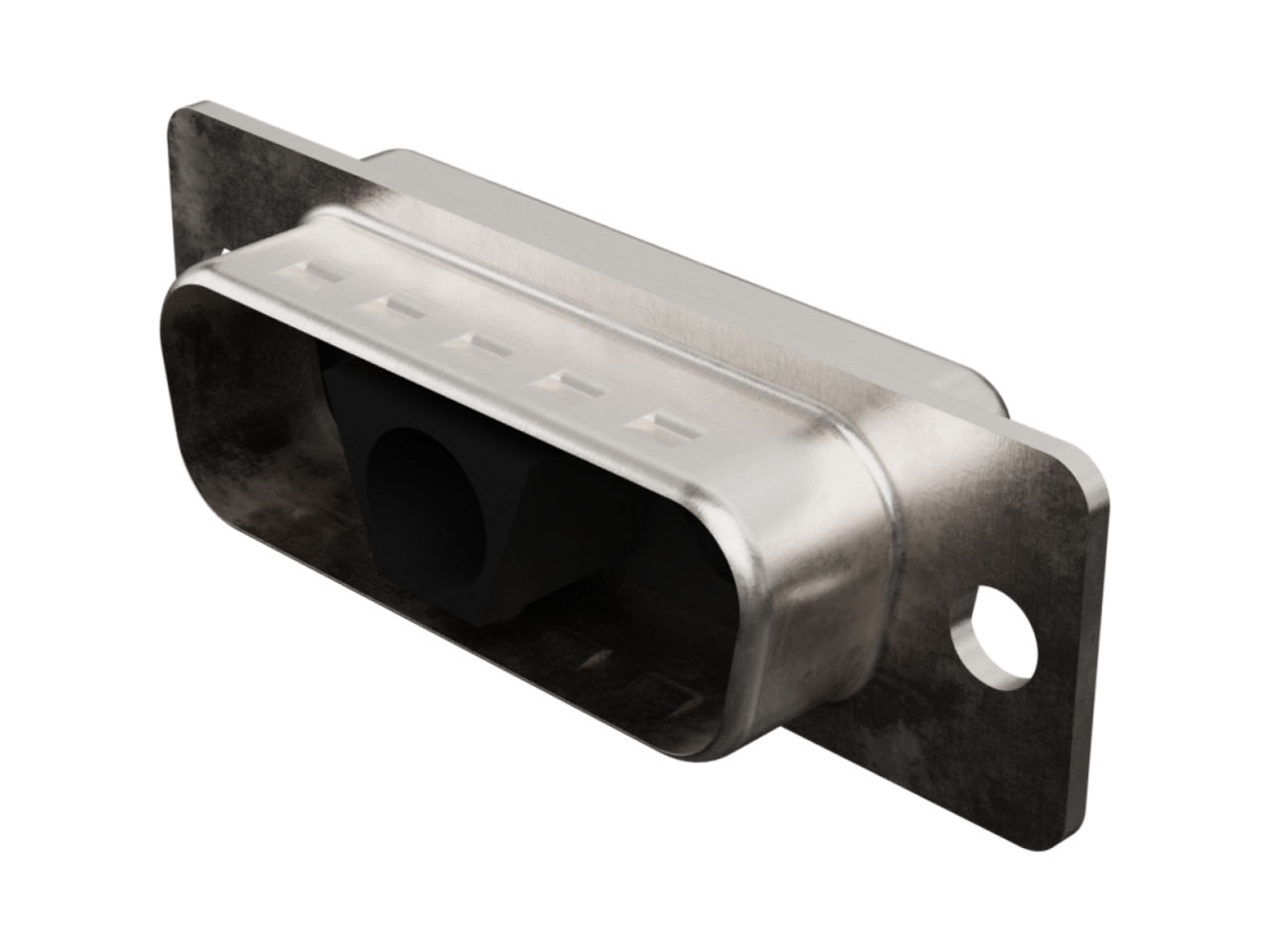

Introducing the FCT Mixed Layout D-Sub Housing, a versatile and reliable connectivity solution for your electronic devices. This female housing features a tin-plated shell without dimples, ensuring secure connections. With 3 circuits and a black color design, it offers both functionality and style. Constructed with PBT insert material and steel shell, it guarantees durability even in harsh environments with an operating temperature range of -55 to 130 °C. The rear panel mount with a flange method makes installation easy, while its shielded design provides added protection against interference. RoHS compliant and available for order, the FCT Mixed Layout D-Sub Housing is perfect for power connector applications. Upgrade your connectivity with FCT Products.
