| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172063-0334 |
| Series: | 172063 - Mega-Fit |
| Amperage: | 25 A |
| Connector Type: | Mega-Fit |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Conductivity Copper |
| Voltage: | 600 V AC/DC |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .356 µm |
| Contact Termination Plating Thickness: | 1.524 µm |
| Wire Size: | 14 AWG, 16 AWG, 1.5 - 2.5 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Matte Tin |
| Wire Insulation Diameter: | 3.15 - 3.58 mm |
| Product Name: | Mega-Fit |
| Part Aliases: | 1720630334 |
| SKU: | MOL172063-0334 |
172063-0334
Specifications
Detailed Description

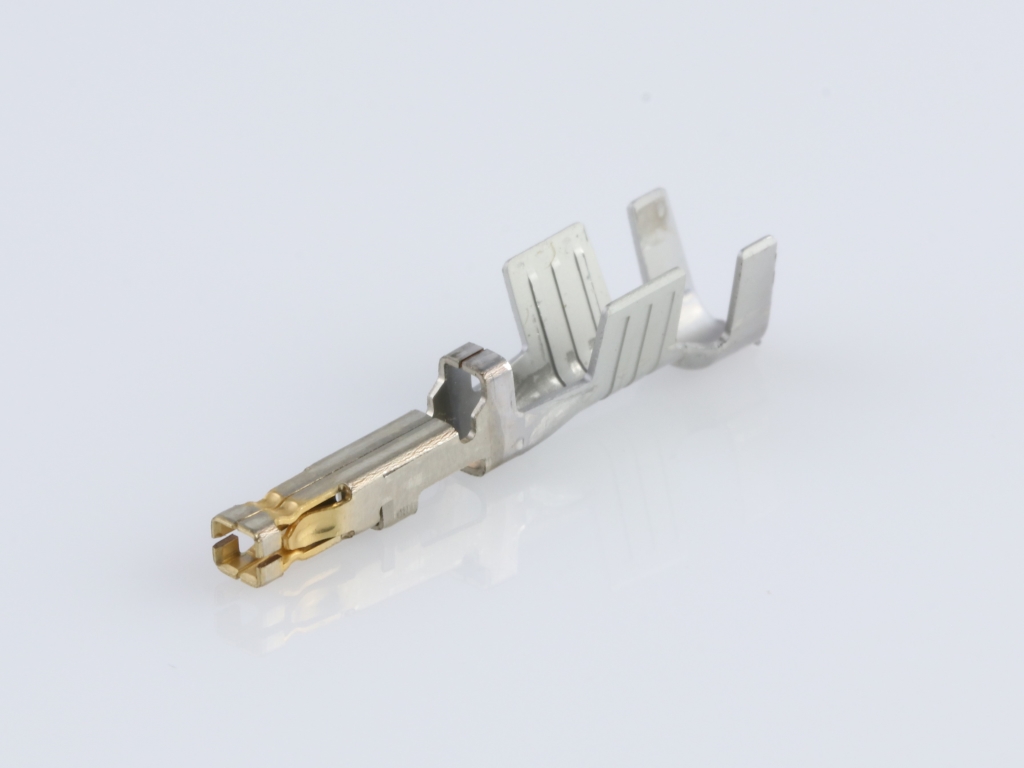

Introducing the Mega-Fit Tangless TPA-Capable Crimp Terminal, a high-performance solution for your power connectivity needs. This female terminal, with 0.38µm Gold (Au) Plating, is designed for 14 and 16 AWG wires, ensuring a secure and reliable connection. Its tangless design reduces the risk of damage during assembly, while the TPA capability offers added protection against terminal back-out. Constructed with High Conductivity Copper, it allows for efficient power transfer with a rating of 25 A and 600 V AC/DC. The Matte Tin termination plating ensures durability, even in demanding environments. Perfect for wire-to-wire or wire-to-board applications, this terminal is RoHS compliant, making it a sustainable choice for your projects. Trust the Mega-Fit Power Connector series for high-quality, high-reliability power connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 171692-0208 | Mega-Fit Tangless TPA-Capable Receptacle Housing, Dual Row, 8 Circuit, UL 94V-0, Glow-Wire Capable, Black |  |
 | Molex 46992-0410 | Mini-Fit Jr. Receptacle Housing, Dual Row, Nylon 6/6, UL 94V-2, 4 Circuits, Glow-Wire Capable, Black | |
 | Molex 46992-0610 | Mini-Fit Jr. Receptacle Housing, Dual Row, Nylon 6/6, UL 94V-2, 6 Circuits, Glow-Wire Capable, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 12/20/2022 | 512558 - Change Supplier. This notification is to inform you about change of supplier impacting the part(s) attached as per list, No changes will be made to product as part of this change. Current vendor Kemper stopped producing C19210 & C42500 metal alloy we must qualify new source Boway to keep production running metal alloys are not changed. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 172063-0334 |
| Other Names: | 1720630334 |
