171692-0208

Heilind Number:	MOL171692-0208
Manufacturer:	Molex
Manufacturer Number:	171692-0208
Datasheet:	Datasheet
ECAD Model:

Description:

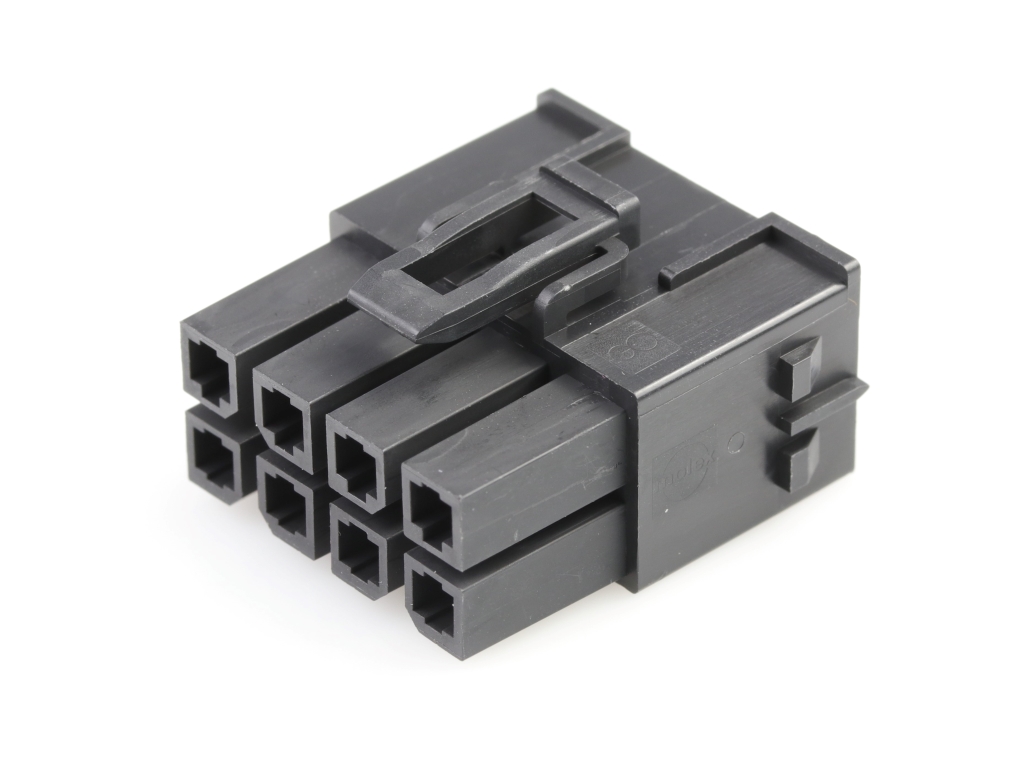

Mega-Fit Tangless TPA-Capable Receptacle Housing, Dual Row, 8 Circuit, UL 94V-0, Glow-Wire Capable, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 171692-0208
Color:	Black
Series:	171692 - Mega-Fit
Connector Type:	Mega-Fit
Gender:	Receptacle
Number of Contacts:	8
Number of Rows:	2
Pitch:	5.7 mm
Material:	Nylon
Keying:	No
Packaging:	Bag
Operating Temperature Range:	-40 - 105 °C, -40 - 120 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board, Wire to Wire
Mates With:	br>, Mega-Fit Headers Link:76825\|Link:76829\|Link:172065\|Link:172064 <, Mega-Fit Plug Housing Link:105411
Termination Pitch:	5.7 mm
Glow Wire Capable:	Yes
Lock to Mating Part:	Yes
Stackable:	No
Product Name:	Mega-Fit
Part Aliases:	1716920208
SKU:	MOL171692-0208

Detailed Description

The 171692-0208 is a high-performance Mega-Fit Tangless TPA-Capable Receptacle Housing designed for robust power applications. With a dual-row configuration and 8 circuits, this UL 94V-0 compliant housing ensures reliable connectivity. Its innovative design, featuring glow-wire capability and polarization for secure mating, guarantees safety and efficiency. Crafted from durable black nylon, it offers superior protection and longevity in harsh environments. Ideal for wire-to-wire and wire-to-board connections, this Mega-Fit housing is a versatile solution for various power needs. RoHS compliant and in stock for immediate shipping, it is a trusted choice for quality-conscious customers. Elevate your power connectivity with the 171692-0208 Mega-Fit Receptacle Housing.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-09-2116	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1380, Male, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Reel
	Molex 105308-1210	Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Dual Row, 10 Circuits, Black, Glow-Wire Capable
	Molex 171692-0204	Mega-Fit Tangless TPA-Capable Receptacle Housing, Dual Row, 4 Circuit, UL 94V-0, Glow-Wire Capable, Black
	Molex 172063-0334	Mega-Fit Tangless TPA-Capable Crimp Terminal, Female, 0.38Âµm Gold (Au) Plating, 14 and 16 AWG, Reel
	Molex 19054-0086	RING INSULKRIMP (B-225-14X)
	Molex 19070-0090	InsulKrimp Ring Tongue Terminal for 14-16 AWG Wire
	Molex 22-01-1052	2.50mm Pitch KK Wire-to-Board Housing, Female, Friction Lock, for 2759/5159 Crimp Terminals, 5 Circuits
	Molex 22-01-3087	KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 8 Circuits, Natural
	Molex 39-00-0041	Mini-Fit Male Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass Contact, 24-18 AWG
	Molex 39-00-0181	Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 24-18 AWG, Reel
	Molex 39-01-2120	Mini-Fit Jr. Receptacle Housing, Dual Row, 12 Circuits, UL 94V-2, Natural
	Molex 39-01-2121	Mini-Fit Jr. Plug Housing, Dual Row, 12 Circuits, UL 94V-2, with Panel Mounting Ears, Natural
	Molex 39-01-4041	Mini-Fit Jr. Receptacle Housing, Single Row, 4 Circuits, UL 94V-0, Natural
	Molex 42816-0412	10.00mm Pitch Mini-Fit Sr. Receptacle Housing, Single Row, 4 Circuit, Black
	Molex 51110-0860	2.00mm Pitch, Milli-Grid Receptacle Housing, 8 Circuits, without Center Polarization Key, with Locking Ramp, Lead-Free

Product Change Notice

Effective Date	Description of Change				Download
07/22/2025	516176 - Change to Product. Remove series number mark.				Download
03/20/2024	514049 - Change to Product. This notification is to inform you about changes that are being made to the part(s) as identified in the list. This change will affect the Fit, Form, Function, or appearance of the parts. Or it may result in a change to the specification or raw material.				Download
