| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 171596-0003 |
| Gender: | Male |
| Number of Contacts: | 12 |
| Number of Rows: | 2 |
| Contact Material: | Copper |
| Contact Plating: | Gold, Tin |
| Pitch: | 5.7 mm |
| Shrouded: | Yes |
| Current Rating: | 23 A |
| Voltage Rating: | 600 V |
| Operating Temperature: | -40 to 120 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| PCB Connector Type: | PCB Mount Header |
| SKU: | MOL171596-0003 |
171596-0003
| ICC Number: | MOL171596-0003 |
| Manufacturer: | Molex |
| Manufacturer Number: | 171596-0003 |
| ECAD Model: | |
Description:
Mega-Fit Right-Angle Header, 5.70mm Pitch, Through Hole, Dual Row, 12 Circuit Housing, Circuits 2, 5, 8, and 11 Voided, 0.38µm Gold (Au) Plating, 3.60mm Tail Length, Glow-Wire Capable, Black
Specifications
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 208658-1001 | HDMI v2.1 Receptacle, Right-Angle, 0.76µm Gold(Au) Plating, 1.80mm Tab, Tape and Reel, 19 Circuits |  |

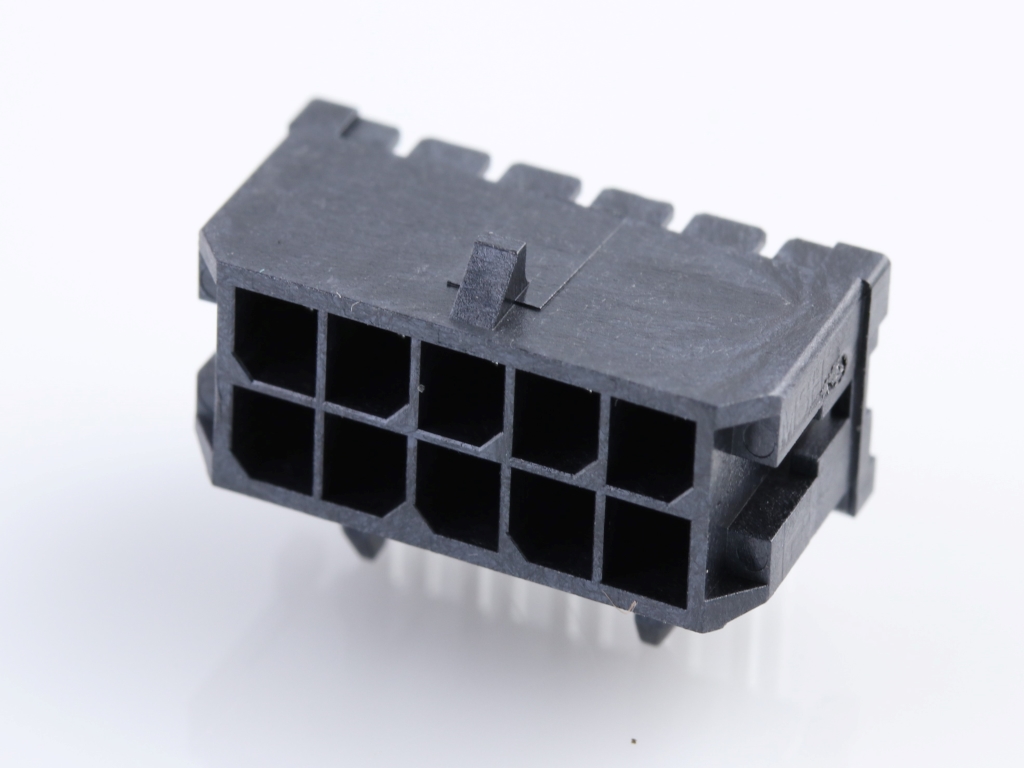

 | Molex 43045-1001 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 10 Circuits, with Snap-in Plastic Peg PCB Lock, 0.38µm Gold Plating, Glow-Wire Capable, Black | |
