160112-6001

MX150 Hybrid Mat-Sealed Male Connector Assembly, Dual Row, 12 Circuits, Keying Option A, Black

Attribute	Value
Product Category:	Rectangular Connectors Standard Rectangular Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 160112-6001
Gender:	Male
Housing Material:	Nylon
Number of Contacts:	12
Number of Rows:	2
Pitch:	3.5 mm
Operating Temperature:	-40 to 125 °C
SKU:	MOL160112-6001

Product	Part #	Description	Stock

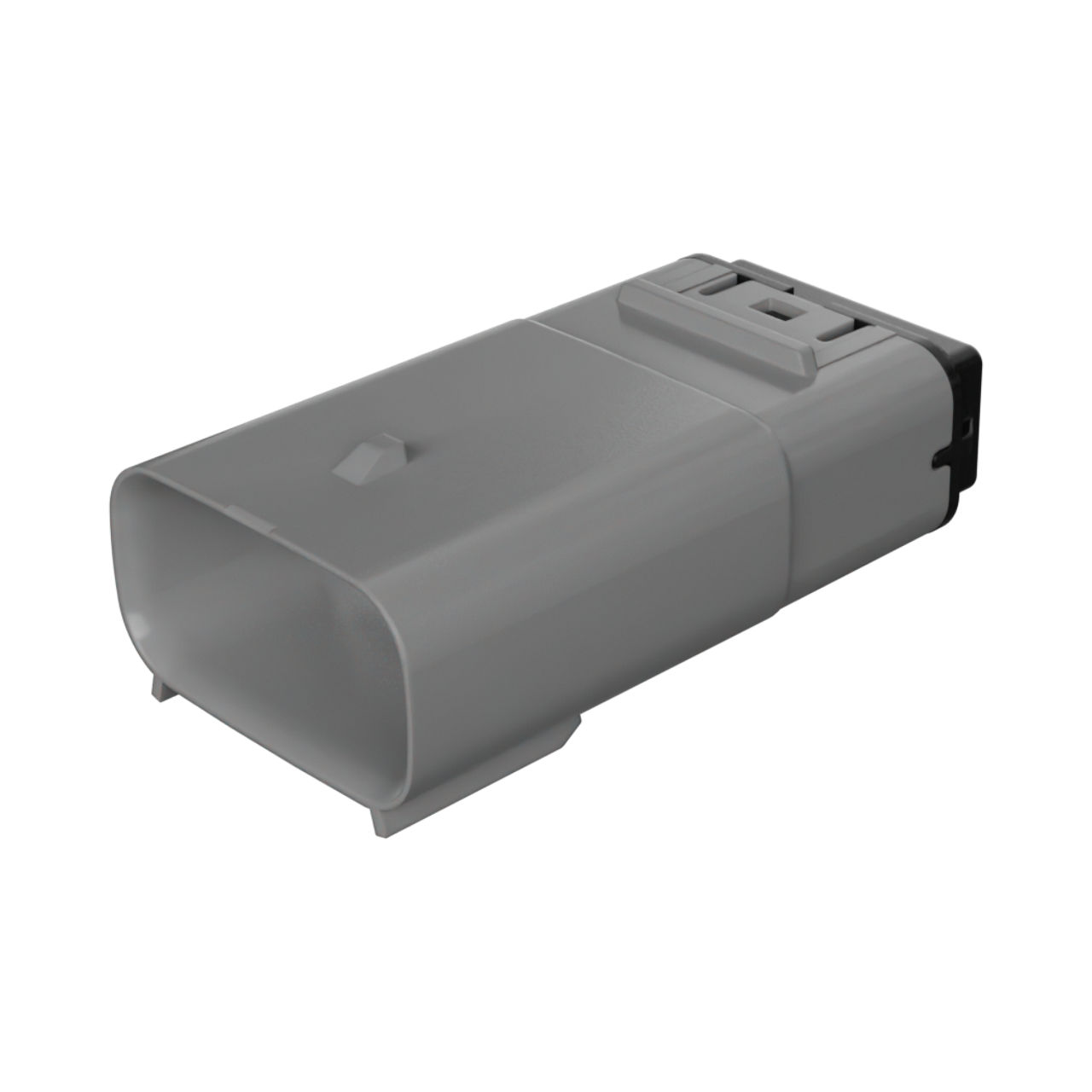

	Molex 160112-6002	MX150 Hybrid Mat-Sealed Male Connector Assembly, Dual Row, 12 Circuits, Keying Option B, Light Gray
	Molex 19007-0040	Flag InsulKrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm²) Wire, Box, Tab 6.35 x 0.81mm, Carton
	Molex 19418-0040	MX150L 16 Circuit Receptacle for 22-18 AWG Wire, without CPA, Black
	Molex 34345-4001	MX150 Sealed Receptacle Cavity Plug
	Molex 64318-1018	.635mm, 1.50mm, 2.80mm, Power CMC Connector, 28 Circuits, Left Wire Output, Gray Coding, Mat Sealed

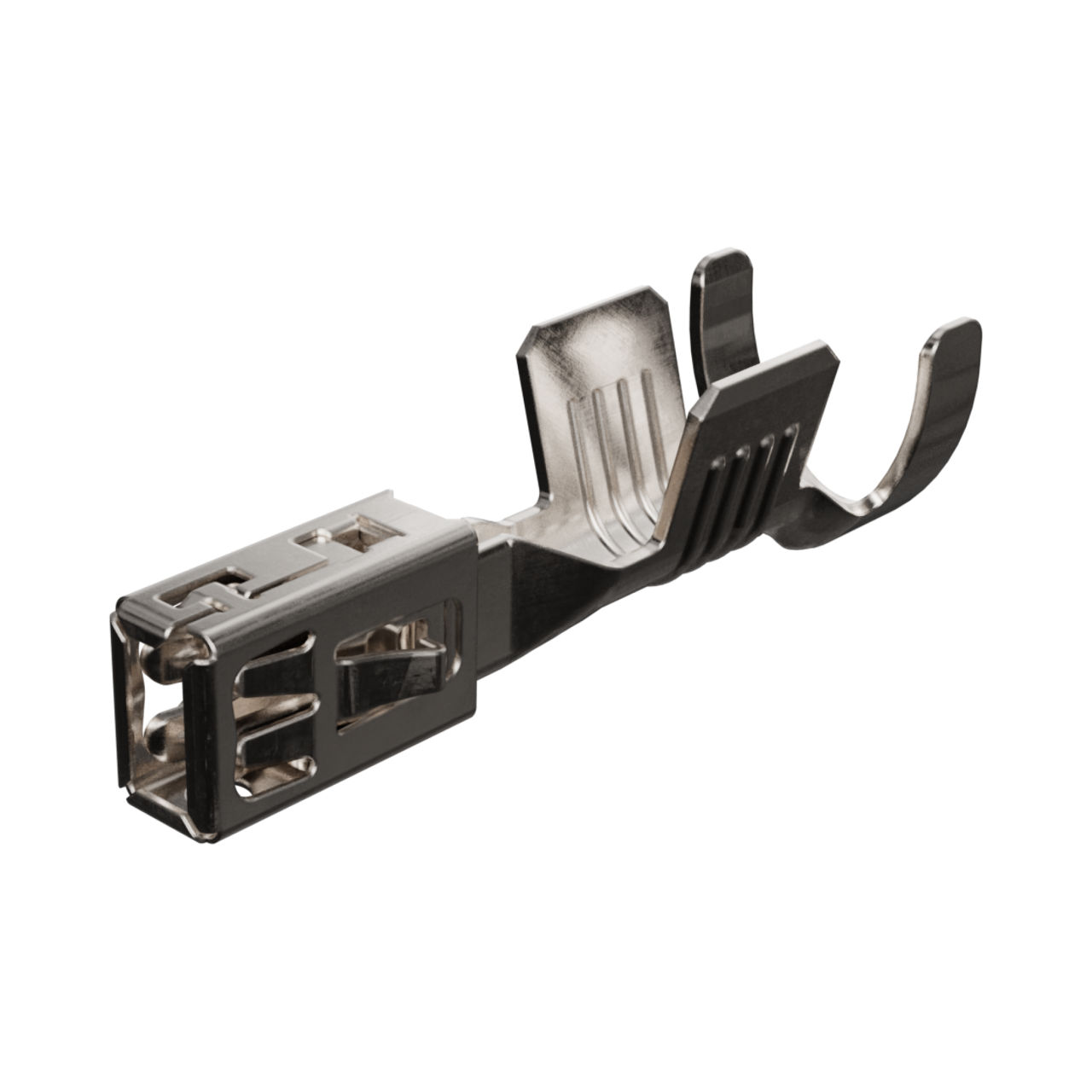

	Molex 64324-1029	2.80mm, CMC CP Female Terminal, Tin plated, for Tab Dimensions 2.80mm by 0.80mm, Wire Size > 2.00-3.00mm²
	Molex 73366-0010	MCX Plug, Right-Angle, Crimp, RG-174, RG-188 and RG-316, Die Cast Body, Nickel (Ni) Plated, Bulk Bag, 50 Ohms

Effective Date	Description of Change				Download
03/01/2021	509569 - Packaging Method/Quantity Changing. we will change the DU(SPQ) and packing method of MX150 series, the air bag packaging method has better cushioning and handling No impact to fit form or function.				Download
