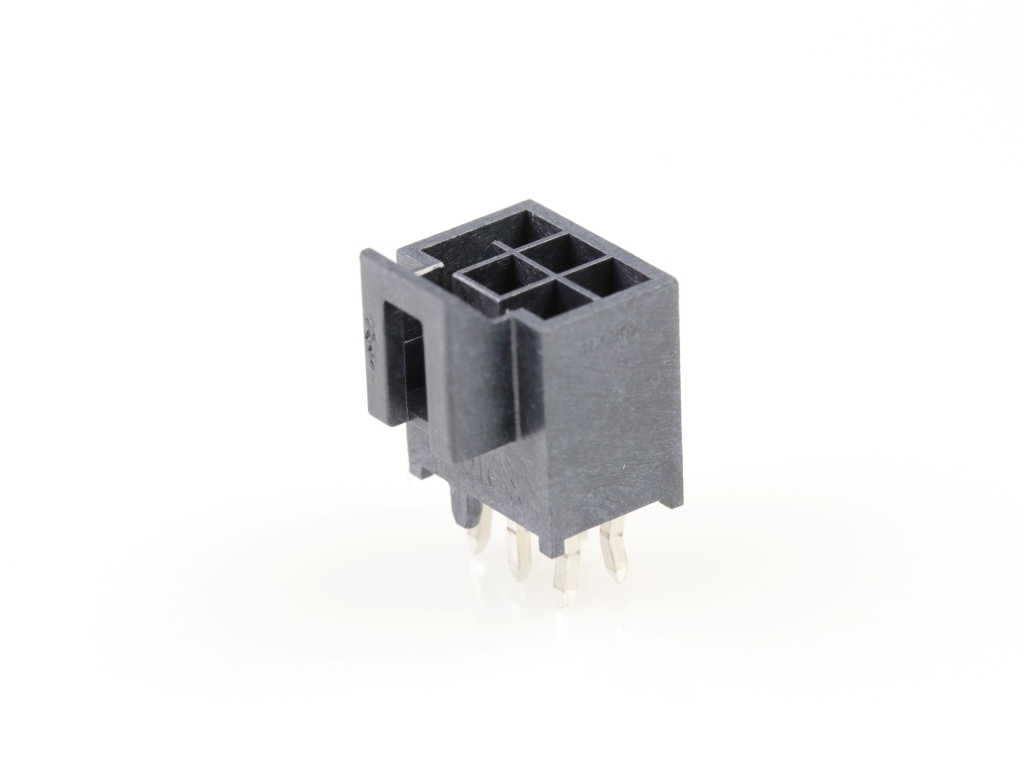

Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 4 Circuits, with Solder Clips, 0.76
Part Aliases: Molex 1053122304
The Nano-Fit Vertical Header, a high-performance PCB connector designed for demanding power applications. With a compact 2.50mm pitch and featuring dual rows, this header offers superior connectivity in a space-saving design. Boasting 4 circuits and equipped with solder clips for secure attachment, it ensures reliable power transmission. Constructed of durable liquid crystal polymer with a natural color finish, it not only provides excellent mechanical strength but also meets strict flammability standards. Its straight body orientation and vertical mounting option make it versatile for various PCB layouts. With a contact rating of 6.5A and a voltage tolerance of 300V, it is perfect for power-intensive systems. Gold over nickel contact plating guarantees low contact resistance and high reliability, even in harsh environments. RoHS-compliant and with a wide operating temperature range from -40 to 115°C, this header is suitable for a range of applications in industries such as automotive, industrial, and consumer electronics. Upgrade your power connections with the Nano-Fit Vertical Header for uncompromising performance and durability.
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 105312-2304 |
| Color: | Natural |
| Series: | 105312 |
| Amperage: | 6.5 A |
| Connector Type: | Nano-Fit |
| Number of Contacts: | 4 |
| Number of Rows: | 2 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 2.5 mm |
| Voltage: | 300 V |
| Material: | Liquid Crystal Polymer |
| Orientation: | Vertical |
| Keying: | Yes |
| Tail Length: | 3.2 mm |
| Operating Temperature Range: | -40 - 115 °C |
| Contact Mating Area Plating: | Gold over Nickel |
| Contact Mating Area Plating Thickness: | .762 µm |
| Number of Contacts Loaded: | 4 |
| Mating Cycles: | 50 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating Thickness: | 1.524 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm, 2.4 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin over Nickel |
| Termination Pitch: | 2.5 mm |
| Glow Wire Capable: | Yes |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Shroud Type: | Yes |
| Product Name: | Nano-Fit |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 1053122304 |
| SKU: | MOL105312-2304 |
