| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 09-65-2038 |
| Color: | Natural |
| Series: | 5273 - KK 396 - SPOX |
| Amperage: | 7 A |
| Connector Type: | KK 396, SPOX |
| Number of Contacts: | 3 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 3.96 mm |
| Voltage: | 250 V |
| Material: | Nylon |
| Orientation: | Vertical |
| Keying: | No |
| Tail Length: | 3.6 mm |
| Packaging: | Bag |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 5.08 µm |
| Number of Contacts Loaded: | 3 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 5.08 µm |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Termination Pitch: | 3.96 mm |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Partial |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0009652038 5273-03A |
| SKU: | MOL09-65-2038 |
09-65-2038
| Heilind Number: | MOL09-65-2038 |
| Manufacturer: | Molex |
| Manufacturer Number: | 09-65-2038 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 09-65-2038, a high-quality Wire-to-Board Header for seamless PCB connections. This vertical header, part of the 5273 KK 396 SPOX series, features a 3-circuit design with a durable brass contact material and tin plating. With a pitch of 3.96mm and a tail length of 3.6mm, it offers reliable through-hole termination. Rated for 7A and 250V, this connector is suitable for various applications. Its nylon body construction, along with UL and CSA certifications, ensures safety and reliability. The header is RoHS compliant and available for immediate shipping. Perfect for board-to-wire connections, it guarantees secure and efficient performance in your electronic designs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 09-50-3061 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 6 Circuits, Natural |  |
 | Molex 09-65-2068 | SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 6 Circuits | |
 | Molex 19006-0001 | Avikrimp Quick Disconnect, for 18-22 AWG Wire, Female Flag, Tab 6.35 x 0.81mm | |
 | Molex 22-03-5125 | 2.50mm Pitch SPOX Wire-to-Board Header, Vertical, Shrouded, 12 Circuits, Tin (Sn) Plating | |

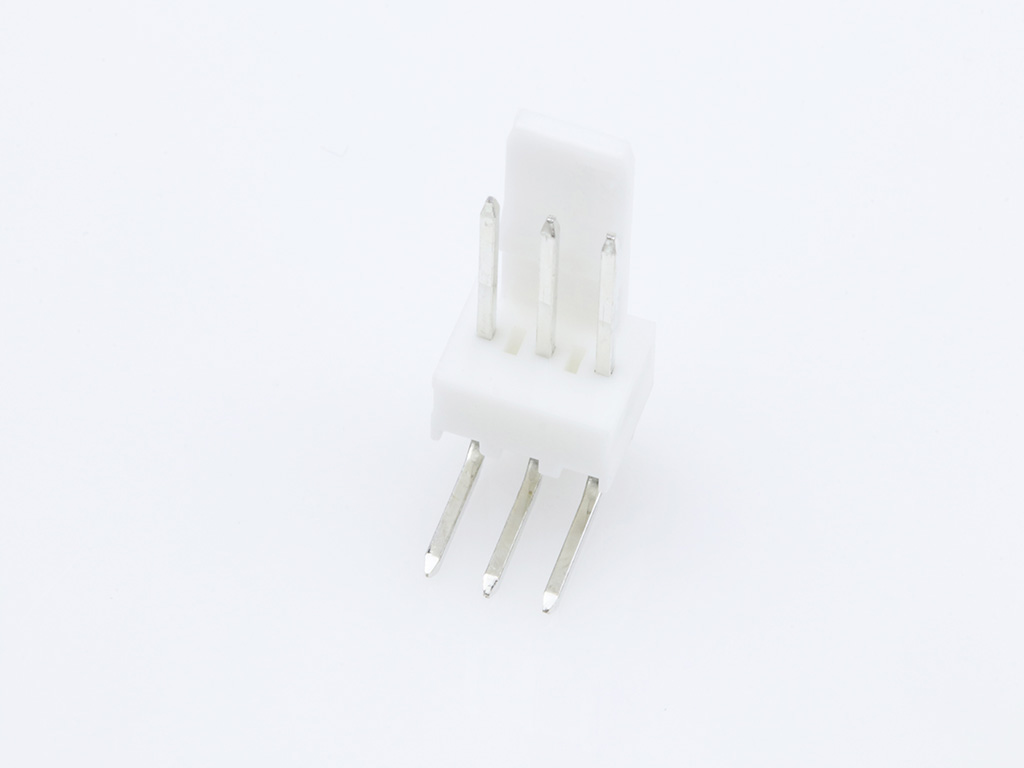

 | Molex 22-05-7038 | KK 254 Wire-to-Board Header, Right Angle, with Friction Lock, 3 Circuits | |
 | Molex 22-27-2031 | KK 254 Wire-to-Board Header, Vertical, with Friction Lock, 3 Circuits, Tin (Sn) Plating | |
 | Molex 39-28-8020 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |

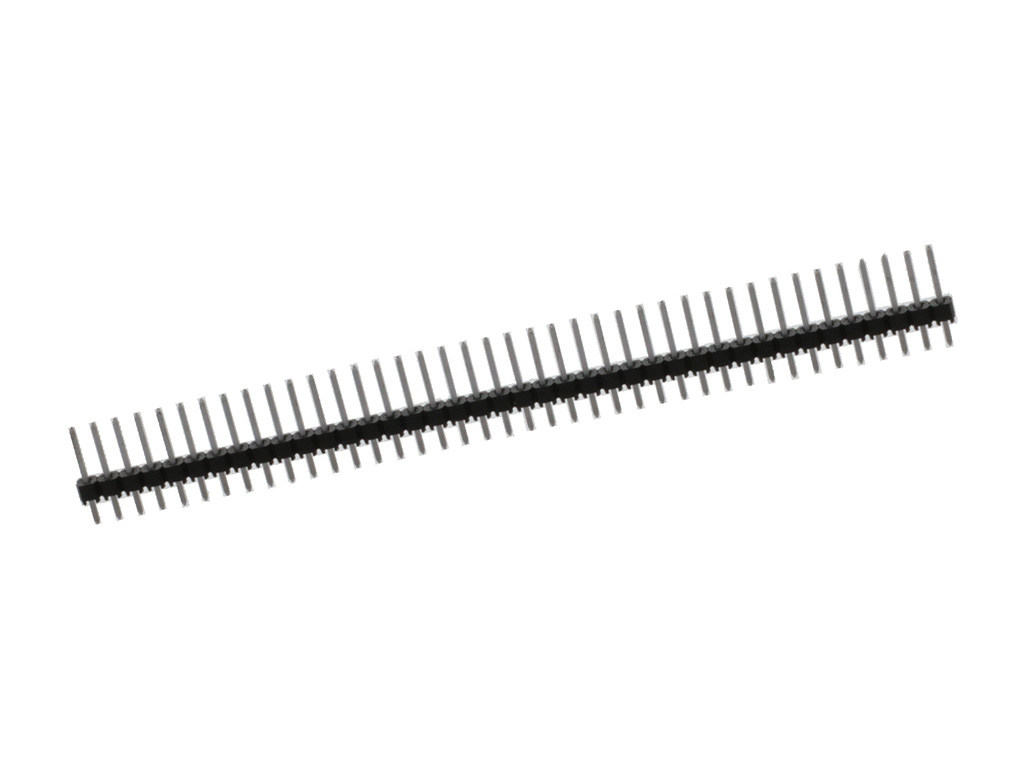

 | Molex 90120-0160 | 2.54mm Pitch C-Grid III Header, Single Row, Vertical, 40 Circuits, Tin (Sn) Plating | |
