03-06-2121

Heilind Number:	MOL03-06-2121
Manufacturer:	Molex
Manufacturer Number:	03-06-2121
Datasheet:	Packaging Specifications
ECAD Model:

Description:

1.57mm Diameter Standard .062 Pin and Socket Plug Housing, 12 Circuits, with Pre-bent Mounting Ears, Natural

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 03-06-2121
Color:	Natural
Series:	1625
Amperage:	5 A
Connector Type:	Standard .062"
Gender:	Plug
Housing Material:	Nylon
Number of Contacts:	12
Number of Rows:	3
Mount Type:	Panel Mount
Pitch:	3.68 mm
Material:	Nylon
Keying:	No
Packaging:	Bag
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Wire
CSA Agency Certification:	LR19980
UL Agency Certification:	E29179
Termination Pitch:	3.68 mm
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Breakaway:	No
Product Name:	Standard .062"
Material Flammability Standard:	94V-2
Part Aliases:	0003062121 1625-12P
Contact Detail:	3x4
SKU:	MOL03-06-2121

Detailed Description

Introducing the Standard .062" Connector System, a versatile and reliable solution for your power circuit applications. This panel-mount connector features 12 contacts arranged in 3 rows, with a low 5A amperage for efficient power transmission. Constructed with durable nylon housing material, it ensures long-lasting performance even in harsh environments. With UL and CSA agency certifications, you can trust in its safety and quality. The connector is RoHS compliant and operates effectively in a wide temperature range from -40 to 105°C. Its plug gender and standard .062" connector type make it easy to install, while its polarized design and locking feature guarantee secure mating. Perfect for wire-to-wire connections, this connector system is a must-have for any project requiring reliable power transmission.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 03-06-1023	1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, Natural
	Molex 03-06-1042	1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 4 Circuits, without Mounting Ears, Natural
	Molex 03-06-1122	1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 12 Circuits, without Mounting Ears, Natural
	Molex 19007-0021	Flag InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Box, Tab 6.35 x 0.81mm
	Molex 19019-0012	Avikrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Box, Tab 6.35 x 0.81mm
	Molex 19164-0044	Perma-Seal Butt Splice for 14-16 AWG Wire
	Molex 19221-0240	Compression Style Ring Tongue Terminal for 1/0 AWG Wire, Stud Size 5/16 (M8), Plated
	Molex 22-01-3047	KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 4 Circuits, Natural
	Molex 39-00-0038	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel
	Molex 43020-1001	Micro-Fit 3.0 Plug Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43025-1000	Micro-Fit 3.0 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen, Black

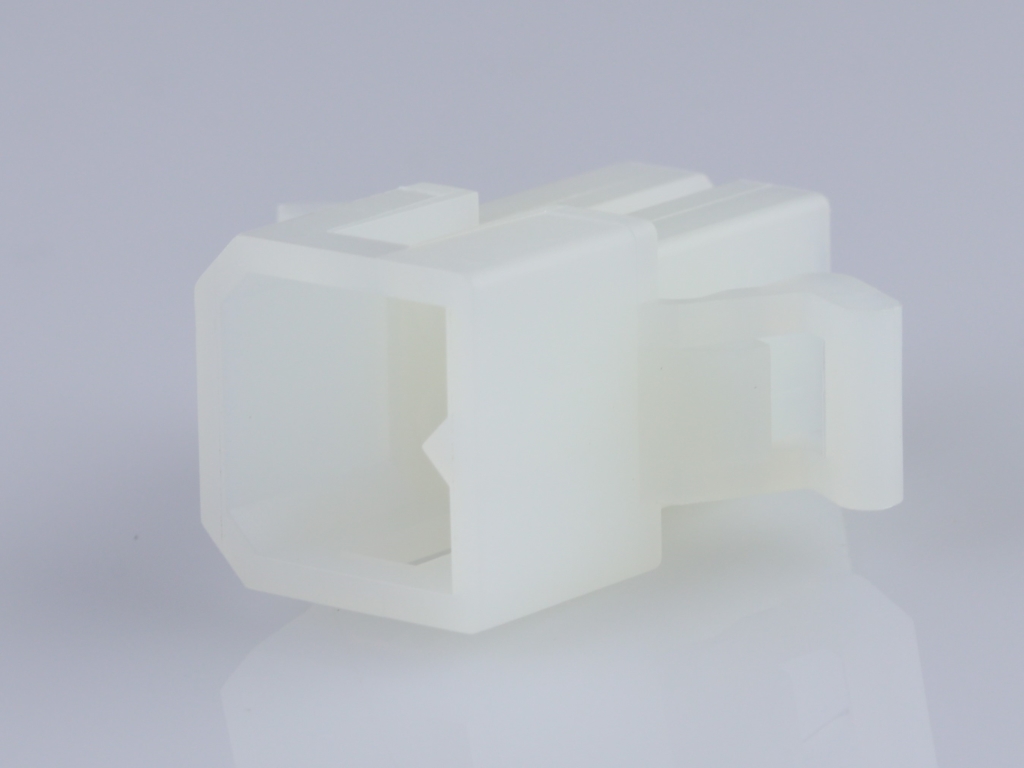

	Molex 46999-0719	1.57mm Diameter Standard .062 Pin and Socket Plug Housing, Dual Row, with Pre-bent Mounting Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits, Natural
