02-09-2611

Heilind Number:	MOL02-09-2611
Manufacturer:	Molex
Manufacturer Number:	02-09-2611
Datasheet:	RoHS Certificate of Compliance
ECAD Model:

Description:

2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 42478, Male, with Tin (Sn) Plated Contact, High Current/Low Engagement Force, 14-18 AWG, Reel

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Contacts
Manufacturer:	Molex
Manufacturer Part Number:	Molex 02-09-2611
Series:	42478 - Standard .093"
Connector Type:	Standard .093"
Gender:	Male
Termination Method:	Crimp or Compression
Contact Material:	Brass
Contact Plating:	Tin
Packaging:	Reel
Circuit Application:	Power
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	.508 µm
Mating Cycles:	25
Contact Termination Plating Thickness:	.508 µm
Wire Size:	14 AWG, 16 AWG, 18 AWG
Connector System:	Wire to Wire
Contact Termination Plating:	Tin
Wire Insulation Diameter:	3.56 mm
Part Aliases:	0002092611 42478-0001
SKU:	MOL02-09-2611

Detailed Description

Introducing the 02-09-2611, a male Standard .093" connector designed for reliable power applications. Crafted with brass contacts plated with tin, this connector ensures secure and efficient connections. Suitable for 14 AWG to 18 AWG wires, it offers versatile compatibility. With a crimp or compression termination method, installation is a breeze. Packaged on a reel for convenience, it is ideal for bulk projects. With tin plating in the contact mating area and termination area, it guarantees durability. Boasting a mating cycle of 25, it is built to last. RoHS compliant and with a wire insulation diameter of 3.56 mm, it meets international standards for safety and quality. Trust the 02-09-2611 for all your power connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 105308-1206	Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Dual Row, 6 Circuits, Black, Glow-Wire Capable
	Molex 170001-0104	Mega-Fit Receptacle Housing, Dual Row, 4 Circuit, Glow-Wire Capable, Bag
	Molex 30700-1167	2.54mm Pitch, 0.64mm Width H-DAC 64 High Density Automotive Connectors, Dual Row, Female Harness Assembly, 16 Circuits, Polarization Option 1, Gray

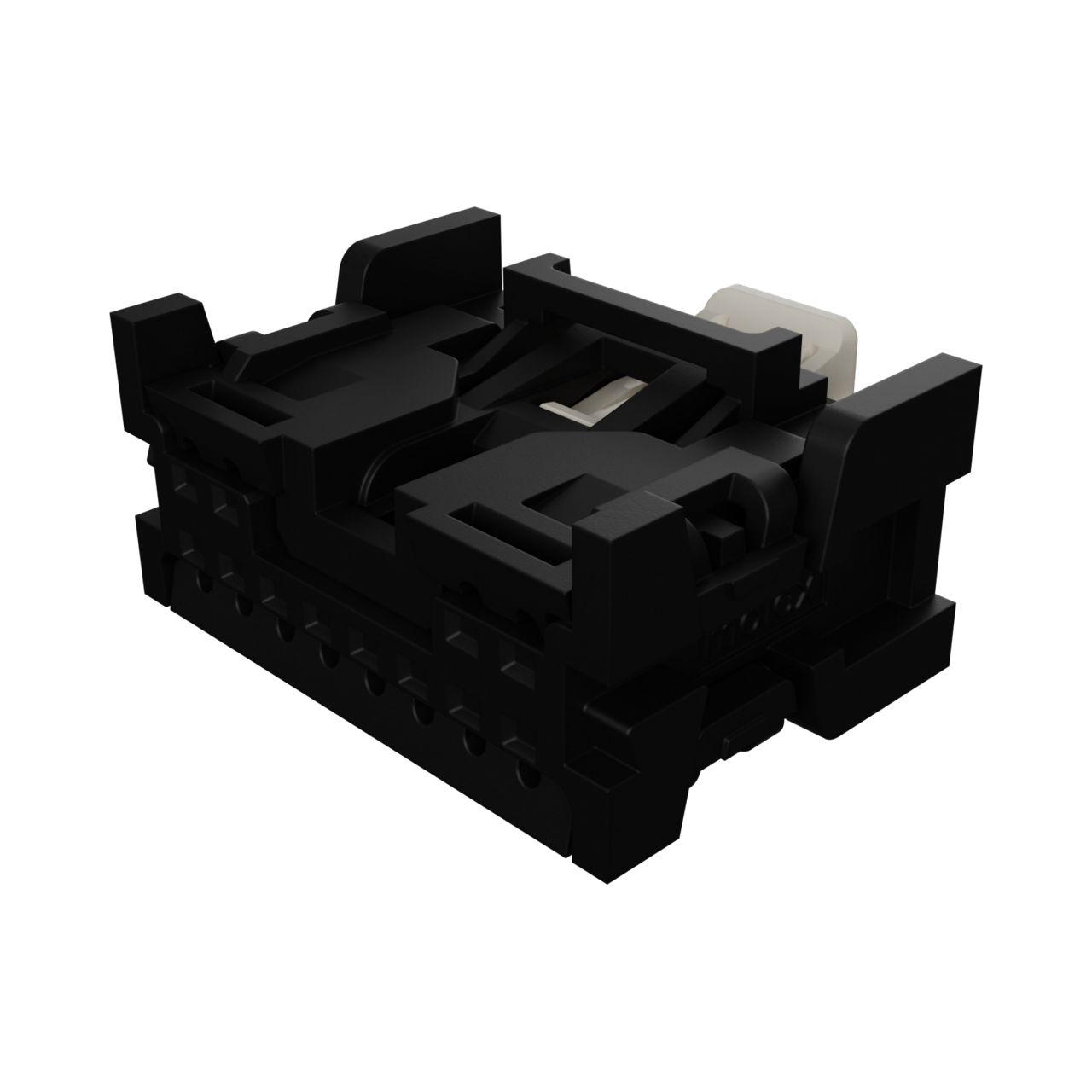

	Molex 34824-5124	Mini50 Unsealed Receptacle, Dual Row, Bridged, with CPA, 12 Circuits, EcoPaXX Resin, Polarization Option A, Black
