| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose LF13WBR-20S |
| Gender: | Female |
| Series: | LF |
| IP Rating: | IPX8 |
| Wire Size: | 26 AWG |
| Mount Type: | Panel Mount |
| Shell Size: | 13 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Shell Finish: | Nickel |
| Mating Cycles: | 1000 cycle |
| Seal Material: | Chloroprene Rubber |
| Current Rating: | 2 A |
| Voltage Rating: | 30 VAC |
| Contact Plating: | Gold |
| Housing Material: | Metal |
| Number of Contacts: | 20 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -25 °C |
| Shell Size - Insert Arrangement: | 13-20 |
| SKU: | HIRLF13WBR-20S |
LF13WBR-20S
| Heilind Number: | HIRLF13WBR-20S |
| Manufacturer: | Hirose |
| Manufacturer Number: | LF13WBR-20S |
| ECAD Model: | |
Specifications
Detailed Description
Designed for high-reliability applications, the LF13WBR-20S is a female circular connector featuring a durable metal housing and gold contact plating. With a panel mount and solder termination method, this connector ensures secure and stable connections, even in harsh environments. Its IPX8 rating guarantees protection against water and dust ingress, while its wide operating temperature range of -25°C to 85°C makes it suitable for a variety of settings. The Bayonet mating type and straight mount angle offer convenience and ease of use, with a mating cycle of 1000 ensuring long-term durability. Rated for 2A and 30VAC, this connector is RoHS compliant, making it ideal for a range of industrial and commercial applications.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Hirose 1-179958-2 | DYNAMIC D-5200S REC HSG 2P K/X |  |
 | Hirose 1-66100-9 | III+ SKT,18-16,TIN ,STRIP | |
 | Hirose 2013595-1 | INDUSTRIAL MINI I/O PLUG KIT D | |
 | Hirose 207008-5 | CABLE CLAMP, SIZE 13 | |
 | Hirose 5-747908-2 | 15 Plug Solder Cup, Gold Flash | |
 | Hirose LF13WBLP-20PA | LF Right Angle Plug, 20 Position, Bayonet Lock, Soldering Type | |

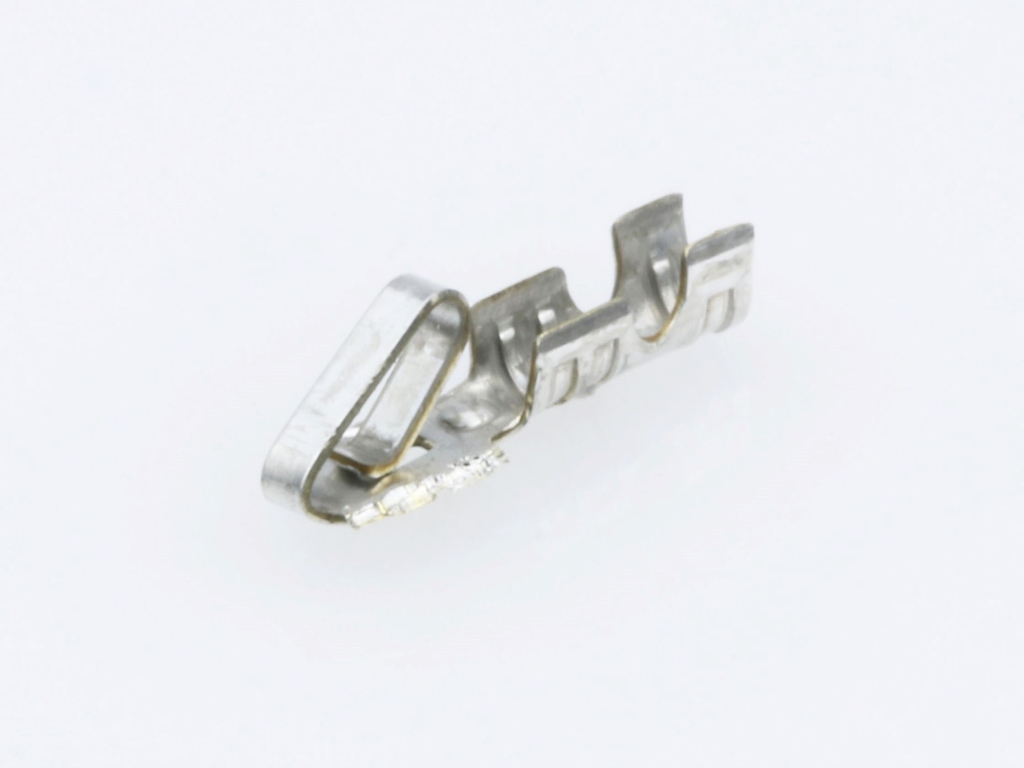

 | Hirose 08-50-0031 | KK 254 Cat Ear Crimp Terminal 4809, 22-30 AWG, Hot Tin Dip, Reel | |
