| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2-1423157-4 |
| Amperage: | 10 A at 240 VAC |
| Mount Type: | Mounting Bracket |
| Operation Type: | On-Delay |
| Repeatability: | ±10% |
| Termination Type: | Screw Terminals |
| Dimensions: | 114.8 x 65.3 x 71.9 mm, 4.523 x 2.572 x 2.832 in |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Delay Time: | 1 - 300 seconds |
| Input Voltage: | 110 - 120 VAC |
| Control Type: | Knob |
| SKU: | AMP2-1423157-4 |
2-1423157-4
Specifications
Detailed Description

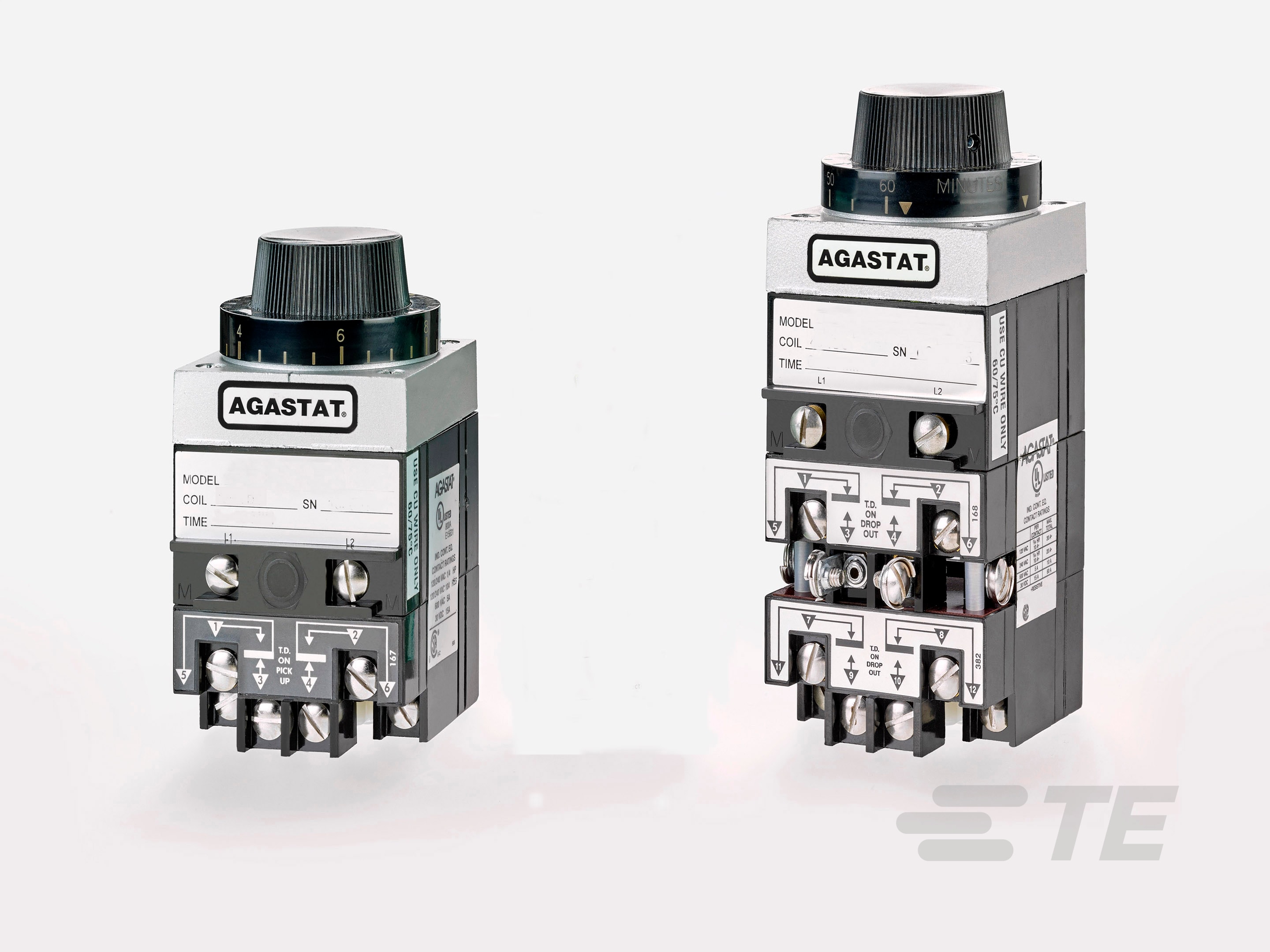

Introducing the 2-1423157-4 Time Delay Relay, a versatile and reliable solution for your industrial automation needs. This high-performance relay features a durable Mounting Bracket for easy installation, and operates as an On-Delay with a precise repeatability of ±10%. With a contact arrangement of 2 Form C (DPDT), or 2 C/O, this relay offers flexibility in your control applications. The delay time can be easily adjusted from 1 to 300 seconds using the convenient Knob control, while the termination type of Screw Terminals ensures secure connections. Measuring 114.8 x 65.3 x 71.9 mm (4.523 x 2.572 x 2.832 in), this relay is compact yet powerful, and with an amperage of 10 A at 240 VAC and input voltage range of 110-120 VAC, it is suitable for a wide range of systems. Please note, this product is not RoHS compliant. Upgrade your control setup with the 2-1423157-4 Time Delay Relay.
For Use With
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 08/31/2026 | P-26-030761 - Manufacturing location change. Following Part Numbers will be transferred from American Pride to NSK Industries. | Download | |||
| 08/30/2026 | P-26-030946 - Manufacturing location change. Following Part Numbers will be transferred from external supplier American Pride to new supplier NSK Industries. | Download | |||
| 08/10/2026 | P-26-030486 - Manufacturing location change. Following Part Numbers will be transferred from external supplier State Industrial Supply to new supplier NSK. | Download | |||
| 08/25/2025 | P-25-028553 - New Tooling. New replacement tooling for existing worn tooling. Expectation of new tooling is to consistently produce the part to meet the original design by meeting all dimensions on the print. No form, fit, function changes shall exist. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
