1423157-5

AMP1423157-5
Heilind Number:AMP1423157-5
Manufacturer:TE Connectivity
Manufacturer Number:1423157-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

7012AC=RLY,STD,ON,2P,120VAC,15

More >>

Specifications

AttributeValue
Product Category:
Relays Time Delay Relays & Timing Modules
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1423157-5
Amperage:10 A at 240 VAC
Mount Type:Mounting Bracket
Operation Type:On-Delay
Repeatability:±5%
Termination Type:Screw Terminals
Dimensions:114.8 x 65.3 x 71.9 mm, 4.523 x 2.572 x 2.832 in
Contact Arrangement:2 Form C, DPDT, 2 C/O
Delay Time:1.5 - 15 seconds
Input Voltage:110 - 120 VAC
Control Type:Knob
SKU:AMP1423157-5

Detailed Description

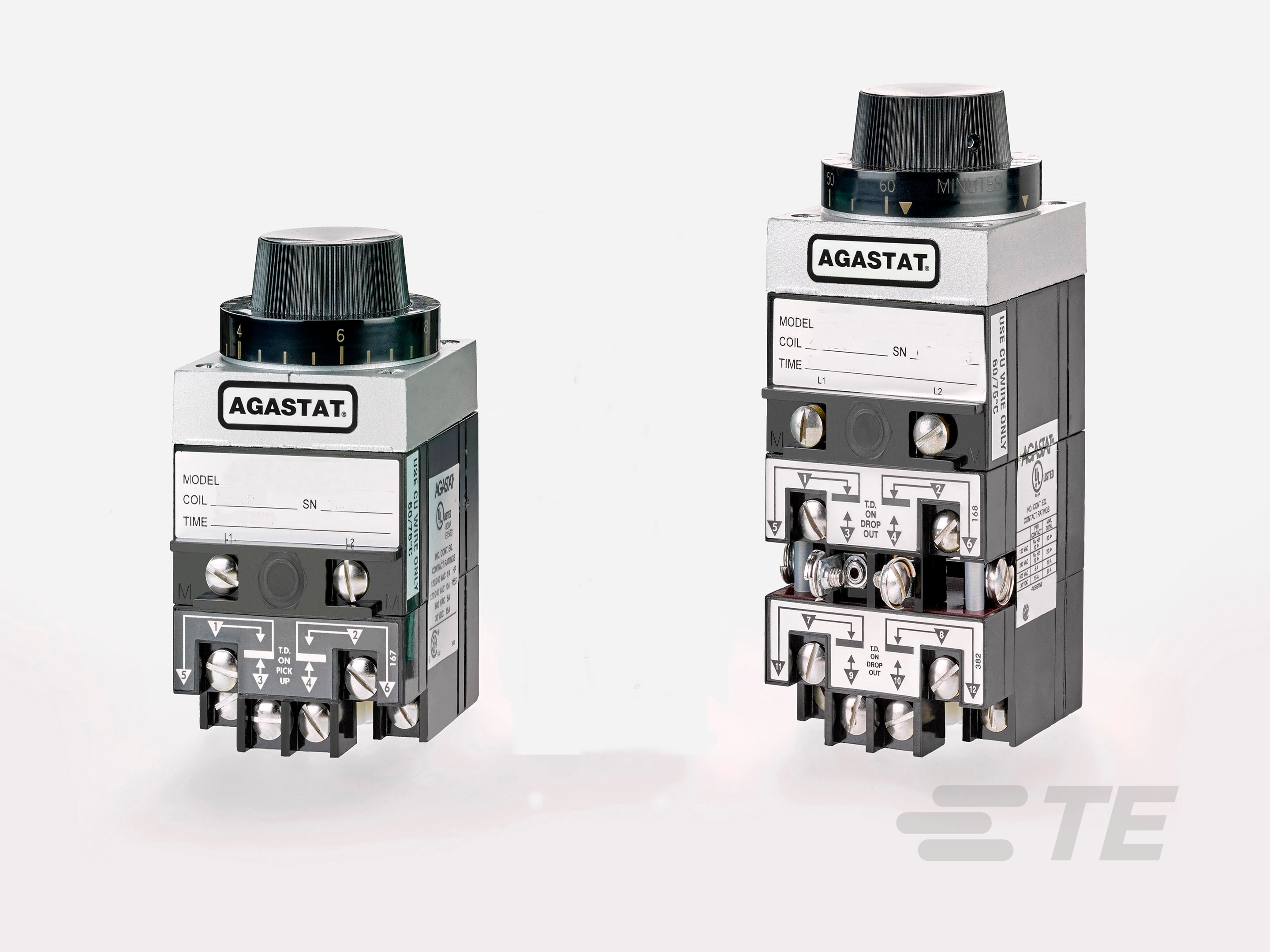

Introducing the 1423157-5 Time Delay Relay, a versatile and reliable solution for your electrical control needs. This powerful relay features a 10 A rating at 240 VAC, ensuring robust performance in a variety of applications. With a convenient Mounting Bracket design, installation is a breeze. The On-Delay operation type offers precision timing control, with a repeatability of ±5%. Screw Terminals make for easy and secure connections, while the compact dimensions of 114.8 x 65.3 x 71.9 mm allow for flexible placement. Boasting a DPDT contact arrangement (2 Form C, 2 C/O), this relay is ideal for switching between two independent circuits. The adjustable delay time, ranging from 1.5 to 15 seconds, provides customizable functionality. Powered by 110-120 VAC input voltage and featuring a user-friendly Knob control, this relay is perfect for a wide range of industrial and commercial applications. Please note, this product is not RoHS compliant. Trust in the performance and durability of the 1423157-5 Time Delay Relay for your critical operations.
