| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | American Zettler |
| Manufacturer Part Number: | American Zettler AZ2280-1A-120AF |
| Series: | AZ2280 |
| Mount Type: | Panel Mount |
| Contact Material: | Silver Cadmium Oxide |
| Maximum Operating Temperature: | 60 °C |
| Minimum Operating Temperature: | -55 °C |
| Coil Resistance: | 2500 Ohm |
| Coil Voltage: | 120 VAC |
| Power Consumption: | 1.4 VA |
| Contact Configuration: | SPST |
| Contact Current Rating: | 40 A |
| Coil Type: | Non-Latching |
| Switching Voltage: | 277 VAC |
| Contact Termination: | Quick Connect |
| SKU: | ZTRAZ2280-1A-120AF |

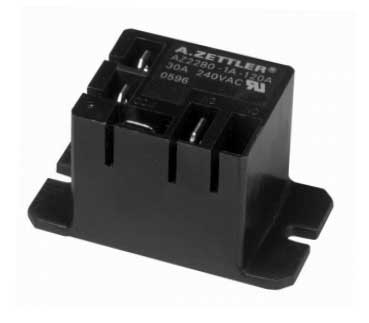

AZ2280-1A-120AF
| Heilind Number: | ZTRAZ2280-1A-120AF |
| Manufacturer: | American Zettler |
| Manufacturer Number: | AZ2280-1A-120AF |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the AZ2280-1A-120AF, a high-performance power relay from the AZ2280 series. This panel-mount relay features robust silver cadmium oxide contacts, ensuring reliable conductivity. With a wide operating temperature range from -55°C to 60°C, it is suitable for demanding environments. The coil resistance of 2500 Ohm and coil voltage of 120 VAC result in efficient power consumption of 1.4 VA. Designed with a SPST contact configuration and a current rating of 40 A, this relay is perfect for high-power applications. It is RoHS compliant and offers quick connect termination for easy installation. The AZ22801A120AF is a top choice for power management in various industries.
