1955530000

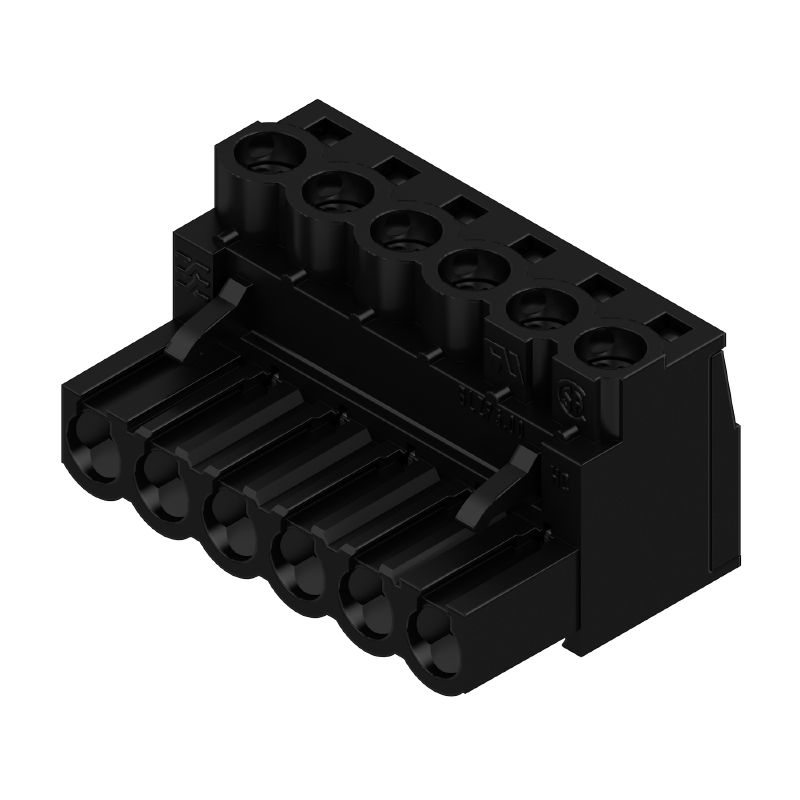

BLZP 5.00/06/180 SN BK BX R20

Attribute	Value
Product Category:	Pluggable Terminal Blocks & Headers Pluggable Terminal Blocks
Manufacturer:	Weidmuller
Manufacturer Part Number:	Weidmuller 1955530000
Connector Type:	Plug
Housing Material:	Polybutylene Terephthalate
Number of Rows:	1
Termination Method:	Clamp
Contact Material:	Copper Alloy
Contact Plating:	Tin
Pitch:	0.197 in
Number of Positions:	6
Housing Color:	Black
Wire Size:	30 to 12 AWG
Flammability Rating:	UL 94V-0
Current Rating:	23 A
Voltage Rating:	400 V
Operating Temperature:	-50 to 100 °C
Mounting Angle:	Straight
Mounting Type:	PCB Mount
SKU:	WEI1955530000
