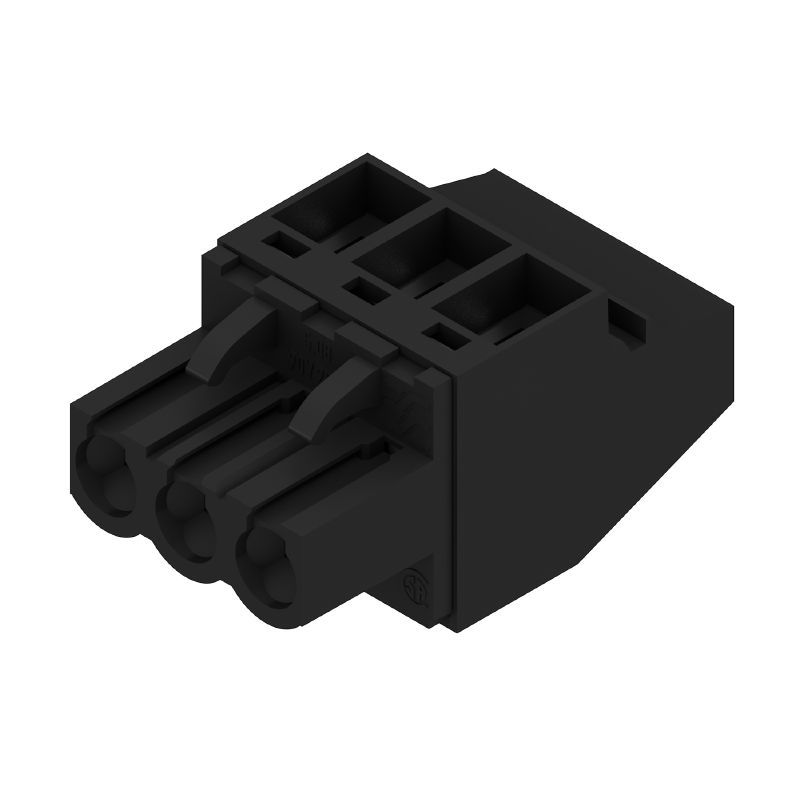

1948250000

BLZP 5.08/03/90 SN SW EA R20

Attribute	Value
Product Category:	Pluggable Terminal Blocks & Headers Pluggable Terminal Blocks
Manufacturer:	Weidmuller
Manufacturer Part Number:	Weidmuller 1948250000
Connector Type:	Plug
Housing Material:	Polybutylene Terephthalate
Number of Rows:	1
Termination Method:	Clamp
Contact Material:	Copper Alloy
Contact Plating:	Tin
Pitch:	0.2 in
Number of Positions:	3
Housing Color:	Black
Wire Size:	30 to 12 AWG
Flammability Rating:	UL 94V-0
Current Rating:	23 A
Voltage Rating:	400 V
Operating Temperature:	-50 to 100 °C
Mounting Angle:	Right Angle
Mounting Type:	PCB Mount
SKU:	WEI1948250000

Product	Part #	Description	Stock
	Weidmuller 1-33220-2	TERMINAL,SOLIS R 12-10 3/8
	Weidmuller 33466	TERMINAL,SOLIS R 6 5/16
	Weidmuller M3231	Heyco®-Tite Liquid Tight CordgripsStraight-Thru, NPT Hubs with Integral Sealing Ring, Nylon 6/6 w/Buna or TPE Sealing Gland, 0.17 Cable Diameter Min (in), 0.45 Cable Diameter Max( in)
	Weidmuller 5015	SURFACE MOUNT TEST POINT MINIATURE
	Weidmuller TDC057-2	FLAT CBL(6X6) 2' STRAIGHT TELECOM/MODULAR
	Weidmuller 39503-2003	3.50mm Pitch Eurostyle Vertical Plug, Rear Wire Entry, 3 Circuits
	Weidmuller ABM2S-A-D	The 4-way adhesive backed cable tie mount in white is mounted with rubber adhesive tape. It is 1" long x 1" wide (25.4 x 25.4 mm) and made of ABS material, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor environments and comes in packages of 500.
	Weidmuller PM2H25-M	The push barb cable tie mount requires a 0.25" (6.4 mm) hole and is natural color. It comes in packages of 1000.

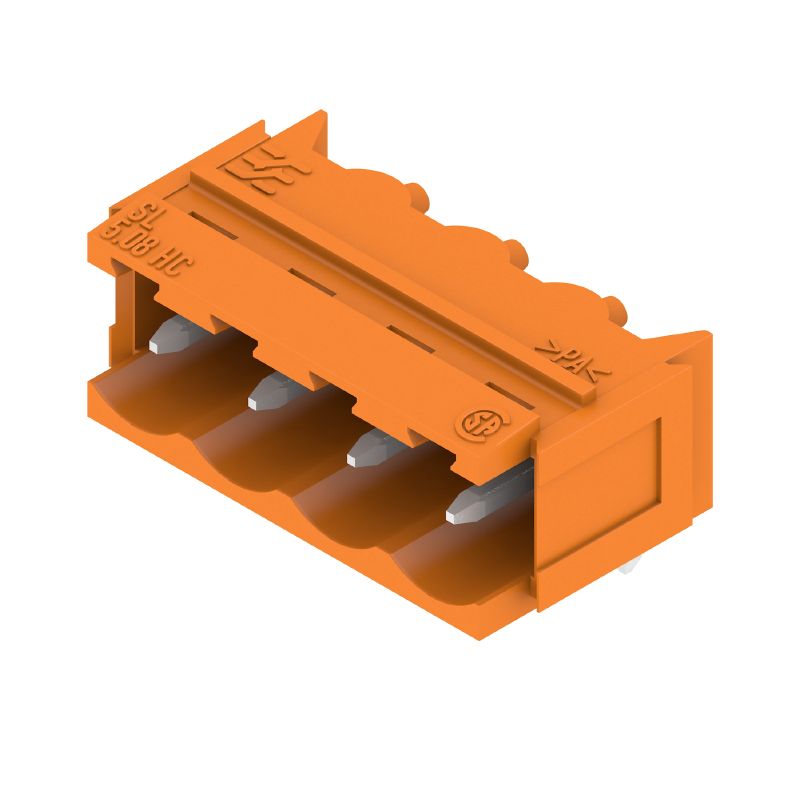

	Weidmuller 1148100000	SL 5.08HC/04/90B 3.2SN OR R20

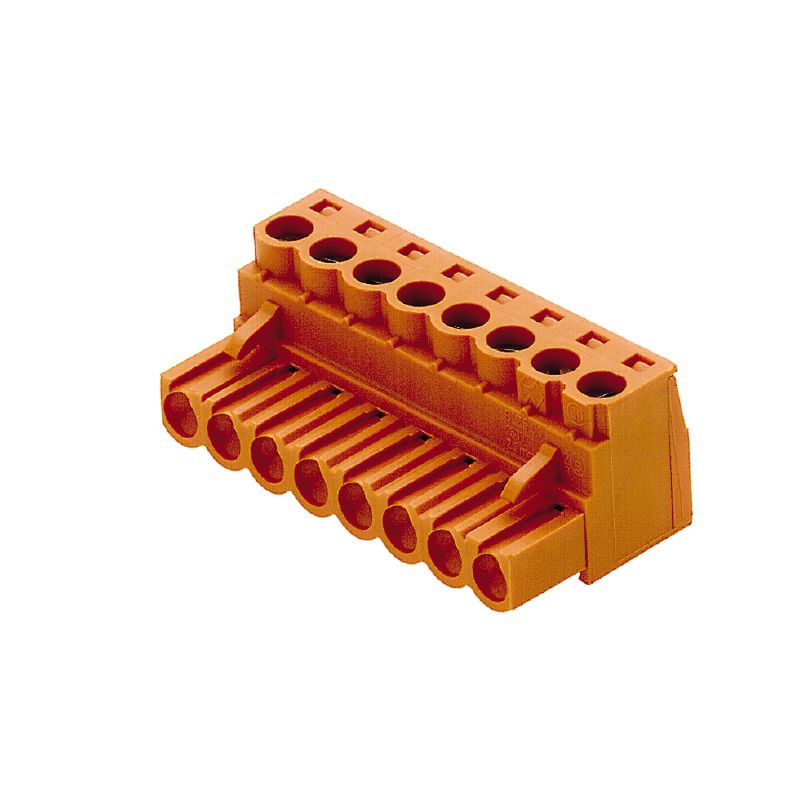

	Weidmuller 1527160000	BLZ 5.08/9 OG R20 B V24

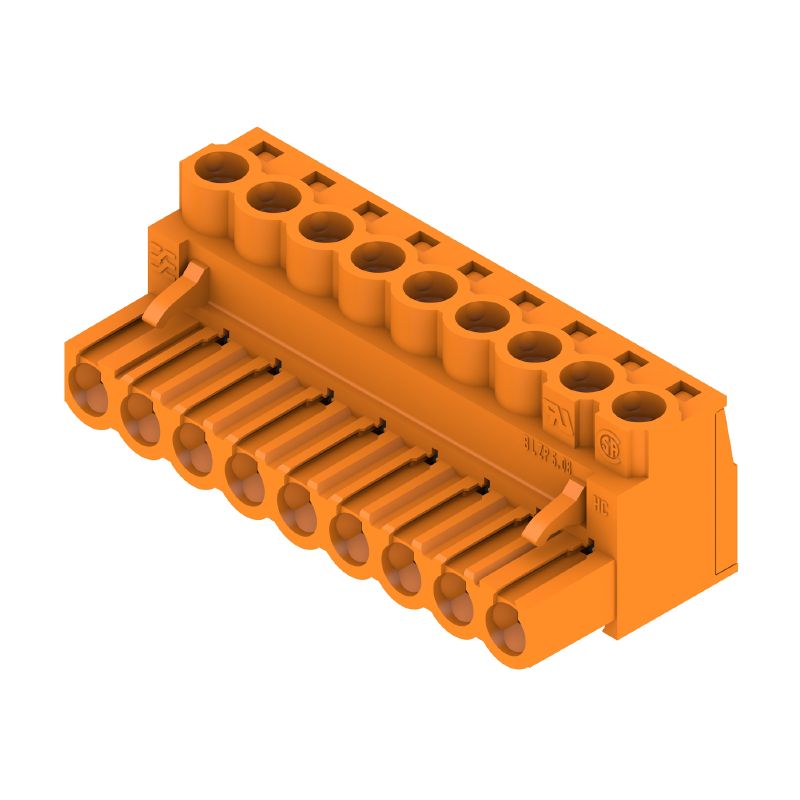

	Weidmuller 1943650000	BLZP 5.08/09/180 SN OR BX R20
