231-602

Han® EE module, male, 8 contacts, 16 A, 400 V

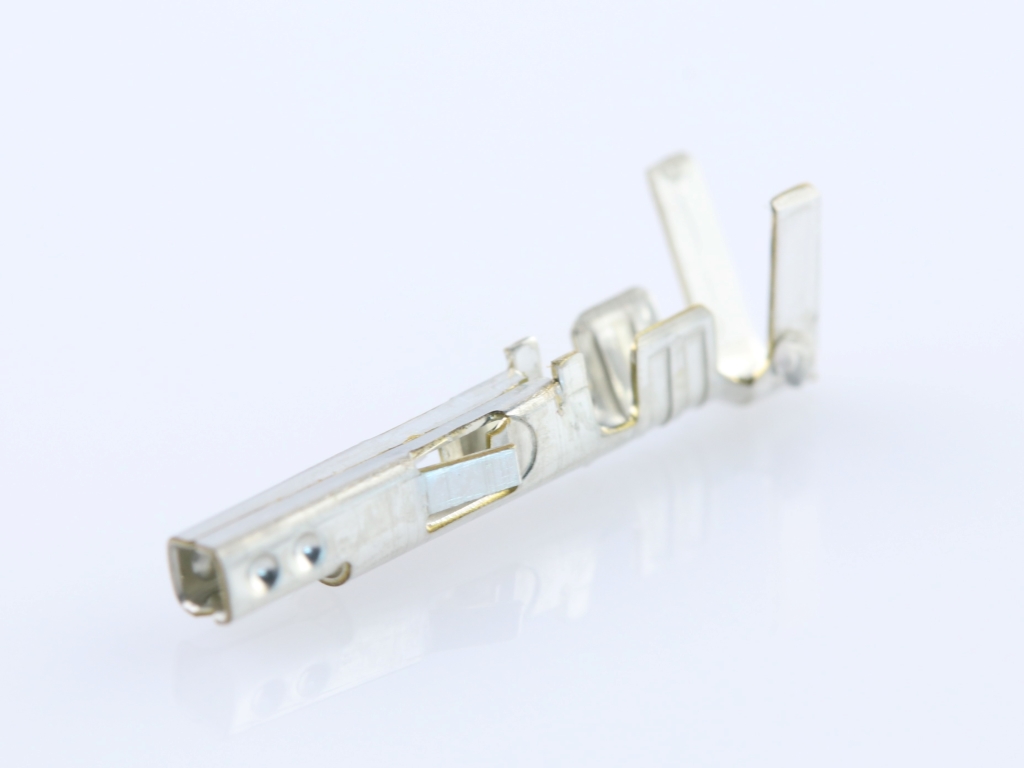

Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, Double 22+22 or Single 24-18 AWG, Reel

Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Natural

Mini-Fit Plus High Mating Cycle Female Crimp Terminal, 20-18 AWG, Select Gold (Au) Plating with Proprietary Molex Advanced Contact Surface Finish (CSF) in Contact Area

Ferrule, non-insulated, 1 AWG wire range, 0.71(18.0mm) length.

Insulated ferrules, single wire red DIN end sleeve on reel, (1.00mm2), 8mm Pin Length.

The fir tree push mount assembly is black and requires a panel hole diameter of 0.25 to 0.28" (6.3 to 7.1 mm). It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 500 and has a maximum bundle diameter of 3.0" (76.2 mm).

Orange, 2:1 Shrink Ratio, Single Wall Tubing, Shrinks To .748 in [19 mm], Irradiated Modified Polyolefin, 1.575 in [40 mm] Inner Diameter

1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 2-pole; gray

1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 2-pole; Lateral locking levers; gray

Strain relief housing; for female and male connectors; 2 parts; Pin spacing 5 mm; 2-pole; gray

1-conductor female connector; CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 3-pole; 100% protected against mismating; light gray

1-conductor male connector; CAGE CLAMP®; 1.5 mm²; Pin spacing 3.81 mm; 2-pole; 100% protected against mismating; orange

Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Red status indicator; Module width: 6 mm; 2,50 mm²; gray

Jumper; for jumper slot; 2-way; insulated; light gray

End and intermediate plate; 1 mm thick; gray
