2006-1201

Heilind Number:	WAG2006-1201
Manufacturer:	WAGO
Manufacturer Number:	2006-1201
ECAD Model:

Description:

2-CONDUCTOR THROUGH TERMINAL B

More >>

Specifications

Attribute	Value
Product Category:	DIN Rail Terminal Blocks & Interface Modules DIN Rail Terminal Blocks
Manufacturer:	WAGO
Manufacturer Part Number:	WAGO 2006-1201
Housing Material:	Nylon
Mount Type:	DIN Rail Mount
Maximum Operating Temperature:	105 °C
Minimum Operating Temperature:	-60 °C
Overall Width:	0.295 in
Overall Height:	2.26 in
Part Aliases:	20061201
SKU:	WAG2006-1201

Detailed Description

Introducing the 2006-1201 DIN Rail Mount Terminal Block, a versatile and durable solution for your connectivity needs. Crafted from high-quality nylon, this terminal block is designed to withstand extreme operating temperatures ranging from -60°C to 105°C, ensuring reliable performance in any environment. With a compact overall width of 0.295 inches and a height of 2.26 inches, it is perfect for space-constrained applications. Featuring RoHS compliance, you can trust in its environmental responsibility. The 2006-1201 is the perfect choice for professionals seeking a dependable and efficient terminal block for their projects.

Frequently Bought Together

Product	Part #	Description	Stock
	WAGO 2-323680-5	TERMINAL,SOLIS R HT 12-10 10
	WAGO 2053	Heyco® Snap Bushings, Nylon 6/6, 0.41 Overall Height (inches), 0.5 Mounting Hole Diameter (in), 0.39 Inside Diameter (inches)
	WAGO 39-00-0040	Mini-Fit Male Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass Contact, Double 22+22 or Single 24-18 AWG, Reel
	WAGO DNF18-187-C	The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
	WAGO PLF1MB-M	Pan-Ty® flag tie, flag, miniature cross section, 4.0 (101mm) length, .31 x .92 (7.9 x 23.4mm) marker write-on area, nylon 6.6, natural, bulk package.
	WAGO PN14-10R-M	Ring Terminal, 18 “ 14 AWG, #10 stud size, nylon insulated, bulk package.

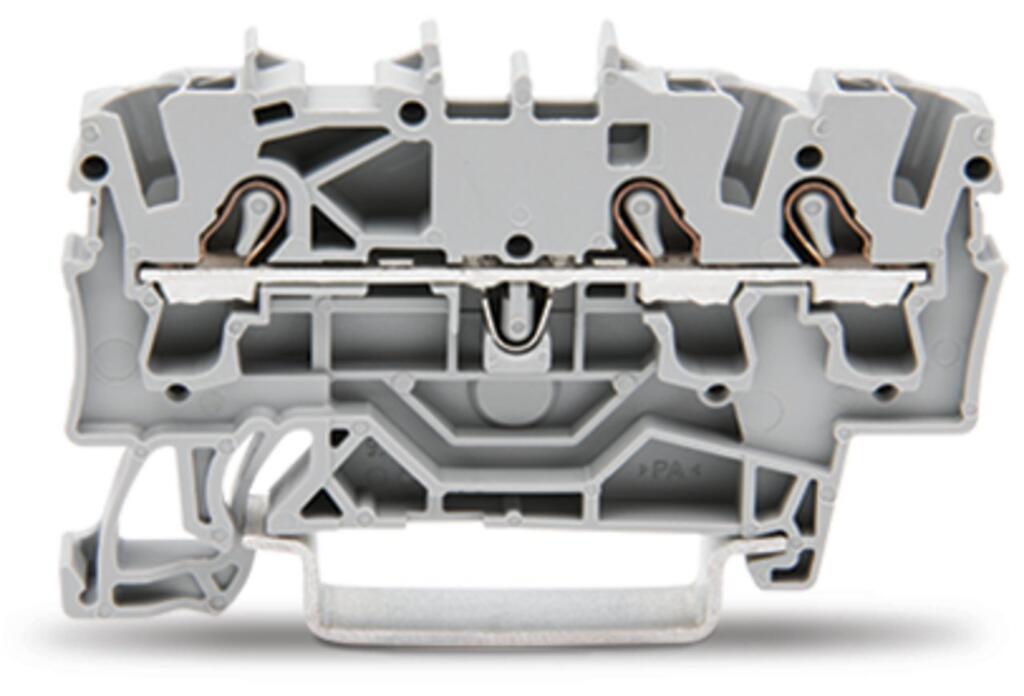

	WAGO 2002-1301	3 CONDUCTOR RL MTD TERM B

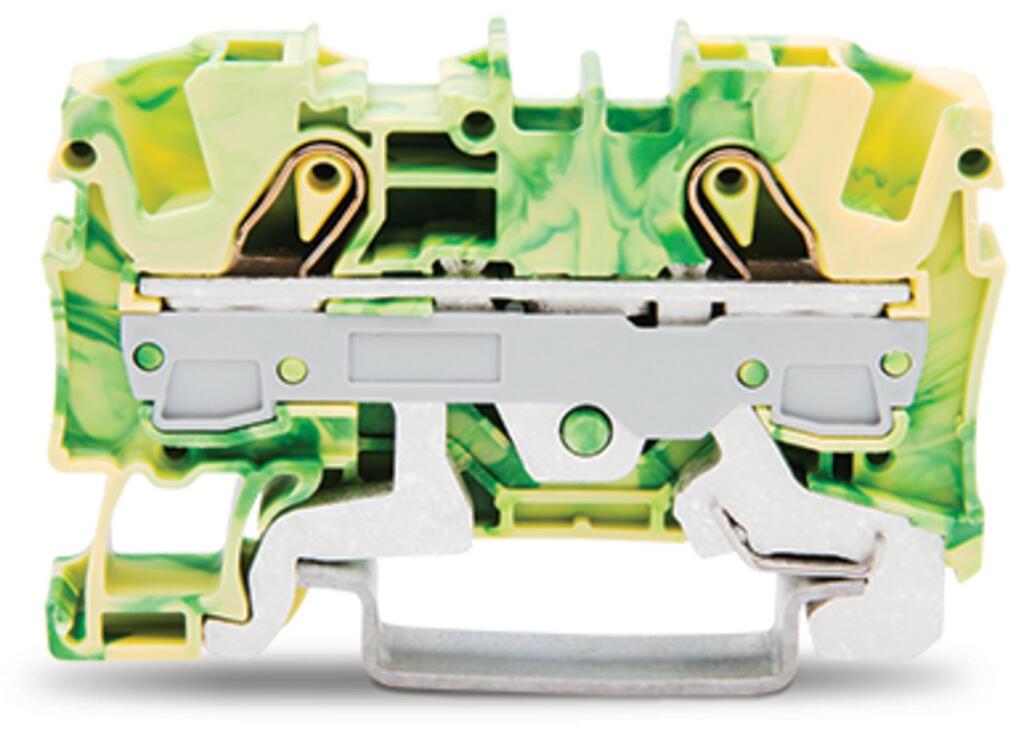

	WAGO 2006-1207	2-CONDUCTOR GROUND TERMINAL BL
	WAGO 2006-1292	END / INTERMEDIATE PLATE

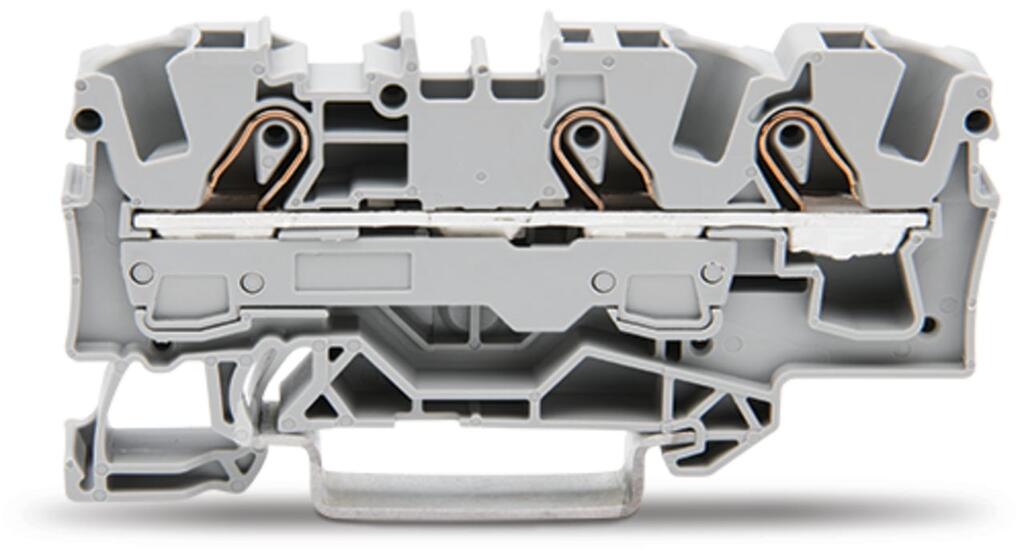

	WAGO 2006-1301	3-CONDUCTOR THROUGH TERMINAL B
