2002-3238

ICC Number:	WAG2002-3238
Manufacturer:	WAGO
Manufacturer Number:	2002-3238
Datasheet:	Datasheet
ECAD Model:

Description:

Triple-deck terminal block; 6-conductor through terminal block; L; with marker carrier; suitable for Ex e II applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Specifications

Attribute	Value
Product Category:	DIN Rail Terminal Blocks & Interface Modules DIN Rail Terminal Blocks
Manufacturer:	WAGO
Manufacturer Part Number:	WAGO 2002-3238
Housing Material:	Nylon
Mount Type:	DIN Rail Mount
Maximum Operating Temperature:	105 °C
Minimum Operating Temperature:	-60 °C
Overall Width:	0.205 in
Overall Height:	3.673 in
Part Aliases:	20023238
SKU:	WAG2002-3238

Frequently Bought Together

Product	Part #	Description	Stock
	WAGO 2002-1491	End and intermediate plate; 0.8 mm thick; gray

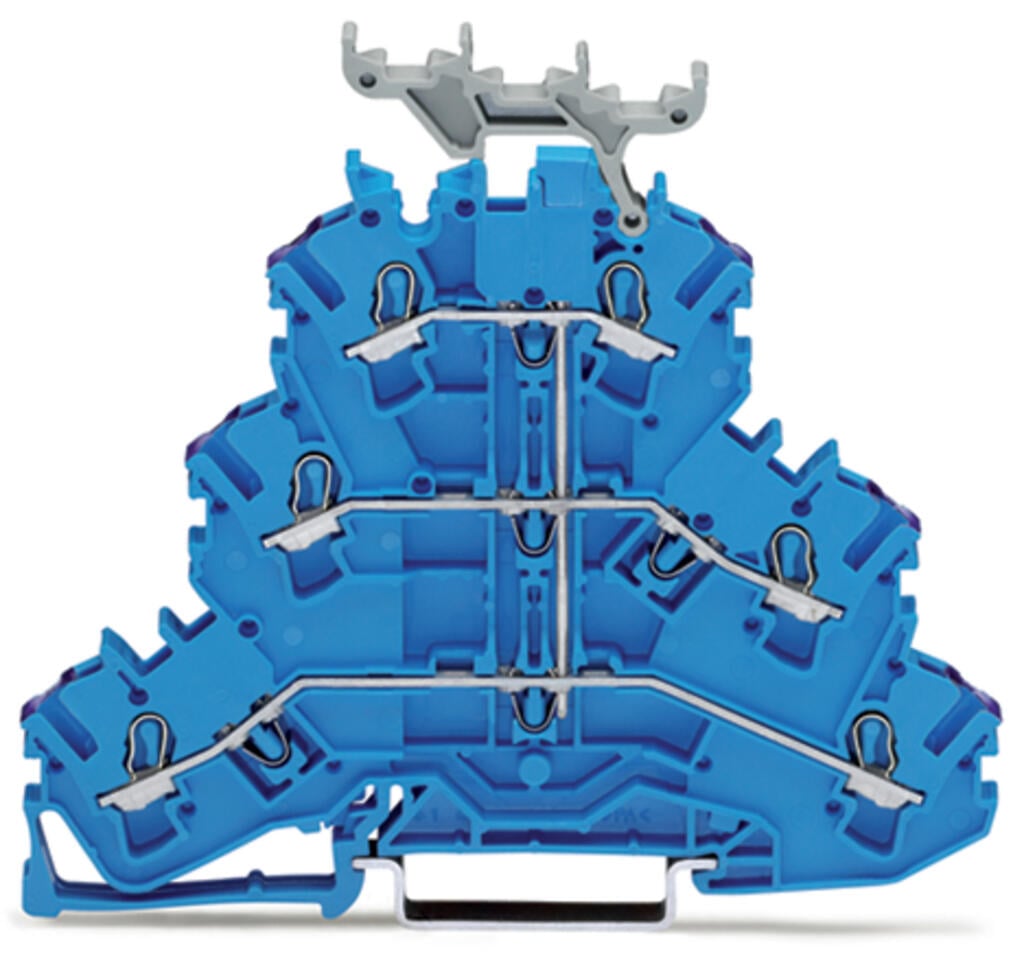

	WAGO 2002-3239	Triple-deck terminal block; 6-conductor through terminal block; N; with marker carrier; for Ex e II and Ex i applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; blue
