| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | WAGO |
| Manufacturer Part Number: | WAGO 2002-3208 |
| Housing Material: | Nylon |
| Mount Type: | DIN Rail Mount |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -60 °C |
| Overall Width: | 0.205 in |
| Overall Height: | 3.673 in |
| Part Aliases: | 20023208 |
| SKU: | WAG2002-3208 |
2002-3208
| ICC Number: | WAG2002-3208 |
| Manufacturer: | WAGO |
| Manufacturer Number: | 2002-3208 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Description:
Triple-deck terminal block; 6-conductor through terminal block; L; without marker carrier; suitable for Ex e II applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
More >>Specifications
Detailed Description
Introducing the WAGO TOPJOB S 6COND TRIDECK LT, a versatile DIN Rail Mount terminal block designed for efficient and reliable electrical connections. Made from durable nylon, this terminal block is built to withstand extreme operating temperatures ranging from -60°C to 105°C. With a compact overall width of 0.205 inches and a height of 3.673 inches, it is suitable for space-restricted installations. Featuring six connection points and a tri-deck design, it allows for easy and organized wiring of multiple conductors. Rest assured, this terminal block is RoHS compliant, making it a environmentally friendly choice for your projects. With SKU 2002-3208, it is readily available for immediate shipping. Upgrade your connectivity solutions with the WAGO TOPJOB S 6COND TRIDECK LT.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | WAGO 35664 | TERMINAL,SOLIS R 8 1/2 |  |
 | WAGO 828904-1 | Automotive Seals & Cavity Plugs, Single Wire Seal (SWS), Cavity Diameter .205 in [5.2 mm], Silicone, Poor, 50, Timer Connector System | |
 | WAGO 082-5375 | RF Connector N-Type Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm | |
 | WAGO 19000005090 | Cable gland, Size: M25, Material: Metal | |
 | WAGO 2002-3231 | Triple-deck terminal block; Through/through/through terminal block; L/L/L; with marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray | |
 | WAGO 2002-3291 | End and intermediate plate; 0.8 mm thick; gray | |
 | WAGO 2002-403 | Jumper; 3-way; insulated; light gray | |

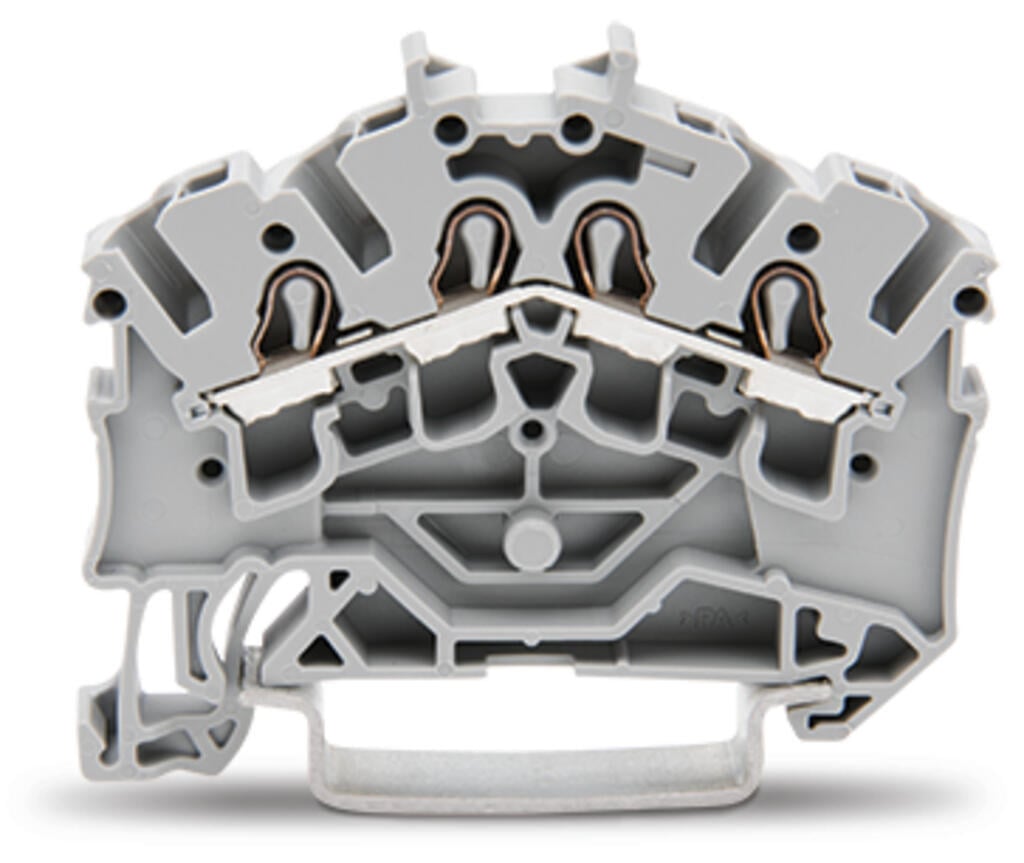

 | WAGO 2002-6401 | 4-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray | |
 | WAGO 2006-1301 | 3-conductor through terminal block; 6 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; gray | |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| WAGO: | 2002-3208 |
| Other Names: | 20023208 |
