180-026-173L000

$TEX180_026_173L000$

Heilind Number:	TEX180-026-173L000
Manufacturer:	NorComp
Manufacturer Number:	180-026-173L000
Datasheet:	Datasheet
ECAD Model:

Description:

Male High-Density Crimp & Poke D-Sub 26 Position Straight Crimp and Poke

More >>

Specifications

Attribute	Value
Product Category:	D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:	NorComp
Manufacturer Part Number:	NorComp 180-026-173L000
Series:	180
Gender:	Plug
Termination Method:	Crimp
Maximum Operating Temperature:	100 °C
Minimum Operating Temperature:	-50 °C
Mount Angle:	Straight
Number of Positions:	26
Shell Material:	Steel
Signal Wire Size:	24-26 AWG
Shell Finish:	Nickel Plated
Current Rating:	3 A
SKU:	TEX180-026-173L000

Detailed Description

Introducing the 180-026-173L000, a high-density Male Crimp & Poke D-Sub Connector designed for reliable signal transmission in industrial environments. With 26 straight termination positions, this plug connector offers seamless integration into your system. Constructed with a durable steel shell and nickel-plated finish, it ensures long-lasting performance, even in harsh conditions. Its crimp termination method accommodates 24-26 AWG signal wires, with a current rating of 3 A. Operating efficiently between -50 °C and 100 °C, this connector is RoHS compliant, guaranteeing environmentally friendly usage. Perfect for IO applications, it's a must-have for your connectivity needs. Upgrade to the 180-026-173L000 and experience seamless signal transmission in your systems.

Frequently Bought Together

Product	Part #	Description
	NorComp 1-480763-0	05P UMNL PLUG HSG NATL
	NorComp 52924	TERMINAL,PIDG SPR SPD 26-22 6
	NorComp 66506-9	PIN CONTACT, 20 DF
	NorComp 8-36160-1	TERMINAL,PIDG R 16-14 10
	NorComp 10070165-00119ALF	OEM ITEM10070165-00119ALF-MICROTCA 48V
	NorComp 8309-6003	7100087926 UU004869929
	NorComp 08-50-0113	KK 254 Crimp Terminal, 22-30 AWG, Hot Tin (Sn) Dip Plating

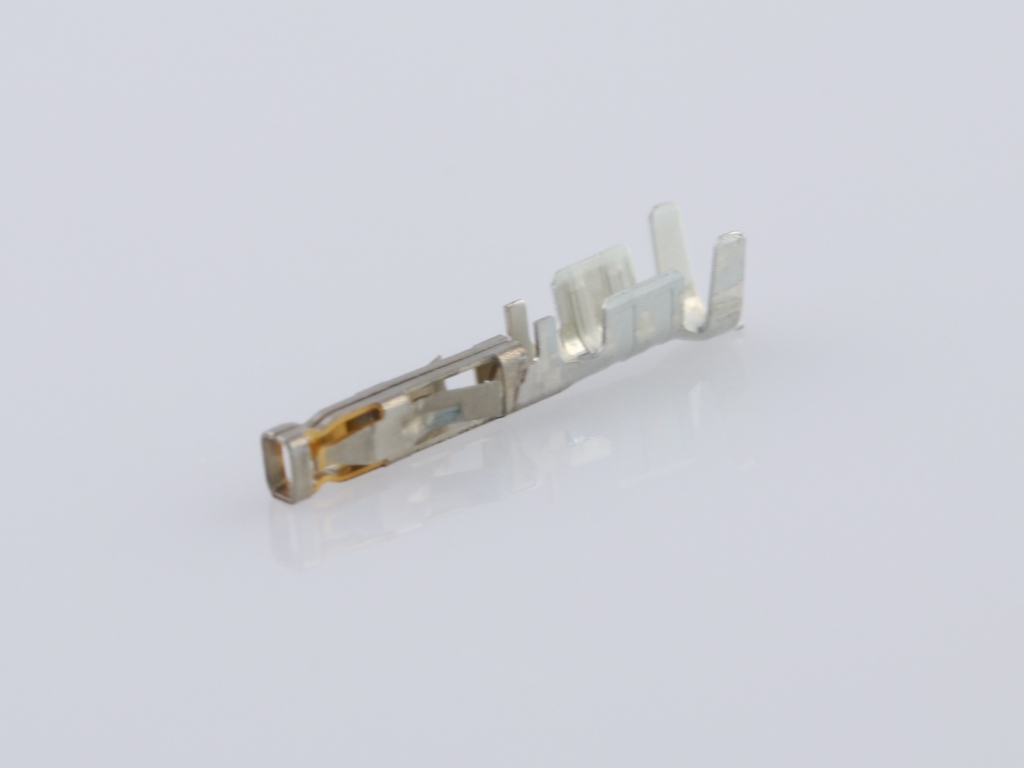

	NorComp 46235-5002	Micro-Fit RMF High Mating Cycle, Reduced Mating Force, Crimp Terminal, Female, with 0.76µm Selective Gold (Au) over Nickel (Ni), 24-20 AWG, with Lubricant
