CGPT-1.5/0.5-5-SP
CGPT-1.5/0.5-5-SP
Part Aliases: TE Connectivity | Raychem 3078714001

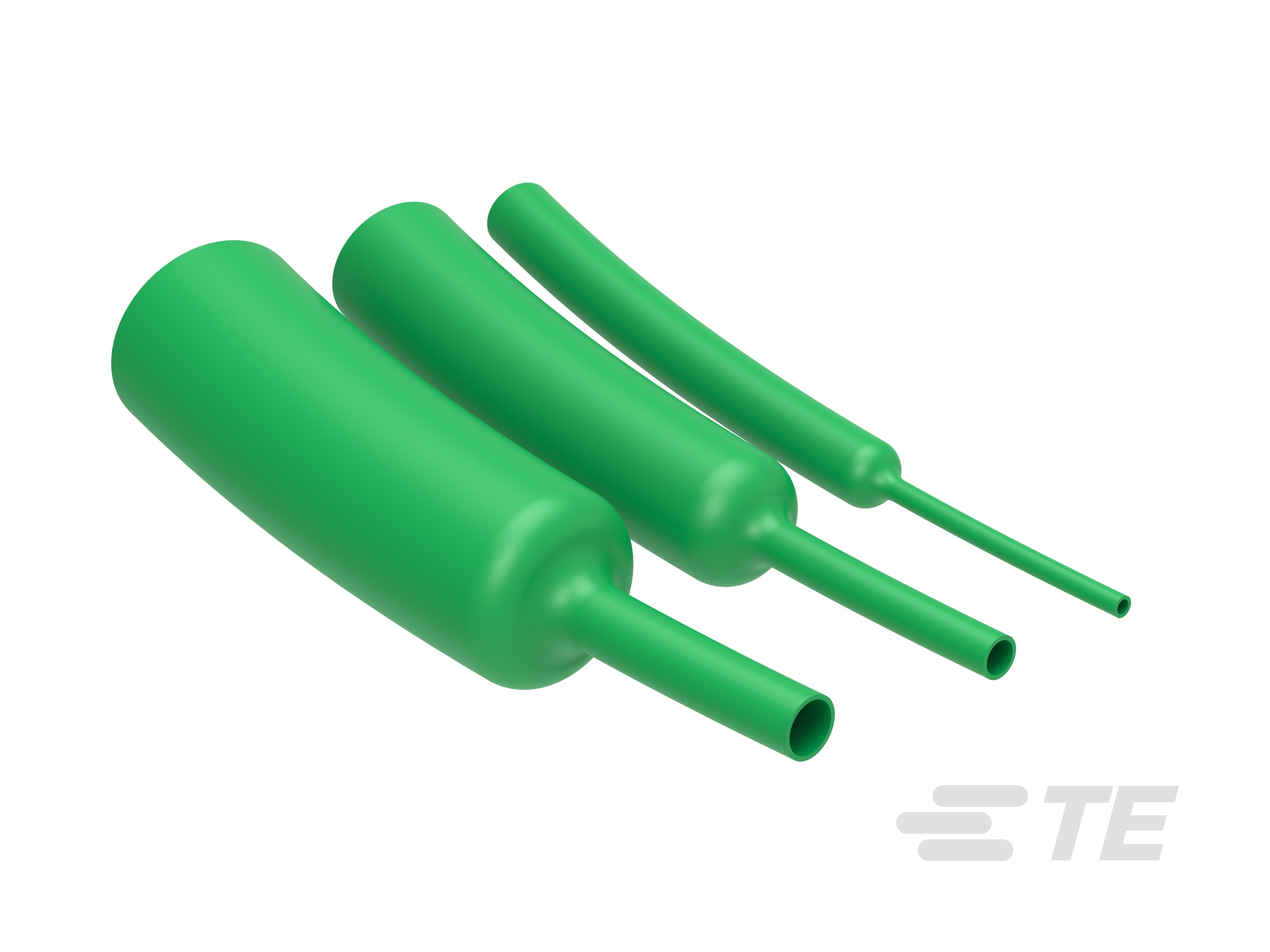

The CGPT-1.5/0.5-5-SP is a high-quality heat shrink tubing designed for versatile use in HVAC systems and beyond. Constructed from durable irradiated modified polyolefin, this tubing offers reliable protection with a 3:1 shrink ratio and a shrink temperature of 80 °C. Its operating temperature range of -40 to 135 °C ensures performance in various environments. The green tubing has an expanded diameter of 1.5 mm and a recovered diameter of 0.5 mm, providing a snug fit for wires and cables. Perfect for abrasion protection, it is a must-have for any project requiring secure and durable wire management solutions.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity | Raychem |
| Manufacturer Part Number: | TE Connectivity | Raychem CGPT-1.5/0.5-5-SP |
| Color: | Green |
| Material: | Irradiated Modified Polyolefin |
| Shrink Ratio: | 3:1 |
| Shrink Temperature: | 80 °C |
| Operating Temperature Range: | -40 - 135 °C |
| Product: | Heat Shrink Tubing |
| Recovered Diameter: | .02 in, .5 mm |
| Expanded Diameter: | .059 in, 1.5 mm |
| Part Aliases: | 3078714001 |
| SKU: | RYCCGPT-1.5/0.5-5-SP |
| series: | Raychem CGPT |
| Flexibility: | Flexible |
| Fluid Type: | Gasoline / Hydraulic Fluid / Lubricating Oil / Water |
| Recovered Wall Thickness (Tolerance): | .12 mm / .005 in |
| Size Range: | .5 - 1.5 mm / .02 - .059 in |
| Recovered Wall Thickness (Nominal): | .45 mm / .018 in |
| Voltage (Max): | .6 kV |
| Low Outgassing: | No |
| Product Source: | Czech Republic |
| Wall Type: | Single |
| Product Family: | CGPT |
| Flammability: | Flame-Retardant |
| Fluid Resistance: | Splash Protection |
| Recovery Temperature: | 120 °C |
| Resistant To: | Fluids / Mechanical Damage / Strain |
| Part Alias: | 3078714001,2-1192332-3 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
