P7-631142

OTTP7_631142
Heilind Number:OTTP7-631142
Manufacturer:OTTO Controls
Manufacturer Number:P7-631142
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

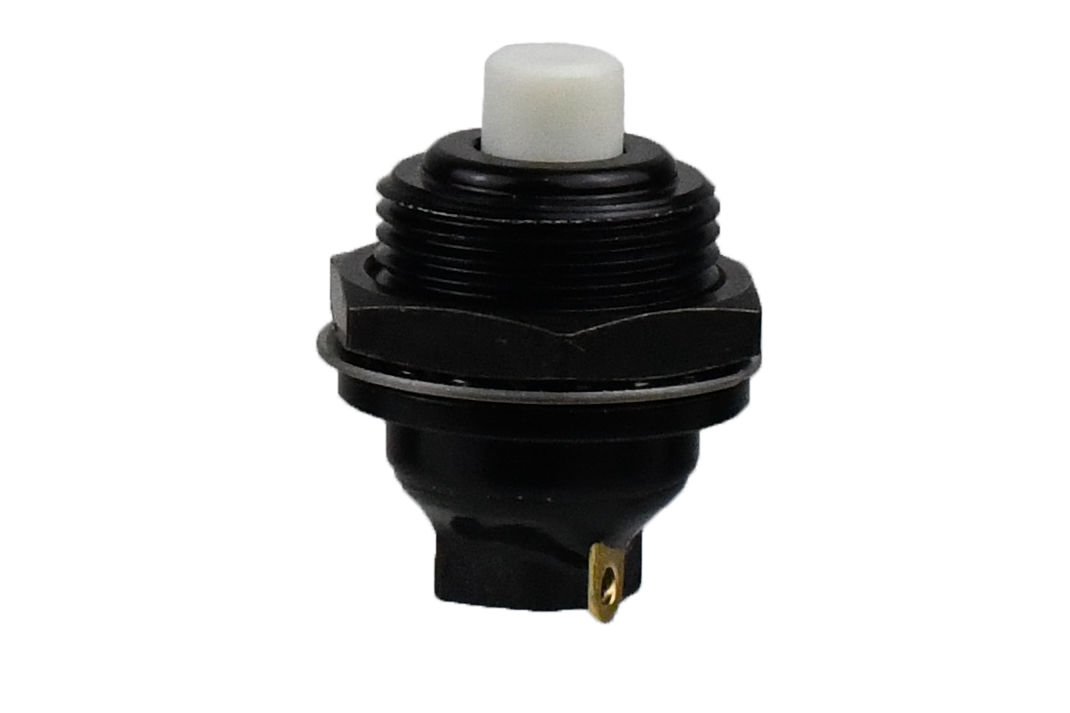

Subminiature Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-631142
Series:P7
Cap Color:Black
IP Rating:Symbol 3
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Raised)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-631142

Detailed Description

The P7 Subminiature Momentary Action Pushbutton Switch ( P7-631142) offers reliable performance in a compact design, ideal for various electronic applications. Constructed with a durable aluminum housing and brass contacts plated with gold, this switch ensures longevity even in demanding environments. With a temperature range of -55°C to 85°C and an IP rating of Symbol 3 for dust and moisture resistance, it is suitable for use in diverse settings. The SPST-NO contact configuration and OFF-ON switch function provide precise control, while the raised button actuator allows for easy operation. Rated for 5A at 115VAC and 28VDC, this switch is suitable for power applications. Its solder termination and panel mount design offer easy installation. With a black cap and silver case, it combines functionality with a sleek appearance. RoHS compliant and with a durability rating of 25,000 cycles, the P7 switch guarantees both performance and environmental responsibility. (IM)
