| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 92315-1020 |
| Color: | Natural |
| Series: | 92315 - Picoflex |
| Amperage: | 1.2 A |
| Connector Type: | Picoflex |
| Gender: | Female |
| Termination Method: | IDT or Pierce |
| Contact Material: | Phosphor Bronze |
| Overall Length: | 0.20m |
| Pitch: | 1.27 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Connector A Gender: | Female |
| Connector B Gender: | Female |
| Cable Type: | PVC, Ribbon Cable |
| Cable Length: | 2 m |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.032 µm |
| Number of Contacts Loaded: | 10 |
| Shielded: | No |
| Contact Termination Plating Thickness: | 2.032 µm |
| Wire Size: | 28 AWG |
| Contact Termination Plating: | Tin |
| Lock to Mating Part: | No |
| Waterproof Dustproof: | No |
| Connector Assembly Type: | Dual Ended Connectors |
| Connector To Connector: | Picoflex IDT to IDT |
| Part Aliases: | 0923151020 |
| SKU: | MOL92315-1020 |
92315-1020
| Heilind Number: | MOL92315-1020 |
| Manufacturer: | Molex |
| Manufacturer Number: | 92315-1020 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:

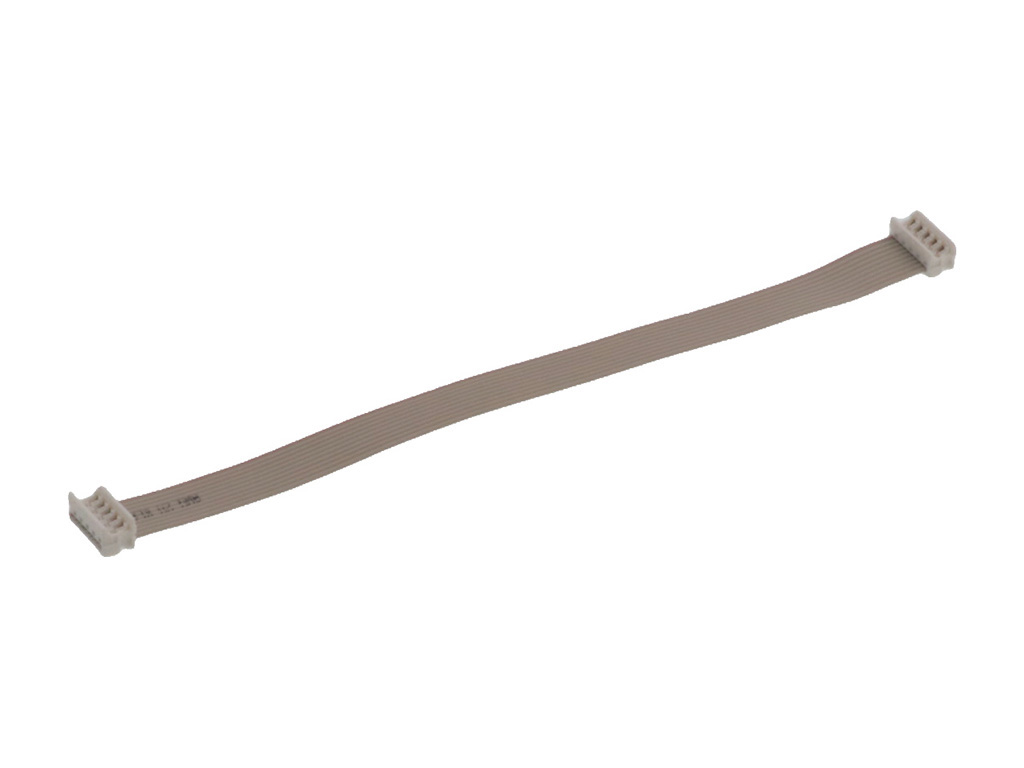

Picoflex PF-50 IDT-to-Picoflex PF-50 IDT Cable Assembly, 0.20m Length, Tin (Sn) Plating, 10 Circuits
More >>Specifications
Detailed Description
Introducing the 92315-1020, a high-performance Picoflex PF-50 IDT-to-Picoflex PF-50 IDT Cable Assembly designed for seamless connectivity in electronic systems. With a length of 0.20m and featuring durable tin (Sn) plating, this cable ensures reliable signal transmission across its 10 circuits. The natural color and polyester construction provide both aesthetic appeal and robustness, while the 1.2 A amperage and 250 V voltage rating guarantee safe and efficient operation. Each female Picoflex connector is meticulously crafted from phosphor bronze with tin plating, offering excellent conductivity and corrosion resistance. Ideal for use with 28 AWG wire, this cable assembly is RoHS compliant, making it a sustainable choice for various applications in wire management, including in hi-rel environments. Trust in the 92315-1020 for premium quality and performance in your connectivity needs.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 01/01/2024 | 513593 - Equipment Transfer, Production Transfer or Rearrangement. This notification is to inform you about equipment transfer that have been used to manufacture impacted part(s). Equipment have been moved to different site/ location/ premises. No changes will be made to product as part of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 92315-1020 |
| Other Names: | 0923151020 |
