| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 90327-0322 |
| Color: | White |
| Series: | 90327 - Picoflex |
| Amperage: | 1.2 A |
| Connector Type: | Picoflex |
| Housing Material: | Polyester |
| Number of Contacts: | 22 |
| Number of Rows: | 2 |
| Termination Method: | IDT or Pierce |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 1.27 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Mount Angle: | Vertical |
| Component Type: | Housing |
| Wire Type: | Ribbon Cable |
| Packaging: | Bag |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 22 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Polarized to Mate: | Yes |
| Wire Size: | 26 AWG, 28 AWG |
| CSA Agency Certification: | LR19980 |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1 mm |
| Termination Pitch: | 1.27 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Shroud Type: | Fully |
| Product Name: | Picoflex |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0903270322 |
| SKU: | MOL90327-0322 |
90327-0322
| Heilind Number: | MOL90327-0322 |
| Manufacturer: | Molex |
| Manufacturer Number: | 90327-0322 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:

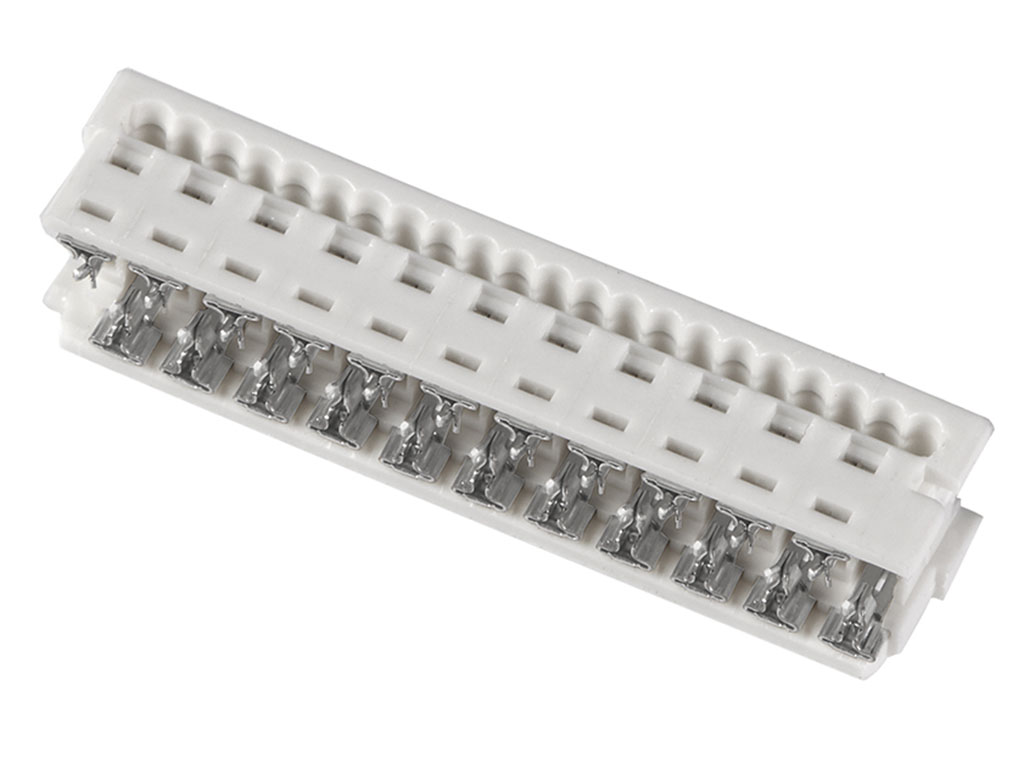

Picoflex PF-50, Low Profile, IDT Receptacle, 22 Circuits, White, Tin (Sn) Plated, Bag
More >>Specifications
Detailed Description
The Picoflex PF-50 is a low-profile IDC receptacle designed for 22-circuit connections in ribbon cable assemblies. With a vertical mount angle, this white housing features durable polyester construction and tin-plated contacts, offering reliable performance in a wide operating temperature range from -40 to 105 °C. Rated for 1.2 A and 250 V, this connector is CSA certified and RoHS compliant, making it suitable for various applications. Its compact 1.27 mm pitch and fully shrouded design ensure secure and efficient connections, with a mating cycle of 30 for extended durability. Compatible with 26-28 AWG wire sizes, the Picoflex PF-50 is ideal for use in high-density electronic systems.
