| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 90327-0316 |
| Series: | 90327 - Picoflex |
| Packaging: | Bag |
| Wire Size: | 26 AWG, 28 AWG |
| Connector Type: | Picoflex |
| Lock to Mating Part: | Yes |
| UL Agency Certification: | E29179 |
| CSA Agency Certification: | LR19980 |
| Number of Contacts Loaded: | 16 |
| Color: | White |
| Pitch: | 1.27 mm |
| Voltage: | 250 V |
| Amperage: | 1.2 A |
| Material: | Polyester |
| PCB Locator: | No |
| Mating Cycles: | 30 |
| PCB Retention: | Without |
| Component Type: | Housing |
| Number of Rows: | 2 |
| Contact Plating: | Tin |
| Contact Material: | Phosphor Bronze |
| Polarized to Mate: | Yes |
| Termination Pitch: | 1.27 mm |
| Number of Contacts: | 16 |
| Termination Method: | IDT or Pierce |
| Contact Mating Area Plating: | Tin |
| Contact Termination Plating: | Tin |
| Operating Temperature Range: | -40 - 105 °C |
| Stackable: | No |
| Polarized to PCB: | No |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Shroud Type: | Fully |
| Glow Wire Capable: | No |
| Wire Type: | Ribbon Cable |
| Mount Angle: | Vertical |
| Housing Material: | Polyester |
| Wire Insulation Diameter: | 1 mm |
| Part Aliases: | 0903270316 |
| Material Flammability Standard: | 94V-0 |
| SKU: | MOL90327-0316 |
90327-0316
| Heilind Number: | MOL90327-0316 |
| Manufacturer: | Molex |
| Manufacturer Number: | 90327-0316 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:

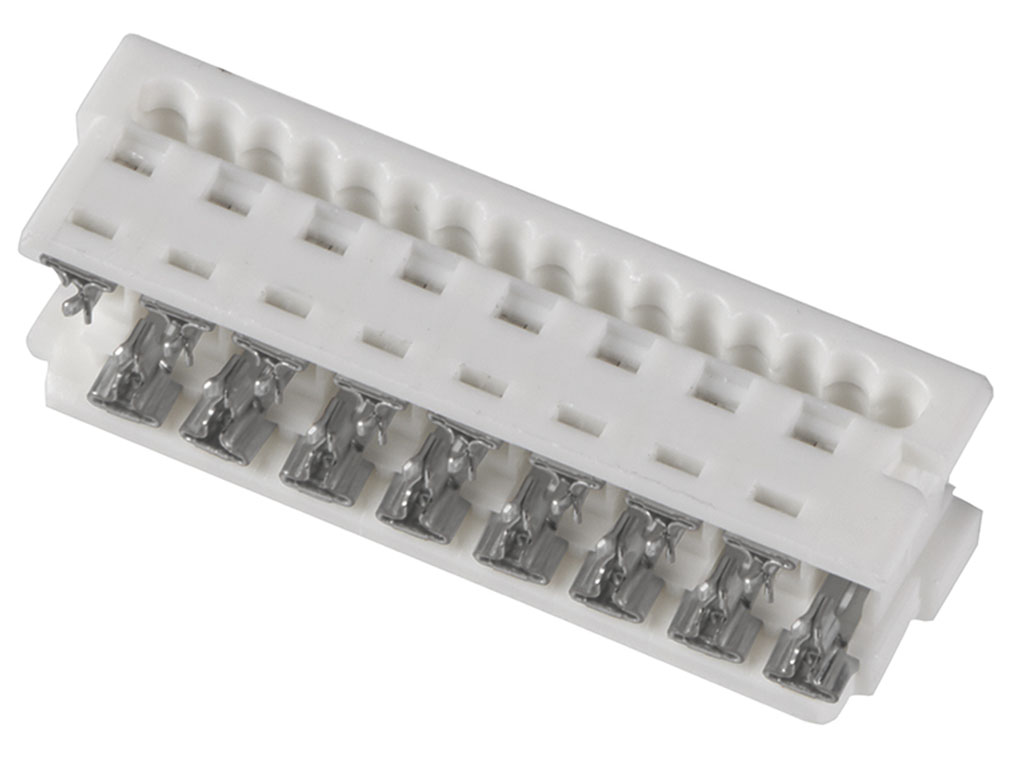

Picoflex PF-50, Low Profile, IDT Receptacle, 16 Circuits, White, Tin (Sn) Plated, Bag
More >>Specifications
Detailed Description
The Picoflex PF-50 is a low profile, high-performance IDC ribbon cable connector designed for reliable and efficient signal transmission in tight spaces. With 16 circuits loaded and a 1.27mm pitch, this connector is ideal for high-density applications. Featuring a durable polyester housing and tin-plated phosphor bronze contacts, it ensures excellent conductivity and longevity. UL and CSA agency certifications guarantee safety and quality standards compliance. Its polarized design and lock to mating part feature ensure secure and accurate connections. Operating in a wide temperature range from -40 to 105°C and rated for 250V and 1.2A, the PF-50 is suitable for a variety of industrial and commercial applications. RoHS compliant and available in white, it is a versatile and environmentally friendly connectivity solution.
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 90327-0316 |
| Other Names: | 0903270316 |
