| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 90130-3206 |
| Color: | Black |
| Series: | 90130 - C-Grid III |
| Amperage: | 3 A |
| Connector Type: | C-Grid III |
| Number of Contacts: | 6 |
| Number of Rows: | 2 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Right Angle |
| Pitch: | 2.54 mm |
| Voltage: | 350 V AC/DC |
| Material: | Polyester |
| Orientation: | Right Angle |
| Keying: | No |
| Tail Length: | 2.9 mm |
| Operating Temperature Range: | -55 - 125 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .381 µm |
| Number of Contacts Loaded: | 6 |
| Mating Cycles: | 100 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 3.048 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 003 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | 2.54 mm |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Closed Ends |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0901303206 |
| SKU: | MOL90130-3206 |
90130-3206
| Heilind Number: | MOL90130-3206 |
| Manufacturer: | Molex |
| Manufacturer Number: | 90130-3206 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
C-Grid III Header, Dual Row, Right Angle, Shrouded, Fully Loaded, 6 Circuits, Black 0.38
More >>Specifications
Detailed Description
Introducing the Molex C-Grid III Header, a high-performance connector designed for your PCB assembly needs. This dual-row header features a right-angle, shrouded design, ensuring secure and reliable connections in tight spaces. Fully loaded with 6 circuits, each rated for 3A and 350V AC/DC, this black 0.38 header is both versatile and durable. Constructed with brass contacts and a polyester housing, it offers excellent conductivity and thermal stability, even in harsh environments. With gold-plated contact mating areas and tin termination plating, this connector guarantees optimal signal integrity and solderability. RoHS compliant and lead-free process capable, it meets the latest industry standards for environmental responsibility. Whether you're working on consumer electronics or industrial machinery, the Molex C-Grid III Header is the perfect choice for your application.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 87833-1620 | Milli-Grid Header, Right Angle, Shrouded, Lead-Free, 16 Circuits, 0.38 |  |

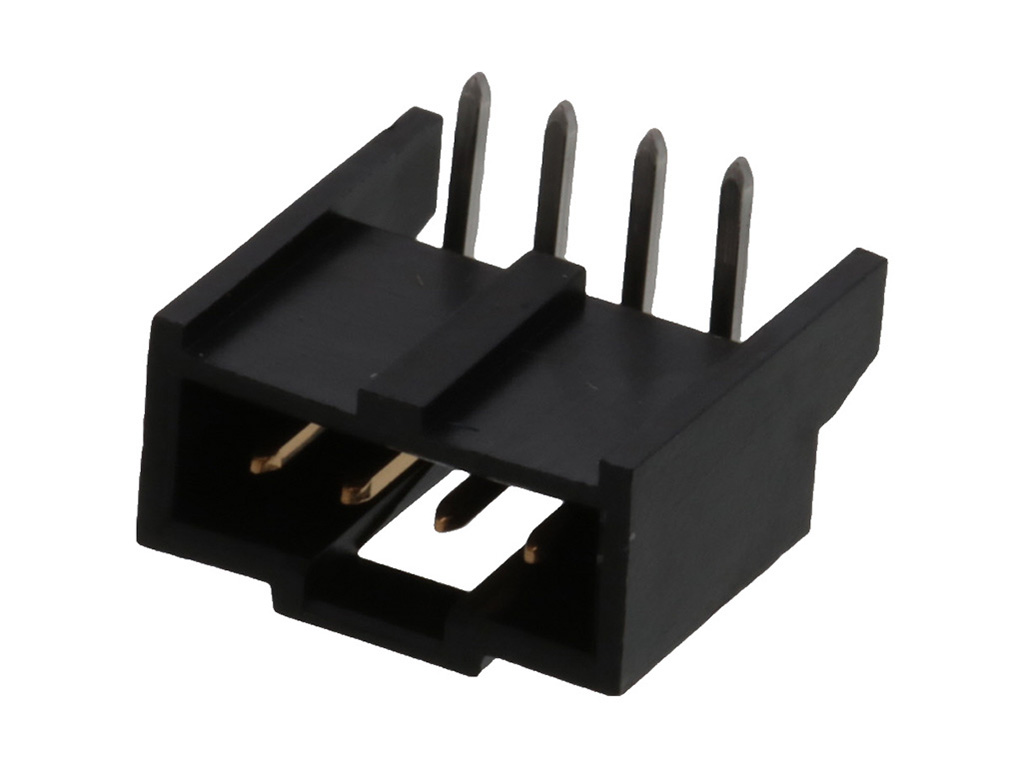

 | Molex 90136-2204 | C-Grid III Header, Single Row, Right Angle, Shrouded, 4 Circuits, 0.38 | |
