87832-2420

MOL87832-2420
Heilind Number:MOL87832-2420
Manufacturer:Molex
Manufacturer Number:87832-2420
Datasheet:Drawing
ECAD Model:
3D Model

Description:

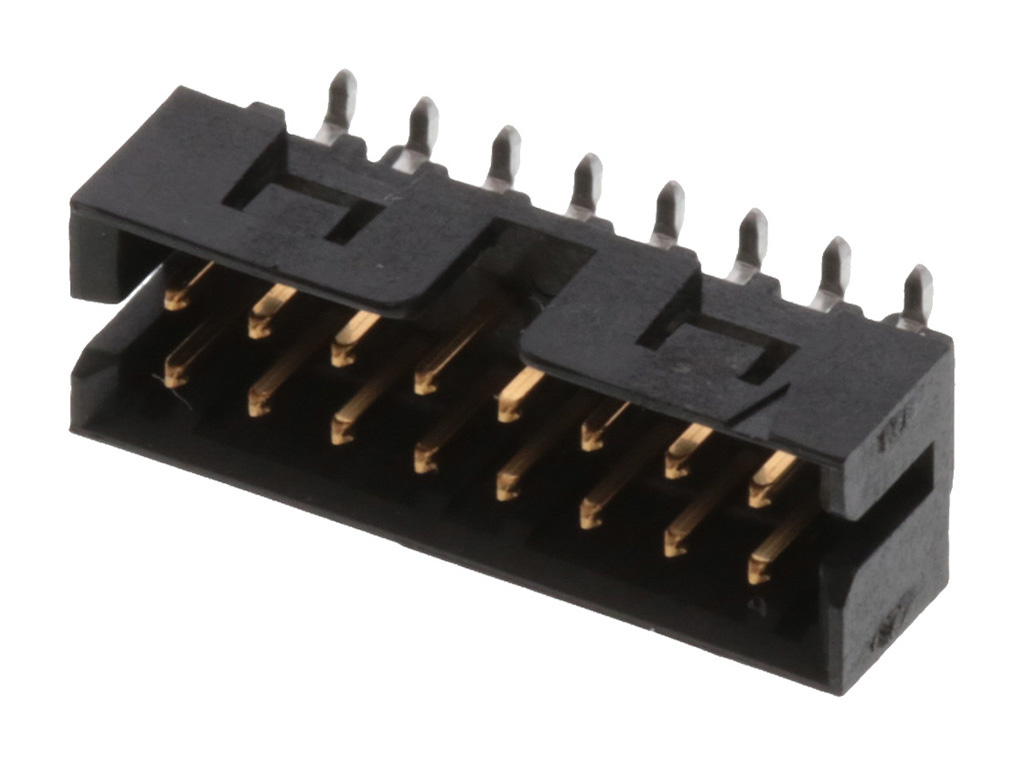

Milli-Grid Header, Surface Mount, Vertical, Shrouded, Lead-Free, 24 Circuits, 0.38

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:Molex
Manufacturer Part Number:Molex 87832-2420
Color:Black
Series:87832 - Milli-Grid
Amperage:2 A
Connector Type:Milli-Grid
Number of Contacts:24
Number of Rows:2
Termination Method:Surface Mount
Contact Material:Phosphor Bronze
Body Orientation:Straight
Pitch:2 mm
Voltage:125 V
Material:Nylon
Orientation:Vertical
Keying:Yes
Operating Temperature Range:-55 - 105 °C
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:.381 µm
Number of Contacts Loaded:24
Mating Cycles:100
PCB Locator:No
PCB Retention:Without
Polarized to PCB:No
Contact Termination Plating Thickness:1.905 µm
Connector System:Wire to Board
Contact Termination Plating:Tin
Maximum Solder Process Temperature:260 °C
Lead Free Process Capability:REFLOW
Duration at Max. Process Temperature (seconds):010
Max. Cycles at Max. Process Temperature:001
Termination Pitch:2 mm
Glow Wire Capable:No
Guide to Mating Part:No
Lock to Mating Part:Yes
Stackable:No
Surface Mount Compatible:Yes
Breakaway:No
Make First / Break Last:No
Shroud Type:Fully
Material Flammability Standard:94V-0
Part Aliases:0878322420
SKU:MOL87832-2420

Detailed Description

Introducing the 87832-2420, a high-performance Milli-Grid Header designed for surface mount applications. This vertical connector features a shrouded design for added safety and is lead-free, making it environmentally friendly. With 24 circuits and a pitch of 2mm, it offers reliable connectivity for your PCB projects. Constructed with durable nylon and gold-plated phosphor bronze contacts, this connector ensures longevity and excellent signal transmission. It is UL and CSA certified, meeting industry standards for safety and quality. Suitable for a wide range of applications, the 87832-2420 is RoHS compliant and in stock for immediate shipping. Upgrade your PCB designs with this premium connector for seamless performance.
