| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 87832-1207 |
| Color: | Black |
| Series: | 87832 - Milli-Grid |
| Amperage: | 2 A |
| Connector Type: | Milli-Grid |
| Number of Contacts: | 12 |
| Number of Rows: | 2 |
| Termination Method: | Surface Mount |
| Contact Material: | Phosphor Bronze |
| Body Orientation: | Straight |
| Pitch: | 2 mm |
| Voltage: | 125 V |
| Material: | Nylon |
| Orientation: | Vertical |
| Keying: | Yes |
| Packaging: | Embossed Tape on Reel |
| Operating Temperature Range: | -55 - 105 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Number of Contacts Loaded: | 12 |
| Mating Cycles: | 100 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 1.905 µm |
| Connector System: | Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 010 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | 2 mm |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | Yes |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Fully |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0878321207 |
| SKU: | MOL87832-1207 |
87832-1207
| Heilind Number: | MOL87832-1207 |
| Manufacturer: | Molex |
| Manufacturer Number: | 87832-1207 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:

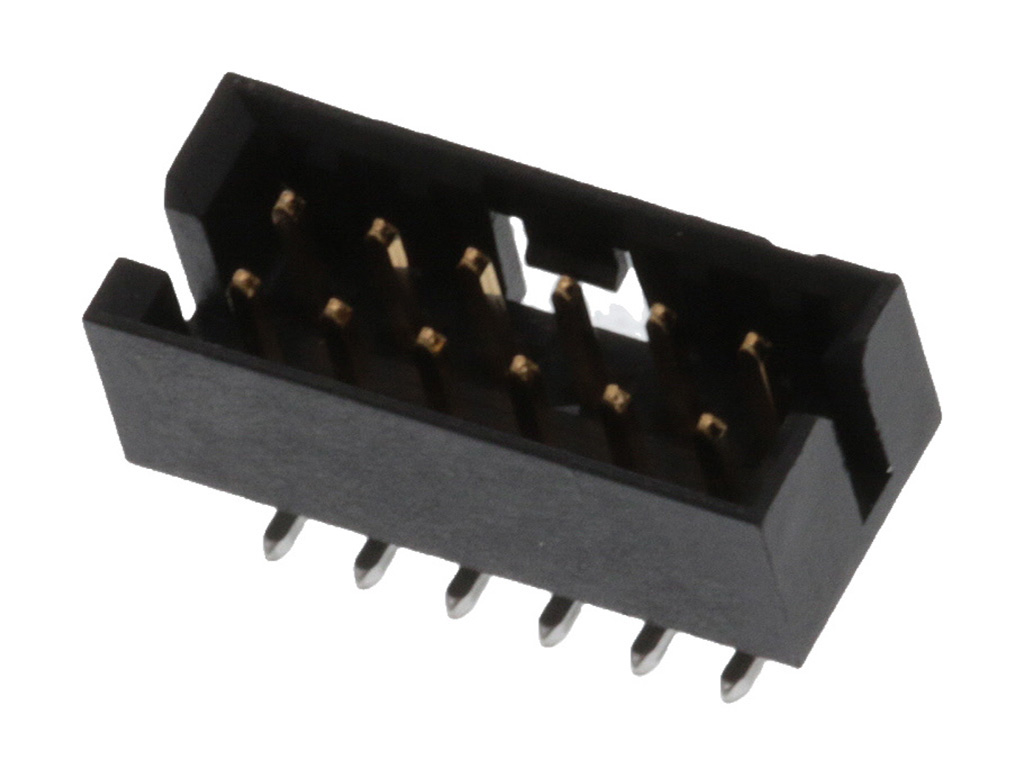

Milli-Grid Header, Surface Mount, Vertical, Shrouded, Lead-Free, 12 Circuits, 0.76
More >>Specifications
Detailed Description
Introducing the 87832-1207 Milli-Grid Header, a versatile and high-performance connector designed for surface mount applications. This vertical header features a shrouded design for added protection, and is lead-free for environmentally conscious manufacturing. With 12 circuits and a pitch of 2mm, it offers reliable connectivity in tight spaces. Constructed with durable nylon and gold-plated phosphor bronze contacts, this connector ensures long-lasting performance even in demanding environments. Certified by CSA and UL, it meets stringent safety standards. Packaged in embossed tape on reel for convenient handling, this header is suitable for automated assembly processes. With a wide operating temperature range and compatibility with lead-free soldering methods, it is ideal for various electronic applications. Trust the 87832-1207 for secure and efficient wire-to-board connections.
