| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 87437-0273 |
| Gender: | Male |
| Number of Contacts: | 2 |
| Number of Rows: | 1 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Pitch: | 1.5 mm |
| Shrouded: | Yes |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2.5 A |
| Voltage Rating: | 250 V |
| Operating Temperature: | -55 to 105 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Surface Mount |
| PCB Connector Type: | Header |
| SKU: | MOL87437-0273 |
87437-0273
Specifications
Detailed Description
Introducing the Molex Pico-SPOX 87437-0273, a high-performance surface mount connector designed for reliable wire-to-board applications. With a compact 1.5mm pitch and two contacts loaded in a single row, this connector offers space-saving connectivity in tight PCB layouts. Constructed with durable brass contacts and a nylon housing, it ensures long-lasting durability even in harsh environments. Rated for 2.5A and 250V AC/DC, it guarantees secure power and signal transmission. Featuring tin plating on the contact mating area, it ensures low contact resistance and excellent conductivity. With a wide operating temperature range of -55 to 105°C and RoHS compliance, it is suitable for a variety of industrial and consumer electronics applications. Trust the Molex Pico-SPOX 87437-0273 for seamless and dependable board-to-wire connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 43650-0301 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 3 Circuits, with Snap-in Plastic Peg PCB Lock, 0.38µm Gold Plating, Glow-Wire Capable, Black |  |
 | Molex 52559-0652 | Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 6 Circuits, Gold Plating | |
 | Molex 53047-0610 | 1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 6 Circuits, 2.30mm PC Tail Length | |
 | Molex 53398-0571 | 1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Surface Mount, Tin (Sn) Plating, Friction Lock, 5 Circuits, 0.60mm PC Tail Length | |

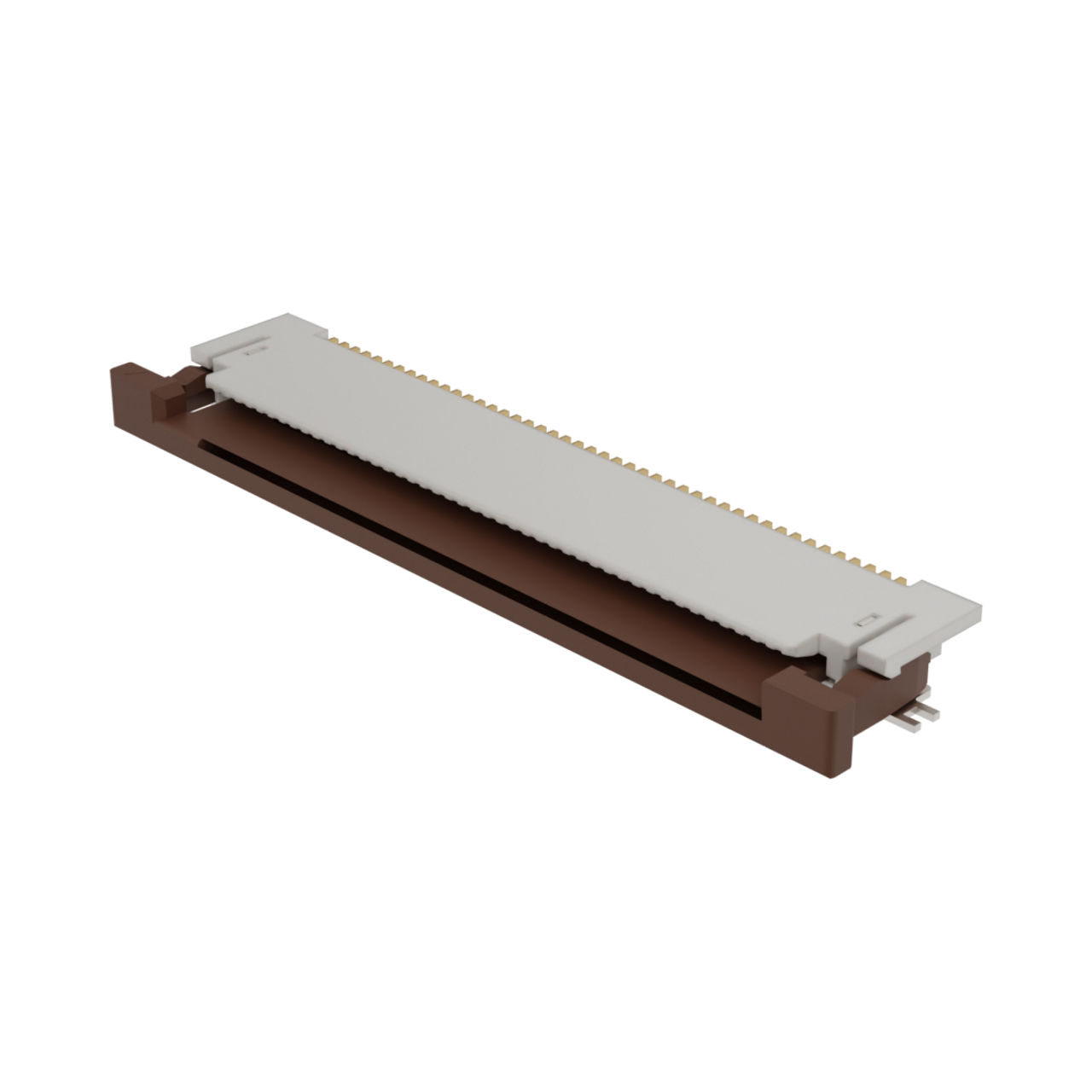

 | Molex 54104-4531 | Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 45 Circuits, Gold Plating | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/01/2017 | 501807 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes and quantities. No changes will be made to the product as a result of the packaging change. | Download | |||
| 04/21/2014 | GCM 10632562 - Supplier Change. Interplex is existing Approved Vendor for Plating Sub-Con. Unfortunately, Interplex will close down Singapore plant and cease their operation from 15 March, 2014. Molex need to get Finest Gold (existing Approved Vendor for Plating Sub-Con) to support the plated job. Current in house capacity is not able to support especially during ramp up season. Finest Gold will send in the plated terminal for First Article Inspection purpose. There is no impact of this change in design, therefore no changes in the Molex assembly part#. Product can be identify by date code on the label. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
