| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 87421-0100 |
| Series: | 87421 - Pico-SPOX |
| Amperage: | 2.5 A |
| Connector Type: | Pico-SPOX |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Phosphor Bronze |
| Voltage: | 250 V |
| Packaging: | Reel |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Mating Cycles: | 10 |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 26 AWG, 28 AWG, 30 AWG |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | .7 - 1 mm |
| Part Aliases: | 0874210100 |
| SKU: | MOL87421-0100 |
87421-0100
| Heilind Number: | MOL87421-0100 |
| Manufacturer: | Molex |
| Manufacturer Number: | 87421-0100 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 87421-0100, a high-performance Pico-SPOX female connector designed for seamless signal transmission in electronic circuits. With an amperage rating of 2.5 A and a voltage tolerance of 250 V, this connector ensures reliable power delivery. Crafted with durable phosphor bronze contacts and tin plating, it guarantees long-lasting performance even in demanding environments. The crimp or compression termination method accommodates 26 AWG to 30 AWG wires, making it versatile for various applications. Each connector is meticulously tested for quality, with a mating cycle of 10, and is RoHS compliant for environmentally friendly use. Packaged in a convenient reel, the 87421-0100 is an essential component for your wire to wire or wire to board connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

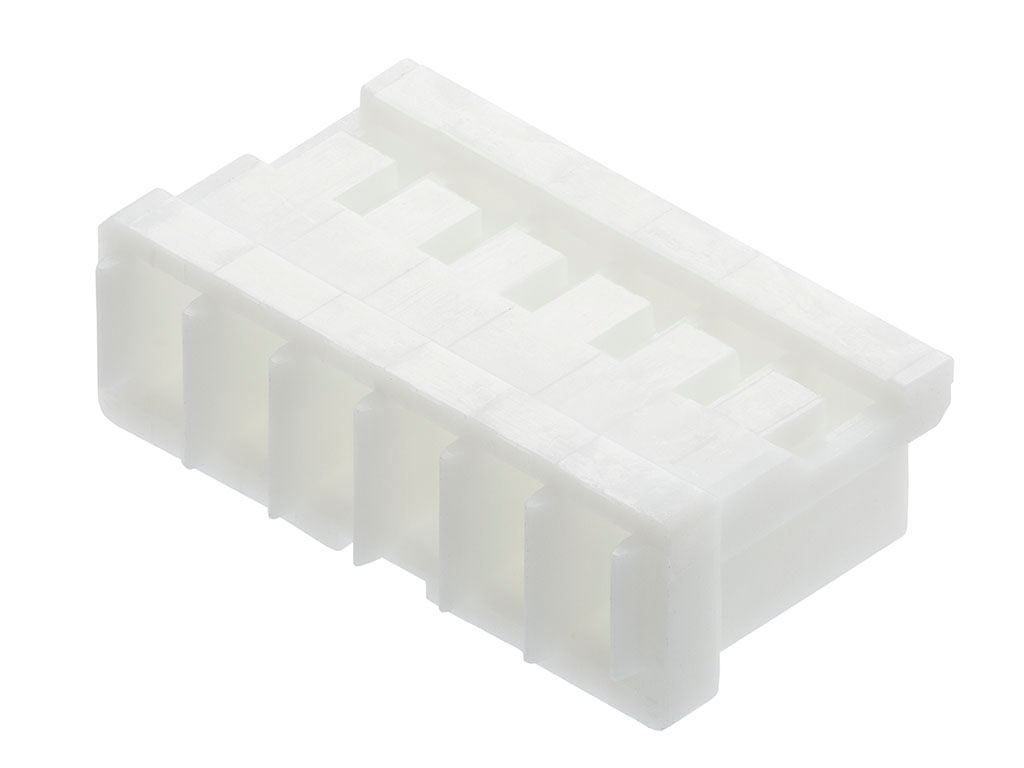

 | Molex 87439-0400 | 1.50mm Pitch Pico-SPOX Wire-to-Board Housing, 4 Circuits, Off-White Housing |  |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/31/2020 | 508547 - Packaging Method/Quantity Changing. increasing the DU from 15k to 20k and reduce filament tape qty from 8 pc to 4 pc for 87421 terminal series. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 87421-0100 |
| Other Names: | 0874210100 |
