| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 78227-1001 |
| Color: | Black |
| Series: | 78227 - GbX I-Trac |
| Amperage: | 40 A |
| Connector Type: | GbX I-Trac |
| Number of Contacts: | 4 |
| Number of Rows: | 2 |
| Termination Method: | Through Hole - Compliant Pin |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -20 °C |
| Pitch: | 2 mm, 7.4 mm |
| Voltage: | 250 VDC |
| Material: | High Temperature Thermoplastic |
| Orientation: | Vertical |
| Keying: | No |
| Component Type: | Power Receptacle |
| Number of Pairs: | 4-pair |
| Data Rate: | 12 Gb/s |
| Tail Length: | 2.41 mm |
| Operating Temperature Range: | -20 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Number of Contacts Loaded: | 4 |
| Mating Cycles: | 100 |
| PCB Locator: | No |
| Shielded: | No |
| PCB Retention: | Yes |
| Polarized to PCB: | No |
| PCB Thickness (Recommended): | 1.6 mm |
| Number of Columns: | 1 |
| Contact Termination Plating: | Tin |
| Termination Pitch: | 2 mm, 7.4 mm |
| Guide to Mating Part: | No |
| Stackable: | No |
| Surface Mount Compatible: | Yes |
| Board to Board Configuration: | Backplane, Midplane |
| Make First / Break Last: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0782271001 |
| SKU: | MOL78227-1001 |
78227-1001
Specifications
Detailed Description
78227-1001 - Introducing the GbX I-Trac Vertical Receptacle Power Module, a high-performance connectivity solution designed for demanding applications. This black power receptacle features 2 blades, each capable of handling up to 40 Amps, ensuring reliable power transmission. Crafted from lead-free materials, it meets stringent environmental regulations. With 4 contacts arranged in 2 rows, and a termination method of Through Hole - Compliant Pin, it offers secure and stable connections. The contact material, High Performance Alloy (HPA), with gold plating, guarantees excellent conductivity and corrosion resistance. Operating temperature range from -20 to 85 °C, and voltage rating of 250 VDC, make it suitable for diverse environments. Ideal for backplane and midplane configurations, this RoHS compliant connector is a dependable choice for your high-speed data transmission needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 76015-1403 | GbX I-Trac Vertical Header Module, 1.85mm by 3.7mm Pitch, Unguided, Open Ends, 7 Rows, 4 Columns, 56 Circuits, Mating Pin Length 4.7mm |  |

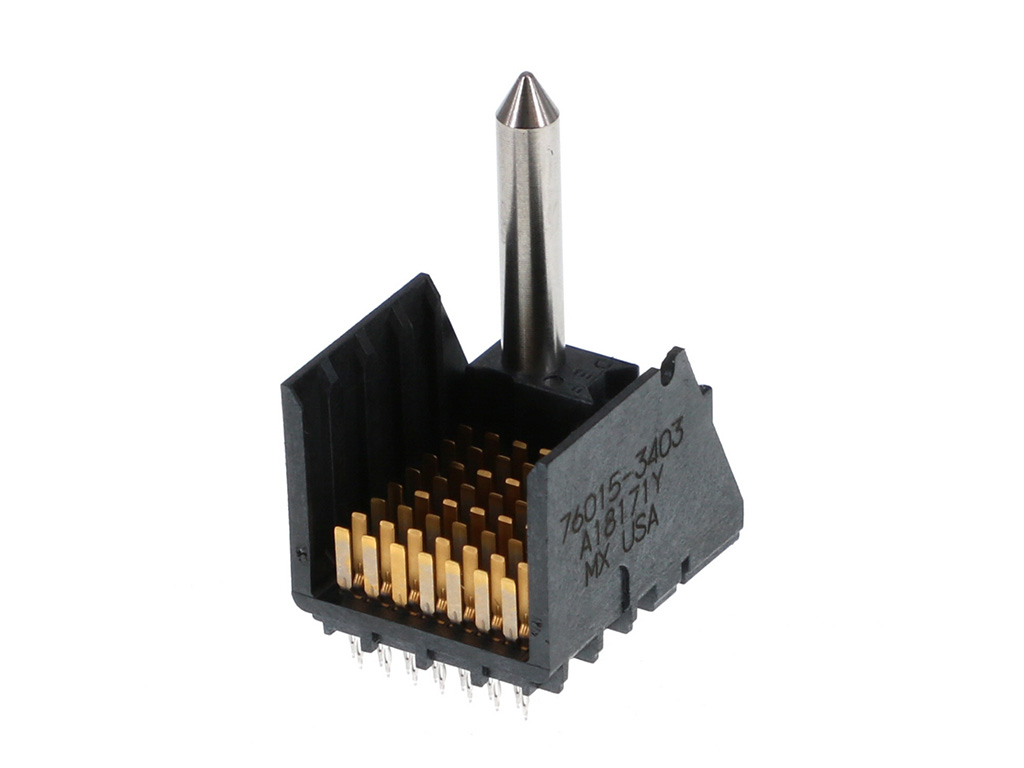

 | Molex 76015-3403 | GbX I-Trac Vertical Header Module, 1.85mm by 3.7mm Pitch, Left Guide, Right Open, 7 Rows, 4 Columns, 56 Circuits, Mating Pin Length 4.7mm, Lead-Free | |
