| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 78216-1001 |
| Color: | Black |
| Series: | 78216 - Impact |
| Amperage: | 25 A |
| Connector Type: | Impact |
| Number of Contacts: | 4 |
| Number of Rows: | 2 |
| Termination Method: | Through Hole - Compliant Pin |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 5.2 mm |
| Voltage: | 250 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Vertical |
| Keying: | No |
| Component Type: | Power Receptacle |
| Number of Pairs: | 5-pair |
| Tail Length: | 2.5 mm |
| Packaging: | Tray |
| Operating Temperature Range: | -55 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Number of Contacts Loaded: | 4 |
| Mating Cycles: | 200 |
| PCB Locator: | No |
| Shielded: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 2.540 µm |
| PCB Thickness (Recommended): | 1.6 mm |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Termination Pitch: | 2 mm, 3.2 mm |
| Guide to Mating Part: | No |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Board to Board Configuration: | Conventional, Mezzanine, Orthogonal Midplane |
| Make First / Break Last: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0782161001 |
| SKU: | MOL78216-1001 |
78216-1001
| Heilind Number: | MOL78216-1001 |
| Manufacturer: | Molex |
| Manufacturer Number: | 78216-1001 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:
Impact 5 Pair, Vertical Power Receptacle, Press-Fit, LCP, Glass Filled UL94-V0, Black, Lead-Free
More >>Specifications
Detailed Description
The Impact 5 Pair Vertical Power Receptacle is a high-performance connector designed for demanding applications. With a current rating of 25 A and a voltage of 250 V, it provides reliable power delivery in a compact form factor. Featuring four contacts in two rows, this connector offers efficient connectivity on PCBs. The press-fit termination method ensures secure and durable installation, while the gold contact plating guarantees excellent signal integrity. Constructed from LCP and glass-filled UL94-V0 rated black thermoplastic, it offers superior durability and fire resistance. With a wide operating temperature range of -55 to 85 °C and compliance with RoHS standards, this connector is suitable for a variety of industries, including automotive, industrial, and telecommunications. Trust in the quality and performance of the Impact 5 Pair Vertical Power Receptacle for your critical applications.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 170335-1127 | Impact 85 Ohm Plus 4 Pair Vertical Header, Unguided, Dual End Walls, 10 Columns, 120 Circuits, Pin Length 4.90mm, Plated Through Hole Dimension 0.39mm, Lead-Free |  |

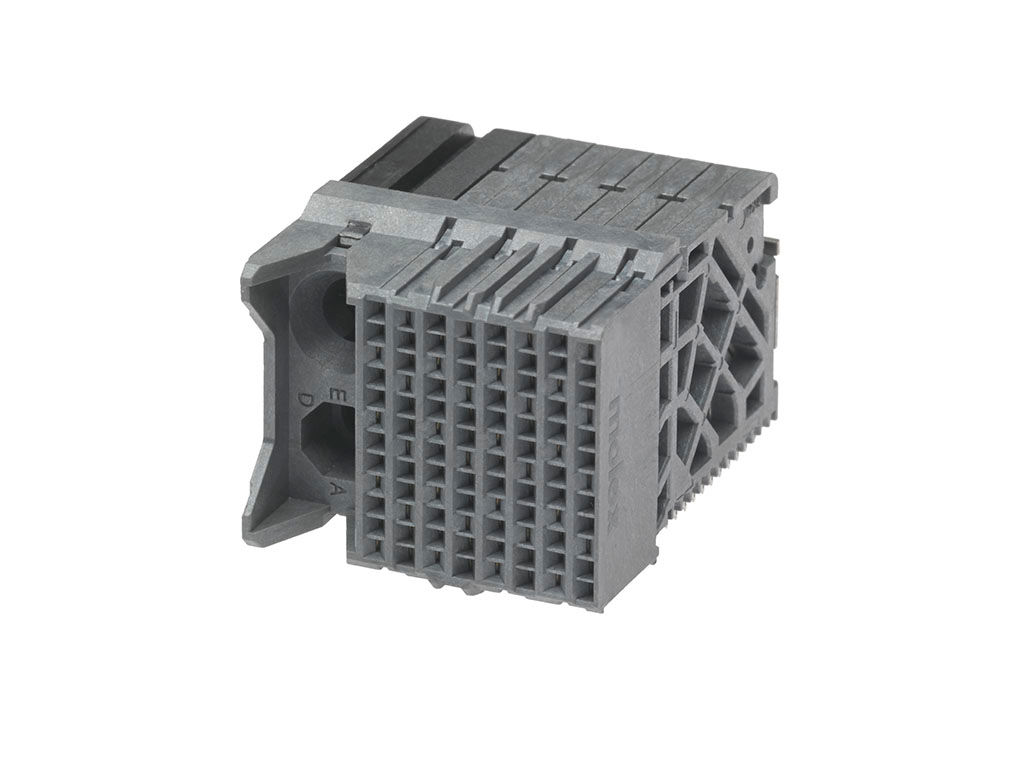

 | Molex 170340-3038 | Impact 85 Ohm Plus 4 Pair, Right-Angle Daughtercard, Left Guided, 8 Columns, 96 Circuits, Plated Through Hole Dimension 0.39mm, Lead Free | |
