| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 78211-1011 |
| Gender: | Male |
| Housing Material: | High Temperature Plastic |
| Number of Contacts: | 4 |
| Number of Rows: | 2 |
| Contact Plating: | Gold |
| Pitch: | 5.2 mm |
| Tail Length: | 2.5 mm |
| Mating Cycles: | 200 |
| Current Rating: | 15 A |
| Voltage Rating: | 250 VAC |
| Operating Temperature: | -55 to 85 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | MOL78211-1011 |
78211-1011
| ICC Number: | MOL78211-1011 |
| Manufacturer: | Molex |
| Manufacturer Number: | 78211-1011 |
| ECAD Model: | |
Description:
Impact 3 Pair, Right-Angle Power Header, Press-Fit, Blade A1 & A2, B1 & B2 Length 6.90mm, LCP, Glass Filled UL94-V0, Black Packaging, Lead-Free
More >>Specifications
Detailed Description
The 78211-1011 is a high-performance Impact 3 Pair Right Angle Power Header designed for robust power connections in electronic systems. Featuring Press-Fit termination for secure installation, this header accommodates Blade A1 & A2, B1 & B2 connectors with a length of 6.90mm. Constructed from LCP with Glass Filled UL94-V0 certification, it ensures durability and safety. The black header, packaged in trays, is Lead-Free for environmentally friendly use. With a current rating of 15 A and 4 gold-plated copper alloy contacts, it guarantees reliable power transmission. Operating in a wide temperature range from -55 to 85°C, this connector is suitable for various applications. RoHS compliant, it meets international standards for environmental responsibility. Perfect for high-speed and high-power systems, the 78211-1011 is a premium choice for demanding connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172043-0602 | Super Sabre Right-Angle Header, 7.50mm Pitch, 6 Circuits, Glow-Wire Capable, 3.81mm Tail Length, with Board Lock, Complies with UL1977 Finger Proof Standards |  |
 | Molex 39-30-3058 | Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 5 Circuits, PA Polyamide Nylon 6/6, 94V-0, Gold (Au) Plating | |
 | Molex 42820-4213 | 10.00mm Pitch Mini-Fit Sr. Header, Single Row, Right-Angle, 1.57mm PCB Thickness, 0.76µm Gold (Au) Selective Plating, 4 Circuits | |
 | Molex 46015-2002 | Mini-Fit Plus Header, Dual Row, Vertical, 20 Circuits, without Snap-in Plastic Peg PCB Lock, Nylon 6/6, UL 94V-0, Tin (Sn) Plating | |

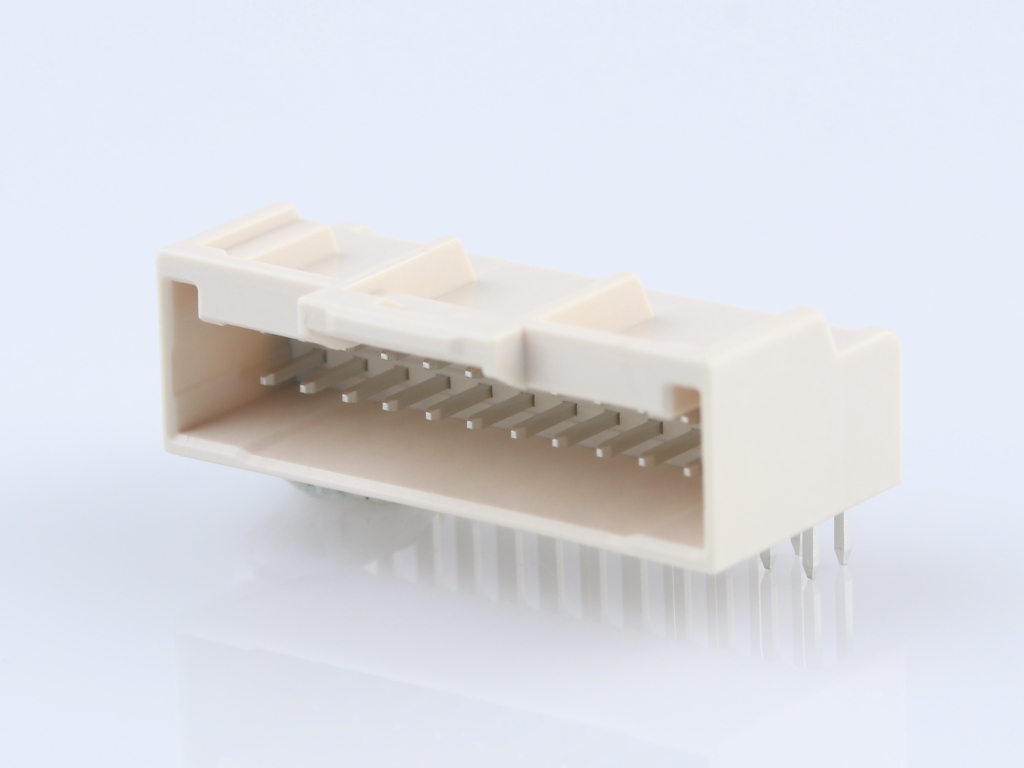

 | Molex 501876-2440 | 2.00mm Pitch, iGrid PCB Header, Dual Row, Right-Angle, Through Hole, Matte Tin (Sn) Plating, Positive Lock, 24 Circuits, 3.20mm PC Tail Length, Natural | |
 | Molex 504050-0491 | 1.50mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold (Au) Plating, Positive Lock, 4 Circuits | |
 | Molex 504051-0401 | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 4 Circuits, Black | |
 | Molex 70543-0001 | 2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 2 Circuits, 0.38µm Gold (Au) Selective Plating, Matte Tin (Sn) Tail Plating | |

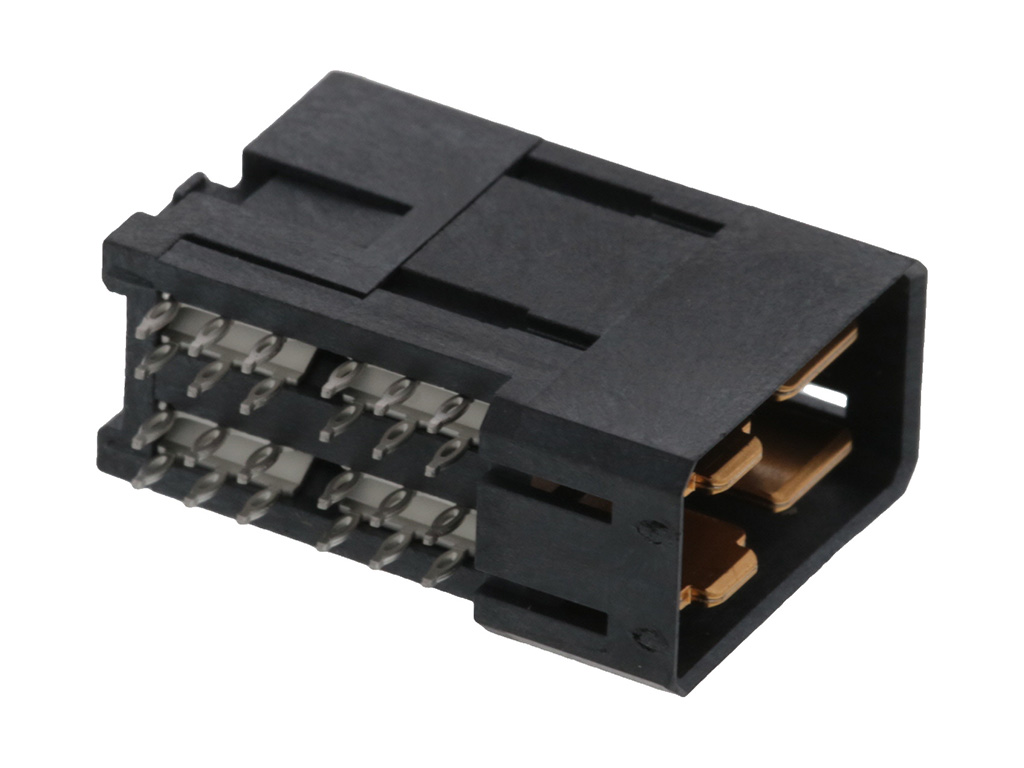

 | Molex 78213-1044 | Impact 4 Pair, Right-Angle Power Header, Press-Fit, Blade A1 & A2 Length 6.90mm, Blade B1 & B2 Length 5.70, LCP, Glass Filled UL94-V0, Black Packaging, Lead-Free | |
