| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 74320-1004 |
| Color: | Natural |
| Series: | 74320 - MicroCross DVI |
| Amperage: | 3 A |
| Connector Type: | MicroCross DVI |
| Gender: | Receptacle |
| Number of Contacts: | 29 |
| Number of Rows: | 3 |
| Termination Method: | Through Hole |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold |
| Body Orientation: | Right Angle |
| Pitch: | 1.9 mm |
| Voltage: | 40 V AC/DC |
| Shield Type: | Full Shield |
| Number of Ports: | 1 |
| Orientation: | Right Angle |
| Keying: | Yes |
| Component Type: | Receptacle |
| Tail Length: | 2.34 mm |
| Operating Temperature Range: | -20 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .051 µm |
| Ground to Panel / PCB: | Yes |
| Number of Contacts Loaded: | 29 |
| Mating Cycles: | 100 |
| Panel Mount: | Yes |
| PCB Locator: | Yes |
| Shielded: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating Thickness: | 2.540 µm |
| Polarized to Mate: | Yes |
| Supplier Product Group: | High Speed Cage & Connector Assemblies |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Lead Free Process Capability: | WAVE |
| Termination Pitch: | 1.9 mm |
| Lock to Mating Part: | Yes |
| Surface Mount Compatible: | No |
| Waterproof Dustproof: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0743201004 |
| SKU: | MOL74320-1004 |
74320-1004
| Heilind Number: | MOL74320-1004 |
| Manufacturer: | Molex |
| Manufacturer Number: | 74320-1004 |
| Datasheet: | Drawing |
| ECAD Model: | |
Description:
MicroCross DVI-I Digital/Analog Visual Interface, PCB Receptacle, Panel Mount, Through Hole, Right-Angle, Gold (Au) Flash Plating, Screw Hole, 4-40 Thread, 2.34mm PC Tail Length, 29 Circuits, Lead-Free
More >>Specifications
Detailed Description
The 74320-1004 is a high-performance MicroCross DVI-I Digital/Analog Visual Interface connector designed for seamless connectivity in electronic applications. Featuring a durable PCB receptacle with panel mount and through-hole installation options, this connector offers versatility and reliability. With a right-angle body orientation and gold flash plating, it ensures optimal signal transmission. The 29 circuits and 3A amperage rating accommodate high-speed data transfer, making it ideal for multimedia and networking systems. Lead-free and RoHS compliant, it meets environmental standards. Suitable for a wide range of industries, this connector guarantees secure and efficient connections in any operating environment.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-31-1046 | 2.36mm Diameter Standard .093 Pin and Socket Header, Vertical, with Beveled Plastic Peg, 4 Circuits |  |
 | Molex 173109-0239 | FCT DSUB STR PC RCPT 09 PN W/ NAPIN M3 | |
 | Molex 22-28-4050 | KK 254 Breakaway Header, Vertical, 5 Circuits, Tin (Sn) Plating, Mating Pin Length 6.09mm | |
 | Molex 26-48-1051 | KK 396 Breakaway Header, Vertical, 5 Circuits, Tin (Sn) Plating | |
 | Molex 39-30-0020 | Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating | |
 | Molex 39-30-2031 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 3 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural | |
 | Molex 43045-0414 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black | |
 | Molex 43045-0618 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Solder Tab, Tin, Glow-Wire Capable, Black | |

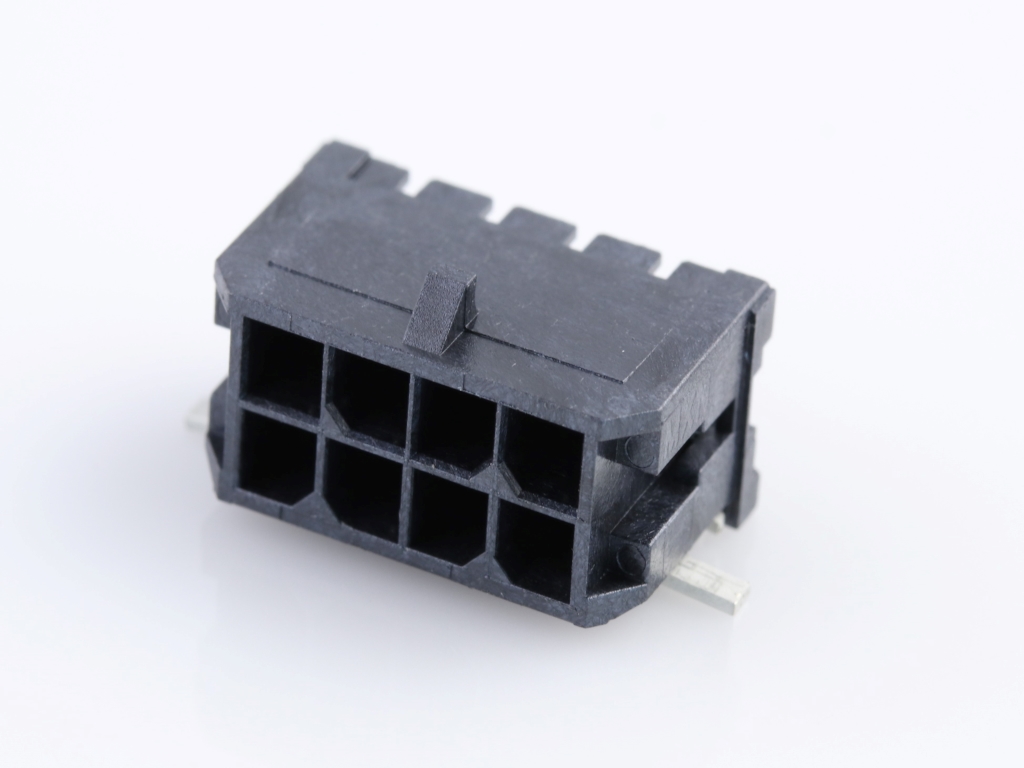

 | Molex 43045-0811 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 8 Circuits, with Solder Tab, Gold, Glow-Wire Capable, Black | |
