| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 73403-6262 |
| Series: | 73403 - FAKRA - SMB |
| Connector Type: | FAKRA, SMB |
| Gender: | Plug |
| Mount Type: | Cable Connecting |
| Body Orientation: | Straight |
| Connector Size: | Subminiature |
| Orientation: | Straight |
| Impedance: | 50 Ω |
| Operating Frequency: | 6 GHz |
| RF Connector Type: | FAKRA |
| Keying: | Yes |
| Wire Type: | RG-174, RG-316 |
| Supplier Product Group: | RF Coaxial Connectors |
| Reverse Polarity: | No |
| Part Aliases: | 0734036262 |
| SKU: | MOL73403-6262 |
73403-6262
| Heilind Number: | MOL73403-6262 |
| Manufacturer: | Molex |
| Manufacturer Number: | 73403-6262 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:
50 Ohms, FAKRA SMB Plug, Straight, for RG-316 and RG-174 Cable, Keying Code C, Blue
More >>Specifications
Detailed Description
Introducing the Molex RF Coaxial Connector, featuring a FAKRA SMB series with a 50 Ω impedance for reliable signal transmission up to 6 GHz. This plug connector is designed for cable connecting with a straight body orientation, perfect for various applications. With keying for added security, it ensures proper mating every time. Compatible with wire types RG-174 and RG-316, this connector offers versatility in connectivity. Rest assured of its quality as it is not RoHS compliant. Upgrade your RF connectivity with the Molex 73403-6262.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-06-2042 | 1.57mm Diameter Standard .062 Pin and Socket Plug Housing, 4 Circuits, without Mounting Ears, Natural |  |
 | Molex 19005-0005 | InsulKrimp Fully Insulated Coupler, Female, for 14-16 AWG Wire, Box | |
 | Molex 19019-0037 | Avikrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Box, Tab 6.35 x 0.81mm | |
 | Molex 19069-0029 | Krimptite Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 19073-0013 | Avikrimp Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 8 (M4), Length 22.00mm | |
 | Molex 19073-0017 | Avikrimp Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 10 (M5), Length 22.00mm | |
 | Molex 19073-0085 | Avikrimp Ring Tongue Terminal for 14 to 16 AWG Wire, Stud Size 8 (M4), Length 22.48mm | |
 | Molex 19073-0087 | Avikrimp Ring Tongue Terminal for 14 to 16 AWG Wire, Stud Size 10 (M5), Length 22.48mm | |
 | Molex 19073-0165 | Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 8 (M4), Length 27.71mm | |
 | Molex 19073-0170 | Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 10 (M5), Length 27.71mm | |
 | Molex 39-00-0038 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 39-01-2100 | Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-2, Natural | |
 | Molex 50-57-9402 | SL Crimp Housing, Single Row, Version G, Positive Latch, 2 Circuits, Black | |

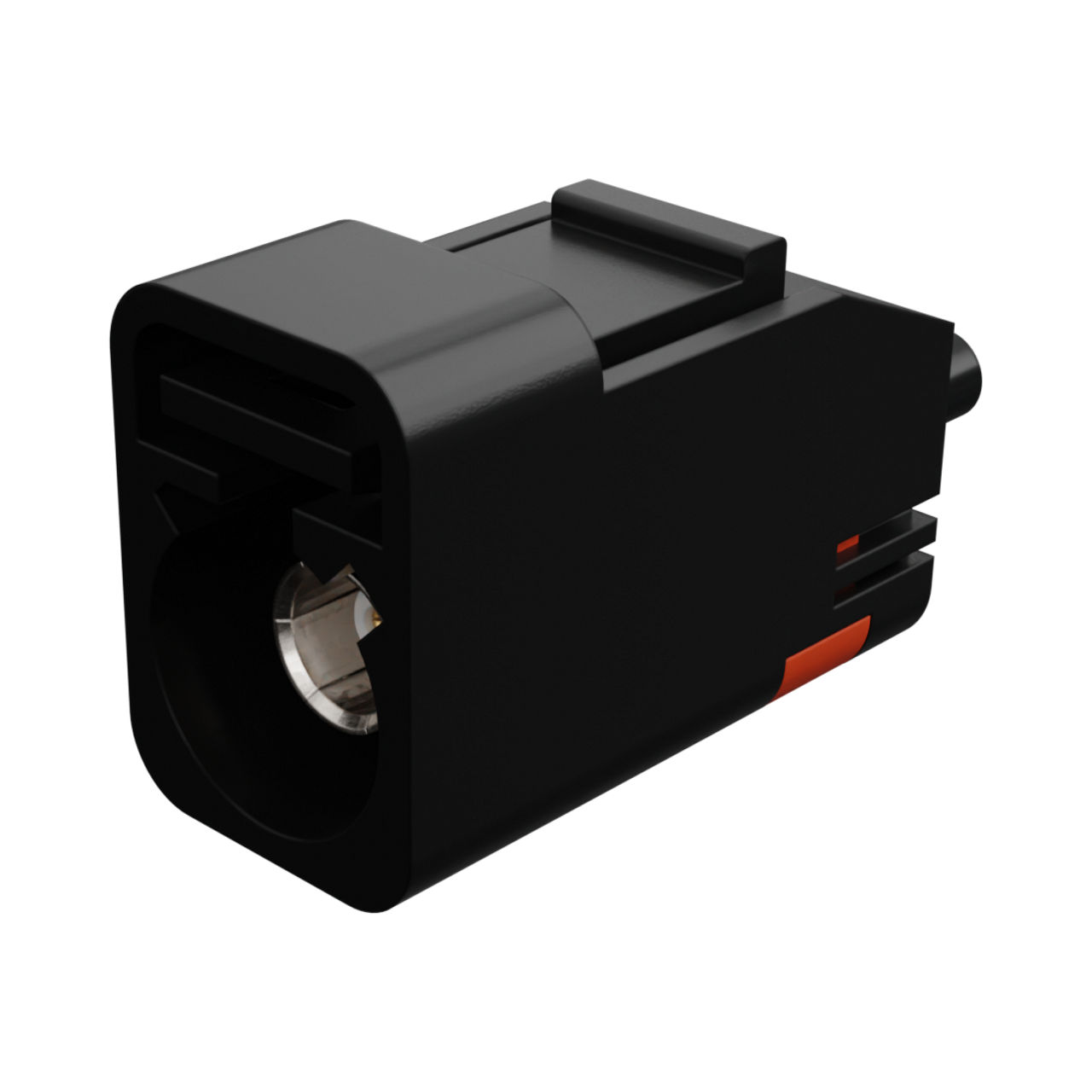

 | Molex 73403-6260 | 50 Ohms, FAKRA SMB Plug, Straight, for RG-316 and RG-174 Cable, Keying Code A, Black | |

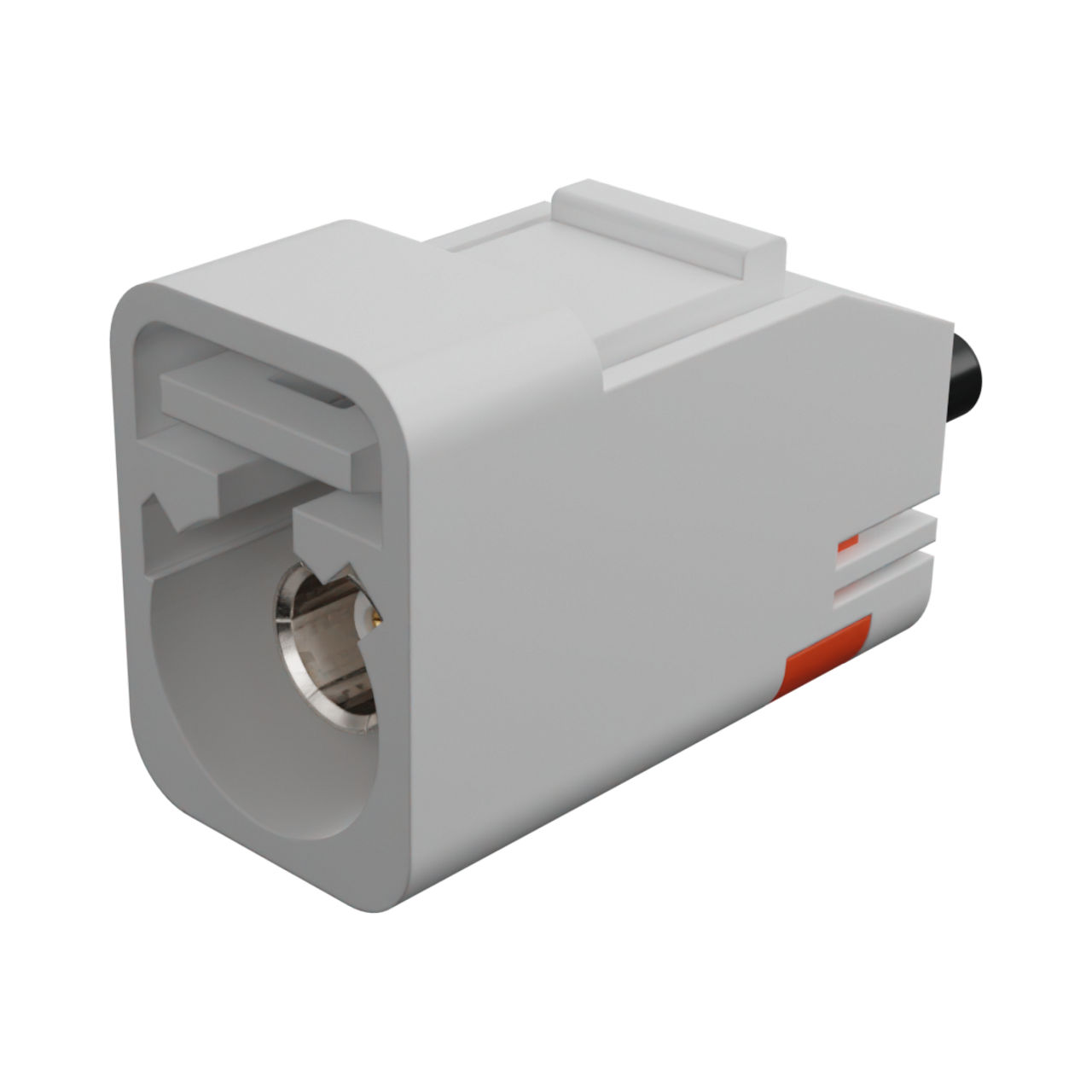

 | Molex 73403-6261 | 50 Ohms, FAKRA SMB Plug, Straight, for RG-316 and RG-174 Cable, Keying Code B, Cream White | |

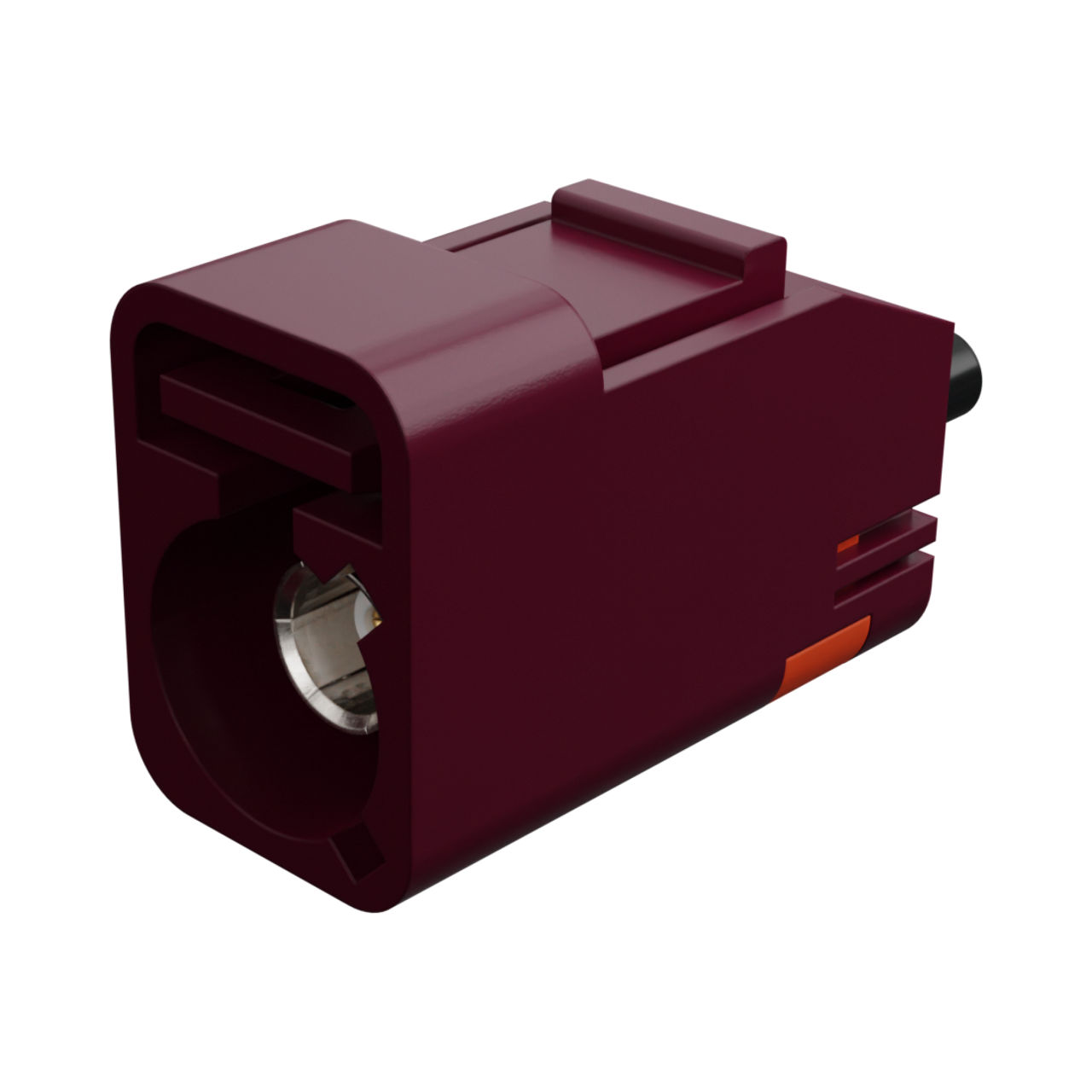

 | Molex 73403-6263 | 50 Ohms, FAKRA SMB Plug, Straight, for RG-316 and RG-174 Cable, Keying Code D, Bordeaux Violet | |
