70545-0046

Heilind Number:	MOL70545-0046
Manufacturer:	Molex
Manufacturer Number:	70545-0046
Datasheet:	Product Specification
ECAD Model:

Description:

2.54mm Pitch SL Header, Single Row 3.05mm Pocket Vertical, Shrouded, with Press-fit Plastic Peg, 12 Circuits, 0.38

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 70545-0046
Color:	Black
Series:	70545
Amperage:	3 A
Connector Type:	SL
Number of Contacts:	12
Number of Rows:	1
Termination Method:	Through Hole
Contact Material:	Brass, Phosphor Bronze
Body Orientation:	Straight
Pitch:	2.54 mm
Voltage:	250 V
Material:	High Temperature Thermoplastic
Orientation:	Vertical
Tail Length:	3.3 mm
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.381 µm
Number of Contacts Loaded:	12
Mating Cycles:	50
PCB Locator:	Yes
PCB Retention:	Yes
Contact Termination Plating Thickness:	1.905 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	003
Max. Cycles at Max. Process Temperature:	003
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	Yes
Breakaway:	No
Shroud Type:	Fully
Product Name:	SL
Material Flammability Standard:	94V-0
Part Aliases:	0705450046 A-70545-0046
SKU:	MOL70545-0046

Detailed Description

Introducing the Molex SL 70545 Series PCB Connector, featuring a sleek black design and boasting a low 3A amperage. With 12 contacts arranged in a single row, this connector offers efficient connectivity. Crafted with high-quality brass and phosphor bronze contact materials, it ensures reliable performance. The straight body orientation and 2.54mm pitch make it ideal for through-hole termination. Rated for up to 250V, this connector is suitable for various applications. Its high-temperature thermoplastic construction and vertical orientation guarantee durability even in harsh environments. RoHS compliant and lead-free wave solder compatible, the SL connector is not only reliable but also environmentally friendly. Perfect for wire-to-board applications, it is a must-have component for your projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 15-47-7644	2.54mm Pitch C-Grid Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 44 Circuits, 0.38

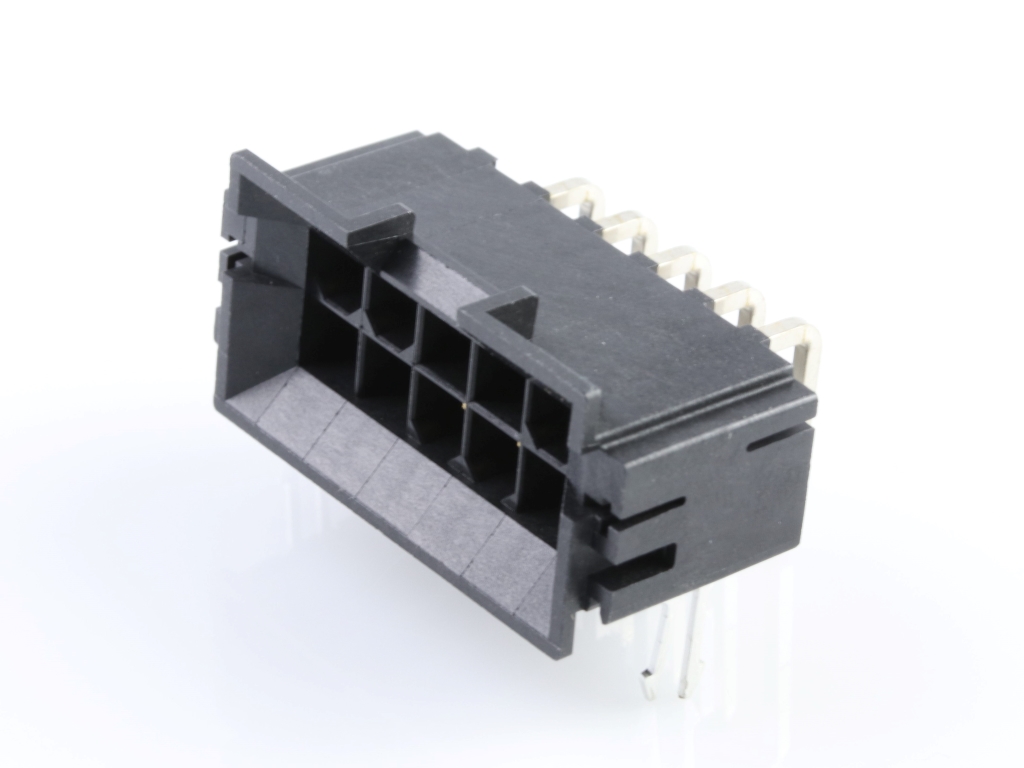

	Molex 43810-0015	Mini-Fit BMI Header, Dual Row, Right-Angle, for 1.60mm PCB, 10 Circuits, Gold (Au) Plating, 260C Wave Solderable, with Retention Clip
	Molex 70545-0038	2.54mm Pitch SL Header, Single Row 3.05mm Pocket Vertical, Shrouded, with Press-fit Plastic Peg, 4 Circuits, 0.38
	Molex 70553-0036	2.54mm Pitch SL Header, Low Profile, Single Row, Right Angle, 3.05mm Pocket, Shrouded, 2 Circuits, Tin (Sn) Plating

Product Change Notice

Effective Date	Description of Change	Download
08/31/2022	511584 - Change Supplier. This notification is to inform you about addition of 899922394 resin (Grade Name: SK Chemicals Skypura 7121F Black) as additional source for 70536 Series. The main reason to add 899922394 resin is to assure the supply of 70536 Series. No changes will be made to product as part of this change.	Download
03/31/2020	507616 - Equipment Transfer, Production Transfer or Rearrangement. This letter is to inform you that production of the part(s) identified in this notice is being moved to a different production location. No changes will be made to the product as a result of this move.	Download
03/01/2020	507611 - Equipment Transfer, Production Transfer or Rearrangement. This letter is to inform you that production of the part(s) identified in this notice is being moved to a different production location. No changes will be made to the product as a result of this move.	Download
