| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 560125-0600 |
| Color: | Gray |
| Series: | 560125 - DuraClik |
| Accessory Type: | Terminal Position Assurance |
| Connector Type: | DuraClik |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Material: | PBT |
| Component Type: | Terminal Position Assurance |
| Operating Temperature Range: | -40 - 125 °C |
| Number of Contacts Loaded: | 6 |
| Polarized to Mate: | Yes |
| Lock to Mating Part: | Yes |
| Part Aliases: | 5601250600 |
| SKU: | MOL560125-0600 |
560125-0600
| Heilind Number: | MOL560125-0600 |
| Manufacturer: | Molex |
| Manufacturer Number: | 560125-0600 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:
DuraClik ISL Wire-to-Board Terminal Position Assurance (TPA) Retainer, 6 Circuits, Gray
More >>Specifications
Detailed Description
Introducing the 560125-0600 DuraClik ISL Wire-to-Board Terminal Position Assurance (TPA) Retainer. This gray, 6-circuit accessory ensures secure connections in your DuraClik connectors. Made of durable PBT, it operates reliably in temperatures ranging from -40 to 125 °C. With all 6 contacts loaded and designed to be polarized and locked to the mating part, this TPA retainer guarantees proper positioning and retention. Fully RoHS compliant, it meets environmental standards. Whether for industrial or commercial use, this RJ connector accessory is a essential for maintaining signal integrity and preventing disconnections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-70-0056 | SPOX Crimp Terminal 5103, 22-28 AWG, Reel, Brass (CuZn), Chain Type |  |
 | Molex 33000-1004 | MX150 Male Terminal, Tin Plating, Preferred Terminal for use in Sealed Application with 0.35-0.50mm | |
 | Molex 33472-2001 | MX150 Sealed Female Connector, Dual Row, 20 Circuits, Polarization A, without Connector Position Assurance, Black | |
 | Molex 43045-2200 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 22 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Glow-Wire Capable, Black | |
 | Molex 50-57-9403 | SL Crimp Housing, Single Row, Version G, Positive Latch, 3 Circuits, Black | |
 | Molex 50-57-9404 | SL Crimp Housing, Single Row, Version G, Positive Latch, 4 Circuits, Black | |
 | Molex 50-57-9410 | SL Crimp Housing, Single Row, Version G, Positive Latch, 10 Circuits, Black | |

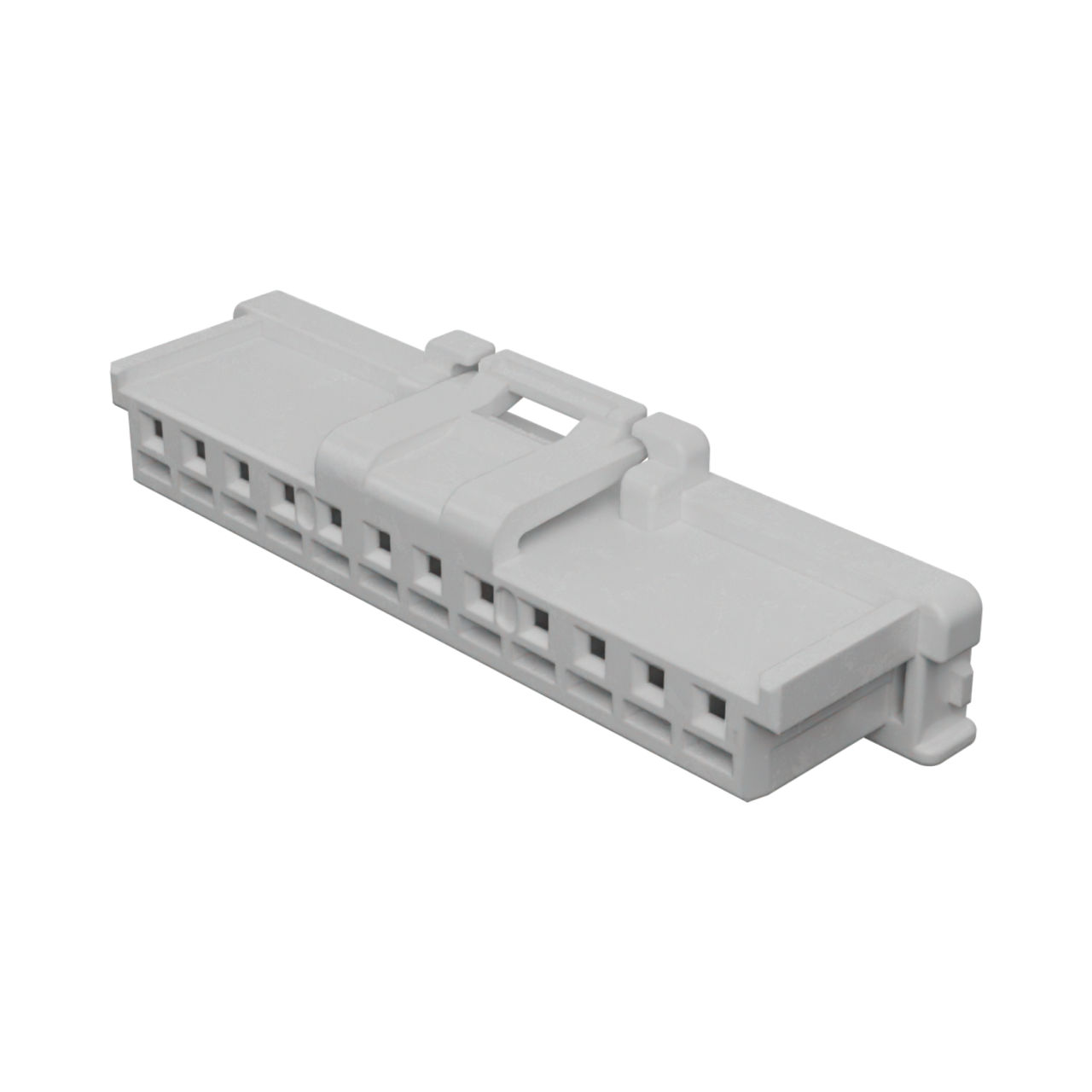

 | Molex 505151-1201 | DuraClik TPA Wire-to-Board Receptacle Housing, 12 Circuits, White | |
 | Molex 505152-1200 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 12 Circuits | |

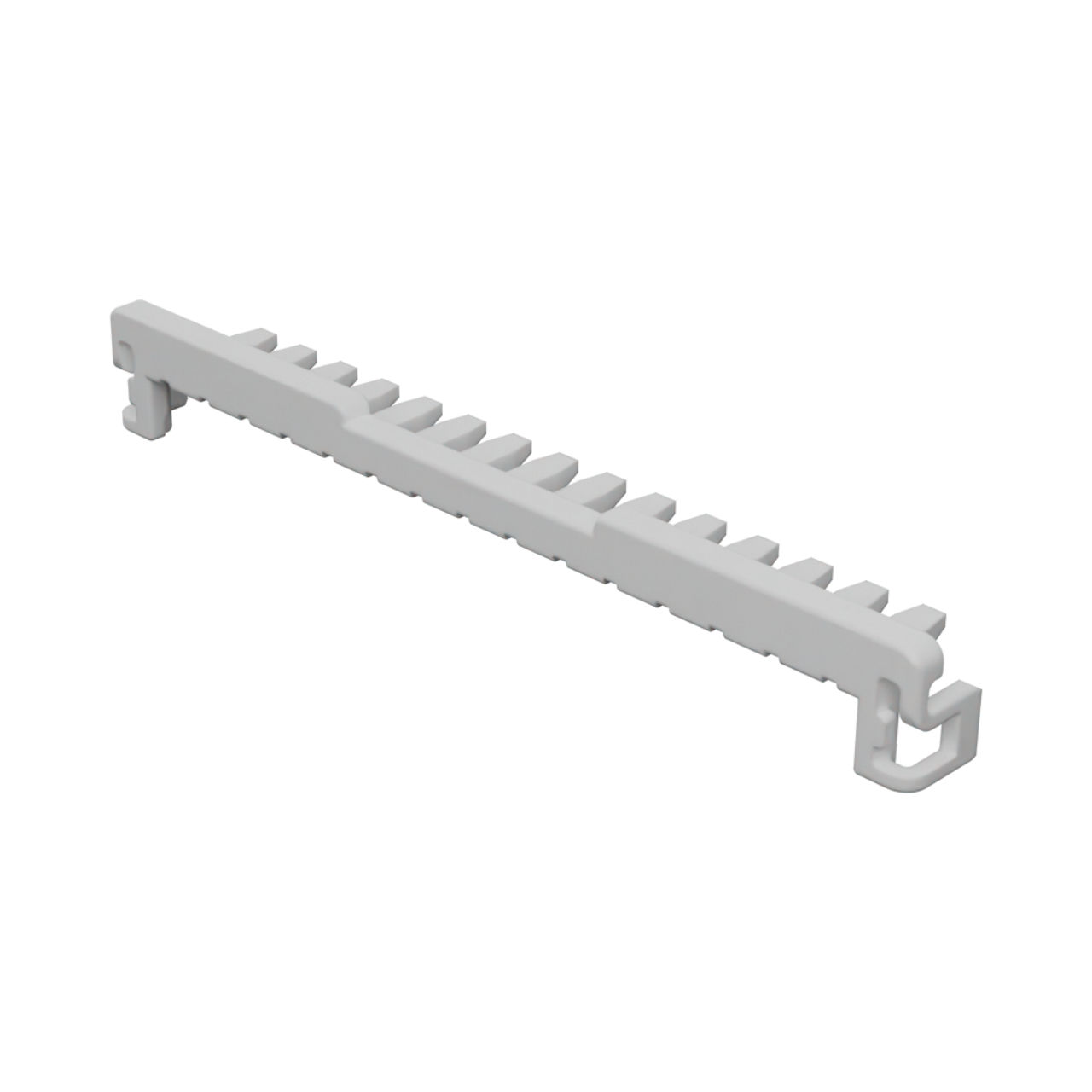

 | Molex 505152-1500 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 15 Circuits | |

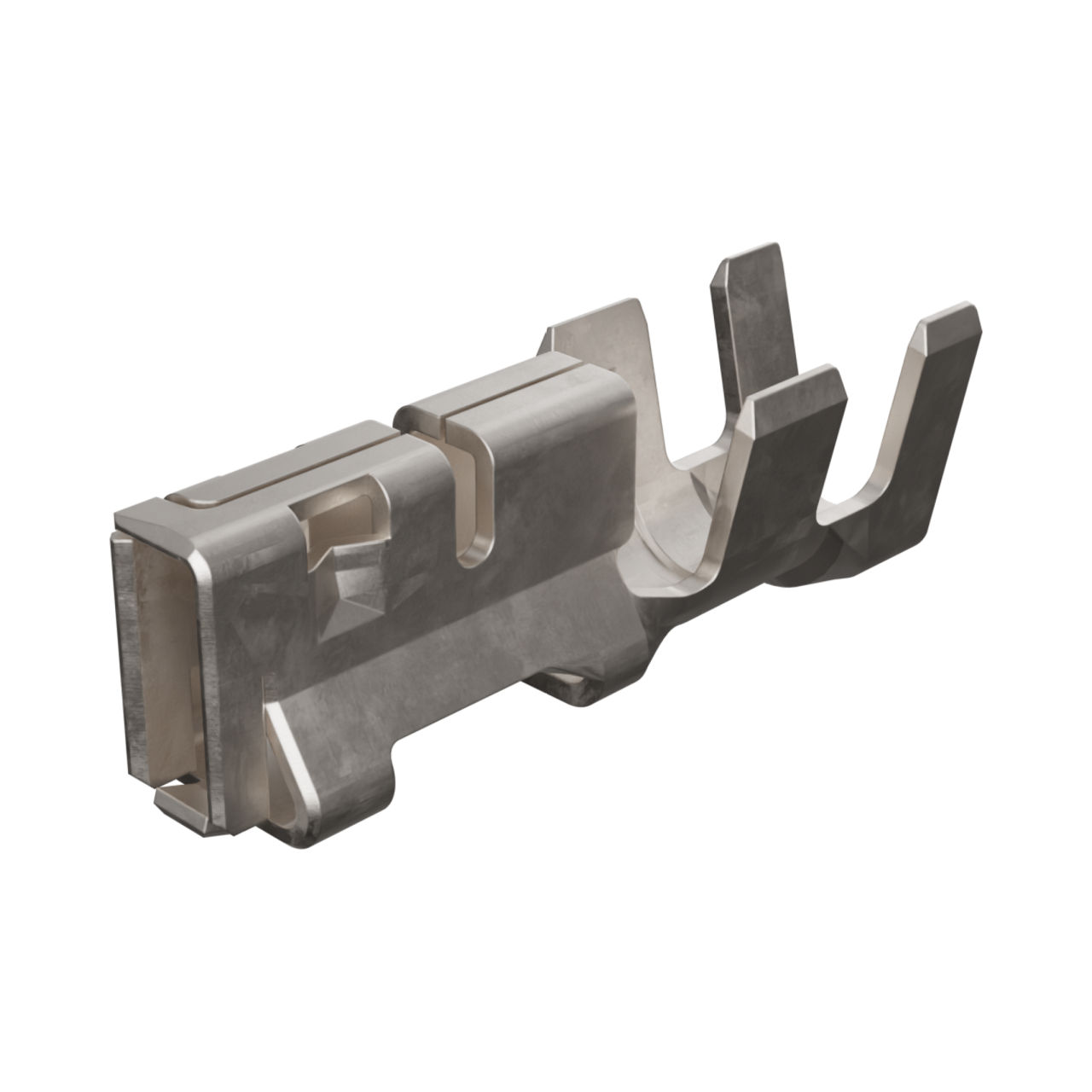

 | Molex 505153-8000 | DuraClik TPA Wire-to-Board Crimp Receptacle Terminal, Female, Tin Plating | |
