| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 55917-1010 |
| Color: | Natural |
| Series: | 55917 - MicroClasp |
| Amperage: | 3 A |
| Connector Type: | MicroClasp |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Through Hole |
| Body Orientation: | Straight |
| Pitch: | 2 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Orientation: | Vertical |
| Keying: | No |
| Tail Length: | 3.2 mm |
| Packaging: | Tray |
| Operating Temperature Range: | -25 - 85 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 10 |
| Mating Cycles: | 30 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Fully |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0559171010 |
| SKU: | MOL55917-1010 |
55917-1010
Specifications
Detailed Description
Introducing the 55917-1010, a high-performance 2mm pitch MicroClasp connector designed for reliable wire-to-board connections. With 10 contacts arranged in 2 rows, this straight through-hole connector ensures secure and efficient termination on your PCB. Rated for 3A and 250V, it guarantees robust power and signal transmission. Constructed with durable polyester and tin-plated contact mating area, it offers excellent conductivity and resilience. Featuring a vertical orientation and 3.2mm tail length, it is ideal for space-constrained applications. With UL agency certification and RoHS compliance, this connector meets stringent quality standards. Whether for industrial or consumer electronics, the 55917-1010 is the perfect choice for your PCB connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

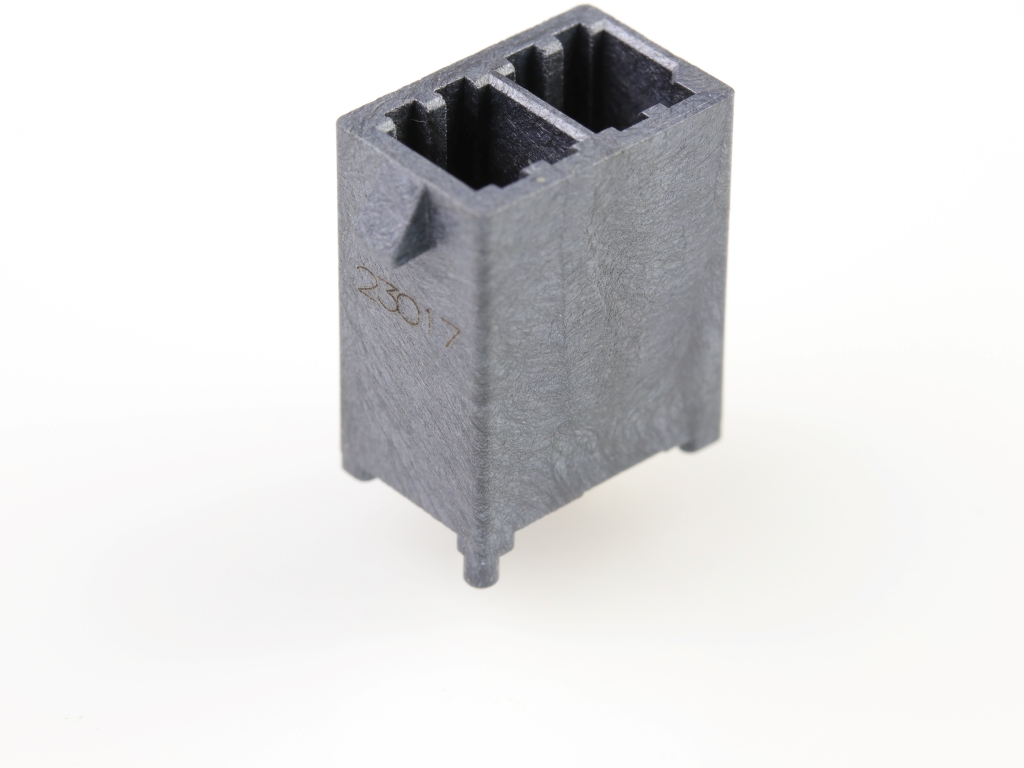

 | Molex 172065-0202 | Mega-Fit Slim Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 2 Circuits, 0.38 |  |
